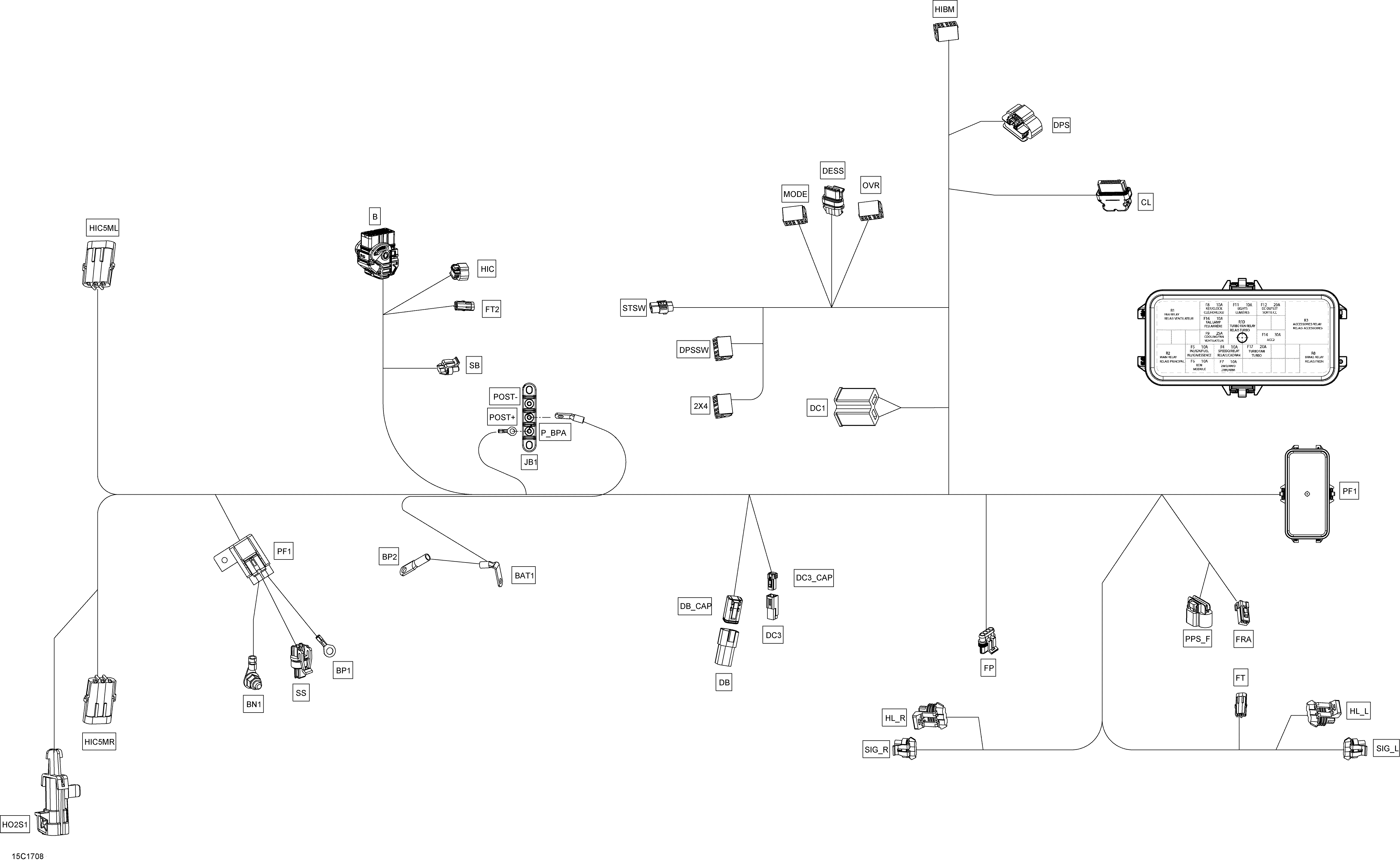

10- Main Harness 710005695 для BRP 4-Maverick X3 MAX - 2017
-
№АртикулНазвание
-
2X4710005695 Harness-Assy.. SHIFT-MAXHarness-Assy.. SHIFT-MAX
-
2X4710002000 HousingHousing
-
B710003047 TerminalTerminal
-
B710001591 CoverCover
-
B710001967 Molex Housing, 48 CircuitsMolex Housing, 48 Circuits
-
B710001592 PlugPlug
-
B710001593 PlugPlug
-
B710001589 Female TerminalFemale Terminal
-
B710001728 TerminalTerminal
-
BAT1710001727 Female TerminalFemale Terminal
-
BAT1710003266 Terminal 90°Terminal 90°
-
BN1710005488 Protector CapProtector Cap
-
BN1233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
BN1710000913 TerminalTerminal
-
BP1205461660 Socket Screw M6 X 16Socket Screw M6 X 16
-
BP2710000913 TerminalTerminal
-
CL710000495 Protector CapProtector Cap
-
CL515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CL515175802 Retainer BlockRetainer Block
-
CL515175812 PlugPlug
-
CL710000399 Female HousingFemale Housing
-
CL710000399 Female HousingFemale Housing
-
CL515175803 Wire SealWire Seal
-
D2710001131 Female TerminalFemale Terminal
-
DB409012700 DiodeDiode
-
DB278002896 Housing, 6 CircuitsHousing, 6 Circuits
-
DB515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
DB278001665 Female TerminalFemale Terminal
-
DB278000632 Female TerminalFemale Terminal
-
DB_CAP278001661 Female TerminalFemale Terminal
-
DC1710003006 HousingHousing
-
DC1710005373 HousingHousing
-
DC3710005077 TerminalTerminal
-
DC3515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC3_CAP515175231 Female TerminalFemale Terminal
-
DESS710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
DESS710001161 HousingHousing
-
DESS710001162 LockLock
-
DESS710001163 Wire SealWire Seal
-
DPS710001164 Female TerminalFemale Terminal
-
DPS710004989 Female HousingFemale Housing
-
DPS710005098 LockLock
-
DPS710001222 LockLock
-
DPS710002075 PlugPlug
-
DPS278002186 Wire SealWire Seal
-
DPS710003153 SealSeal
-
DPS278002187 Female TerminalFemale Terminal
-
DPSSW710001873 TerminalTerminal
-
DPSSW710002000 HousingHousing
-
F11710005491 Female TerminalFemale Terminal
-
F12710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F14710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
F16710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
FL-1710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
FL-2715002537 Fuse Wire 31-40AMPFuse Wire 31-40AMP
-
FP715002537 Fuse Wire 31-40AMPFuse Wire 31-40AMP
-
FP278002185 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
FP710001222 LockLock
-
FP278002186 Wire SealWire Seal
-
FP710003153 SealSeal
-
FP278002187 Female TerminalFemale Terminal
-
FRA710001873 TerminalTerminal
-
FRA515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FT710003896 Female TerminalFemale Terminal
-
FT710000992 ClipClip
-
FT278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FT278000218 Wire SealWire Seal
-
FT2409004300 Male TerminalMale Terminal
-
FT2409210100 ClipClip
-
FT2278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FT2278000218 Wire SealWire Seal
-
HIBM409004300 Male TerminalMale Terminal
-
HIBM710002000 HousingHousing
-
HIC710003047 TerminalTerminal
-
HIC710001928 HousingHousing
-
HIC710001222 LockLock
-
HIC710001225 CapCap
-
HIC710001233 SealSeal
-
HIC710001332 Seal WireSeal Wire
-
HIC710001229 TerminalTerminal
-
HIC5ML710001228 TerminalTerminal
-
HIC5ML710001343 ClipClip
-
HIC5ML278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
HIC5ML278001065 Wire SealWire Seal
-
HIC5MR278000222 Male TerminalMale Terminal
-
HIC5MR710001343 ClipClip
-
HIC5MR278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
HIC5MR278001065 Wire SealWire Seal
-
HL_L278000222 Male TerminalMale Terminal
-
HL_L710000645 HousingHousing
-
HL_L278001482 SealSeal
-
HL_R710001134 Female TerminalFemale Terminal
-
HL_R710000645 HousingHousing
-
HL_R278001482 SealSeal
-
HO2S1710001134 Female TerminalFemale Terminal
-
HO2S1710001343 ClipClip
-
HO2S1710002466 HousingHousing
-
HO2S1710002469 LockLock
-
HO2S1278001482 SealSeal
-
HO2S1710002597 Gold TerminalGold Terminal
-
JB-1710000736 TerminalTerminal
-
JB-1710004826 CoverCover
-
JB-1710004825 3-Positions Pole3-Positions Pole
-
MODE232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
MODE710002000 HousingHousing
-
MODE710003047 TerminalTerminal
-
OVR710005491 Female TerminalFemale Terminal
-
OVR710002000 HousingHousing
-
OVR710003047 TerminalTerminal
-
P_BPA710005491 Female TerminalFemale Terminal
-
PF1278000992 Open BarrelOpen Barrel
-
PF1710001026 Fuse CoverFuse Cover
-
PF1710005308 Decal Fuse RelayDecal Fuse Relay
-
PF1278002172 FoamFoam
-
PF1415129856 Fuse Box Base Ass?yFuse Box Base Ass?y
-
PF1710000840 CapCap
-
PF1278000999 Wire SealWire Seal
-
PF1415128501 SealSeal
-
PF1710005492 TerminalTerminal
-
PF1710000836 Female TerminalFemale Terminal
-
PF1710000837 Female TerminalFemale Terminal
-
PF1-F4710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
PF1-F5710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1-F6710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1-F7710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1-F8710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1-F9710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1-R1710002590 Fuse, 25 AmpsFuse, 25 Amps
-
PF1-R10515176774 Relay, 30 AMPRelay, 30 AMP
-
PF1-R2710001778 RelayRelay
-
PF1-R3710001778 RelayRelay
-
PF1-R8515176775 Relay, 50 AMPRelay, 50 AMP
-
PF2710001778 RelayRelay
-
PF2278001326 Fuse Holder CapFuse Holder Cap
-
PF2278001325 Fuse HolderFuse Holder
-
PF2-F2710000113 Female TerminalFemale Terminal
-
POST+710001613 FuseFuse
-
PPS_F710001232 HousingHousing
-
PPS_F710001222 LockLock
-
PPS_F710001233 SealSeal
-
SB710001229 TerminalTerminal
-
SB710002177 HousingHousing
-
SB710002043 LockLock
-
SB278001482 SealSeal
-
SIG_L710001134 Female TerminalFemale Terminal
-
SIG_L710005321 Female HousingFemale Housing
-
SIG_L278001482 SealSeal
-
SIG_L710001134 Female TerminalFemale Terminal
-
SIG_R710005321 Female HousingFemale Housing
-
SIG_R278001482 SealSeal
-
SIG_R710001134 Female TerminalFemale Terminal
-
SIG_R710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
SPARE1710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
SPARE2710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
SPARE3710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
SPARE4710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
SPARE5710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
SPARE6515177192 Female HousingFemale Housing
-
SS710001163 Wire SealWire Seal
-
SS710001164 Female TerminalFemale Terminal
-
STSW710000402 Wire SealWire Seal
-
STSW409012100 Female TerminalFemale Terminal
