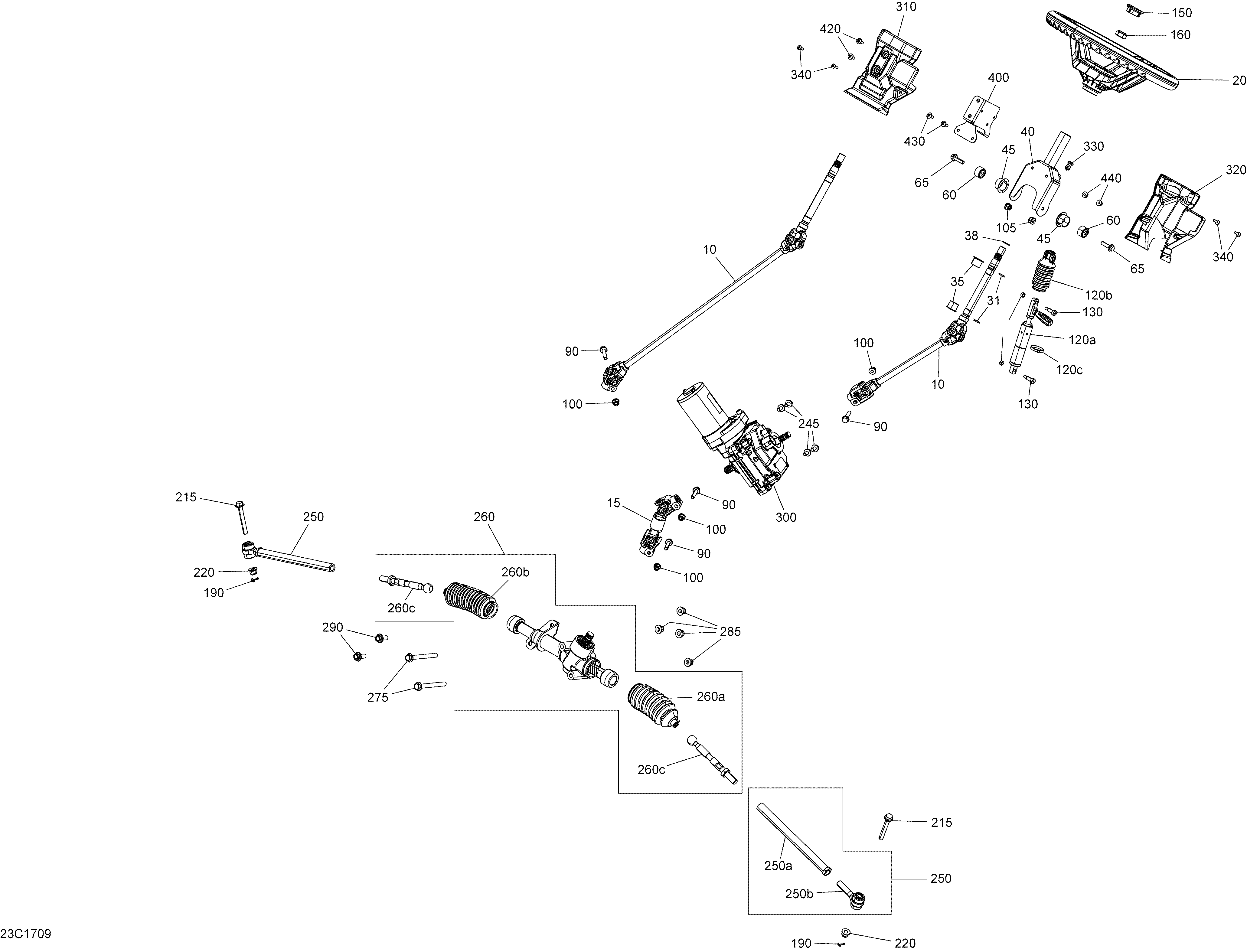

07- Steering - All Models для BRP Defender T - 2017
-
№АртикулНазвание
-
10709401439 Steering shaft Ass'y. STD PackageSteering shaft Ass'y. STD Package
-
10709401440 Steering shaft Ass'y. PRO PackageSteering shaft Ass'y. PRO Package
-
15709401519 Lower Steering shaft. PRO PackageLower Steering shaft. PRO Package
-
20709401513 Steering WheelSteering Wheel
-
31293300144 O-RingO-Ring
-
35709401733 BushingBushing
-
38293370110 CirclipCirclip
-
40709401602 Steering SupportSteering Support
-
45709401603 BushingBushing
-
60709401604 BushingBushing
-
65207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
90207583586 Hex. Flanged Screw M8 X 35, Scotch Grip. STD PackageHex. Flanged Screw M8 X 35, Scotch Grip. STD Package
-
90207583586 Hex. Flanged Screw M8 X 35, Scotch Grip. PRO PackageHex. Flanged Screw M8 X 35, Scotch Grip. PRO Package
-
100233281416 Hex. Elastic Flanged Nut M8. STD PackageHex. Elastic Flanged Nut M8. STD Package
-
100233281416 Hex. Elastic Flanged Nut M8. PRO PackageHex. Elastic Flanged Nut M8. PRO Package
-
105233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
120a709400656 Adjustment CylinderAdjustment Cylinder
-
120b709401232 Boot Kit, Tube SideBoot Kit, Tube Side
-
120c414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
130250000669 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
140232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
150709401514 Steering CapSteering Cap
-
160232511414 Elastic Lock Nut M16Elastic Lock Nut M16
-
190211400017 Cotter PinCotter Pin
-
215250000814 Screw Hex Cap M10 X 75Screw Hex Cap M10 X 75
-
220233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
245207581644 Hex. Flanged Screw M8 X 16, Scotch Grip. PRO PackageHex. Flanged Screw M8 X 16, Scotch Grip. PRO Package
-
250>250b709401627 Tie Rod Ass'y. Includes 250 to 250bTie Rod Ass'y. Includes 250 to 250b
-
250a715900238 Steering Rode NutSteering Rode Nut
-
250B709401601 Ball JointBall Joint
-
260>260c709401509 Rack And Pinion. Includes 260 to 260cRack And Pinion. Includes 260 to 260c
-
260a715900235 Boot Kit, Pinion SideBoot Kit, Pinion Side
-
260b715900236 Boot Kit, Tube SideBoot Kit, Tube Side
-
260c715900238 Steering Rode NutSteering Rode Nut
-
275230500046 Hex. Screw M10 X 100, Scotch GripHex. Screw M10 X 100, Scotch Grip
-
285233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
290207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
300709401921 Power Steering Ass'y. PRO PackagePower Steering Ass'y. PRO Package
-
310709402012 Steering Box CoverSteering Box Cover
-
320709402013 Steering Box CoverSteering Box Cover
-
330293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
340250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
400709401962 Flasher Arm SupportFlasher Arm Support
-
420250000721 Torx ScrewTorx Screw
-
430250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
440233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
