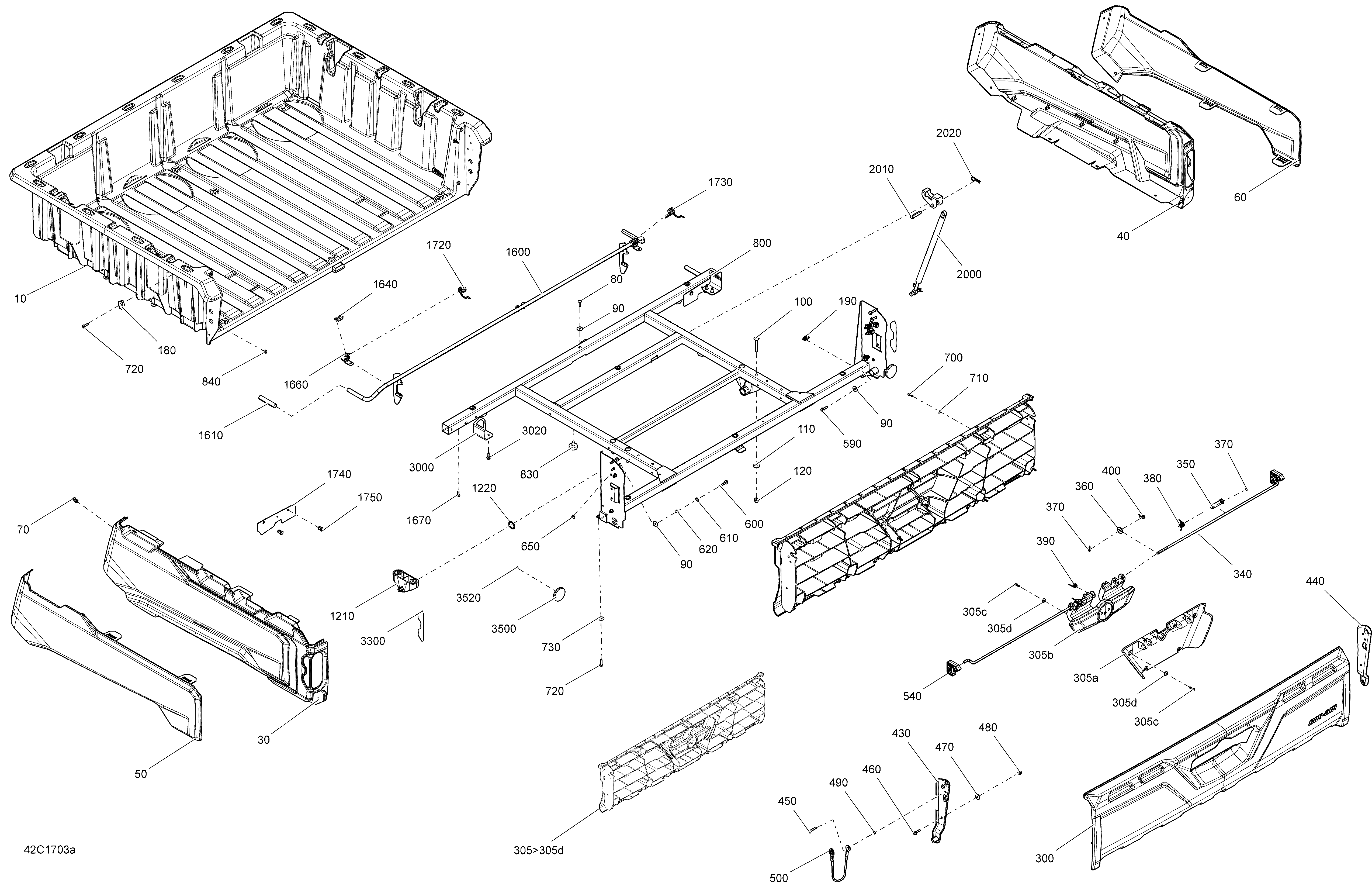

09- Rear Cargo Box - All Models для BRP Defender MAX - 2017
-
№АртикулНазвание
-
10715004030 Inside Cargo Box KitInside Cargo Box Kit
-
30708301465 LH Outside PanelLH Outside Panel
-
40708301466 RH Outside PanelRH Outside Panel
-
50708301929 Camo LH Fascia Cargo Box. Package XTCamo LH Fascia Cargo Box. Package XT
-
50708302287 Box Trim LH Pure Magnesium. Package XTBox Trim LH Pure Magnesium. Package XT
-
50708302289 Box Trim LH Intense Red. Package XTBox Trim LH Intense Red. Package XT
-
60708301930 Camo RH Fascia Cargo Box. Package XTCamo RH Fascia Cargo Box. Package XT
-
60708302288 Box Trim RH Pure Magnesium. Package XTBox Trim RH Pure Magnesium. Package XT
-
60708302290 Box Trim RH Intense Red. Package XTBox Trim RH Intense Red. Package XT
-
70293150089 Tuflok Plastic Rivet. Package XTTuflok Plastic Rivet. Package XT
-
80250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
90250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
100207786044 Carriage Bolt M8 X 60Carriage Bolt M8 X 60
-
110234082410 Flat Washer 8 mmFlat Washer 8 mm
-
120233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
180250100177 Panel nut M6Panel nut M6
-
190250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
300708301227 Outside TailgateOutside Tailgate
-
305>305d708302213 Tailgate Ass'y. Includes 305 to 305dTailgate Ass'y. Includes 305 to 305d
-
305a708301503 SupportSupport
-
305b708301350 HandleHandle
-
305c250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
305d250200025 Washer M5Washer M5
-
340708301500 Handle RodHandle Rod
-
350708301634 Pivot bushingPivot bushing
-
360708301653 WasherWasher
-
370269800431 HairpinHairpin
-
380705009468 SpringSpring
-
390705009470 SpringSpring
-
400705009471 SpringSpring
-
430708301647 LH Tailgate SupportLH Tailgate Support
-
440708301649 RH Tailgate SupportRH Tailgate Support
-
450207663554 Screw Hex Flange M6 X 35Screw Hex Flange M6 X 35
-
460207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
470250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
480233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
490293900101 BushingBushing
-
500708301491 CableCable
-
540708301501 LockLock
-
590207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
600207663554 Screw Hex Flange M6 X 35Screw Hex Flange M6 X 35
-
610224061121 Flat WasherFlat Washer
-
620293900101 BushingBushing
-
650233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
700250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
710250200025 Washer M5Washer M5
-
720250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
730250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
800708302385 Cargo Box SupportCargo Box Support
-
830708001827 Rubber StopperRubber Stopper
-
840293830005 Rubber BumperRubber Bumper
-
1210708301576 Pivot BracketPivot Bracket
-
1220293300131 O-RingO-Ring
-
1600708302296 Latch Ass'yLatch Ass'y
-
1610708300358 Cap Latch LeverCap Latch Lever
-
1640705500033 Half RingHalf Ring
-
1660708301479 Clamp RetainerClamp Retainer
-
1670210261640 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
1720708301983 SpringSpring
-
1730708301984 SpringSpring
-
1740708302267 DeflectorDeflector
-
1750293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2000708301461 ShockShock
-
2010250400075 Clevis PinClevis Pin
-
2020414575600 Hair PinHair Pin
-
3000708301480 Retaining PlateRetaining Plate
-
3020207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3300704905074 ReflectorReflector
-
3500705011221 Red ReflectorRed Reflector
-
3520232551414 Elastic Stop Nut M5Elastic Stop Nut M5
