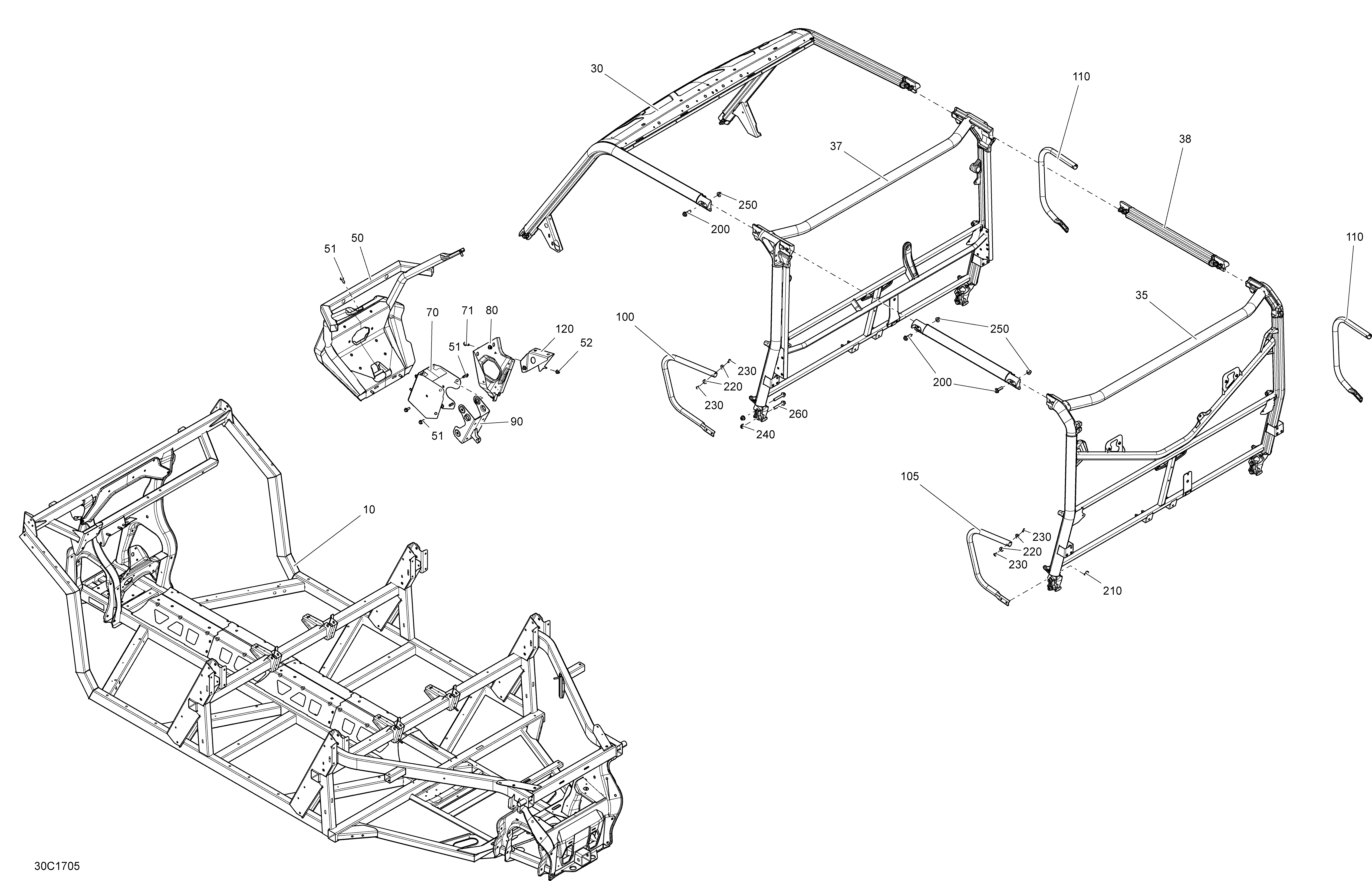

09- Frame - All Models для BRP Defender MAX - 2017
-
№АртикулНазвание
-
10715003764 Black Frame KitBlack Frame Kit
-
30715003560 Front Cage Profile KitFront Cage Profile Kit
-
35715003569 Rear Cage Profile KitRear Cage Profile Kit
-
37715003770 Mid Cage Kit MAXMid Cage Kit MAX
-
38705205401 Cage Extension MAXCage Extension MAX
-
50705203999 Front BumperFront Bumper
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705204228 Brake Module SupportBrake Module Support
-
71207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
80715003570 DPS SupportDPS Support
-
90705204429 Steering SupportSteering Support
-
100705204594 LH Protector TubeLH Protector Tube
-
105705204590 Side Protect LHSide Protect LH
-
110705204592 RH Protector TubeRH Protector Tube
-
120705205171 Shifting Module SupportShifting Module Support
-
200250000855 Hex. Flanged Screw M10 X 35Hex. Flanged Screw M10 X 35
-
210207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
220705202223 Offset WasherOffset Washer
-
230250000789 Torx Truss M6X14Torx Truss M6X14
-
240233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
250233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
260207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
