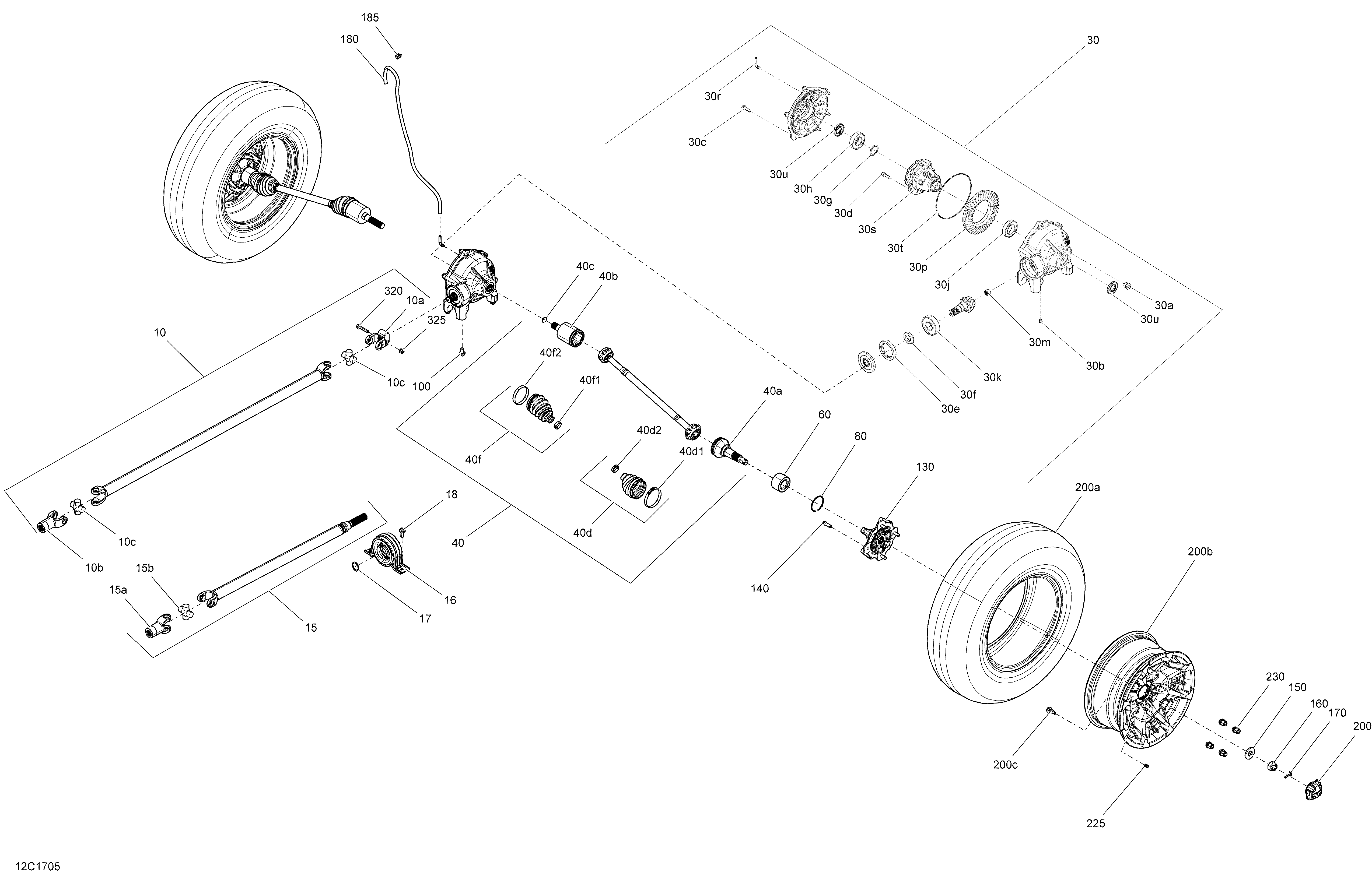

07- Drive System, Front для BRP Defender HD5 - 2017
-
№АртикулНазвание
-
10705402126 Drive Axle Ass'yDrive Axle Ass'y
-
30>30w705401884 Front Differential Ass'y. DPS PackageFront Differential Ass'y. DPS Package
-
30>30w705401885 Front Differential Ass'y. Base Package. Includes 30 to 30wFront Differential Ass'y. Base Package. Includes 30 to 30w
-
30a705501889 Fill Level PlugFill Level Plug
-
30b705501885 Drain PlugDrain Plug
-
30c705501886 ScrewScrew
-
30d705401818 ScrewScrew
-
30e705401819 NutNut
-
30f705401820 NutNut
-
30g705401604 ShimShim
-
30h705401606 Ball BearingBall Bearing
-
30j705401934 Ball BearingBall Bearing
-
30k705401821 Ball BearingBall Bearing
-
30m705401607 Needle BearingNeedle Bearing
-
30n705401667 Front CoverFront Cover
-
30p705401822 36Th Gear36Th Gear
-
30q705401933 Pinion 10 th.Pinion 10 th.
-
30r705401935 Vent ValveVent Valve
-
30s705401887 Differential. Base PackageDifferential. Base Package
-
30t705401886 Differential. DPS PackageDifferential. DPS Package
-
30u705501881 Oil SealOil Seal
-
30v705401836 Oil SealOil Seal
-
30w705401827 Oil SealOil Seal
-
40>40f2705401936 CV Joint RH. Includes 40 to 40f2CV Joint RH. Includes 40 to 40f2
-
40>40f2705401937 CV Joint LH. Includes 40 to 40f2CV Joint LH. Includes 40 to 40f2
-
40a715900440 CV JointCV Joint
-
40b715900441 Plunging Joint RHPlunging Joint RH
-
40b715900442 Plunging Joint LHPlunging Joint LH
-
40c705401349 Circlip JointCirclip Joint
-
40d705401345 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
40d1715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
40d2715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
40f705401355 Boot Kit, Differential SideBoot Kit, Differential Side
-
40f1715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
40f2715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
60293350118 Cone BearingCone Bearing
-
80293370019 CirclipCirclip
-
100207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
130705502338 Wheel HubWheel Hub
-
140250300055 Wheel Stud M10 X 1.25Wheel Stud M10 X 1.25
-
150250200147 Washer M20Washer M20
-
160250100161 Castle Nut M20Castle Nut M20
-
170250400071 Cotter PinCotter Pin
-
180a415080200 Hose, PolyurethaneHose, Polyurethane
-
185414227300 ClipClip
-
200705400928 Wheel Cap. DPS PackageWheel Cap. DPS Package
-
210a705401915 Front TireFront Tire
-
210b705401217 Black Front Rim. Base PackageBlack Front Rim. Base Package
-
210b705401638 Front Rim. DPS Package, Breakup Country CamoFront Rim. DPS Package, Breakup Country Camo
-
210b705401894 Front Rim. DPS Package, Squadron GreenFront Rim. DPS Package, Squadron Green
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
225293000110 Valve CapValve Cap
-
230250100042 Steel Wheel Nut. Base PackageSteel Wheel Nut. Base Package
-
230250100184 Black Wheel Nut M10 X 1.25. DPS Package, Breakup Country CamoBlack Wheel Nut M10 X 1.25. DPS Package, Breakup Country Camo
-
230250100185 Chrome Wheel Nut M10 X 1.25. DPS Package, Squadron GreenChrome Wheel Nut M10 X 1.25. DPS Package, Squadron Green
-
320250000952 Hex. Flanged Screw M8 X 42Hex. Flanged Screw M8 X 42
-
325233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
