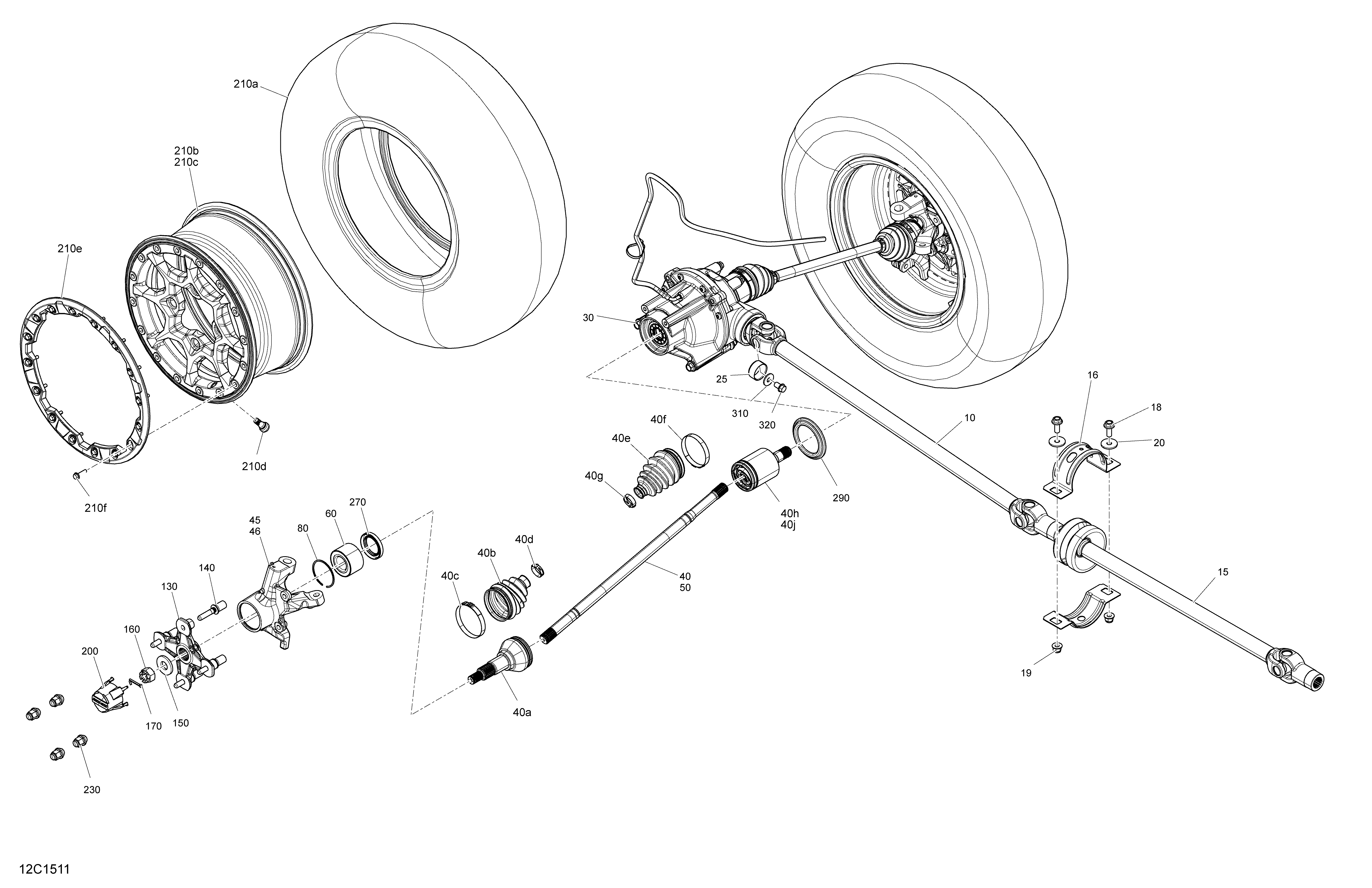

07- Drive System, Front _12C1511a для BRP Maverick MAX 1000_XDS-DPS - 2015
-
№АртикулНазвание
-
10705402068 Drive Shaft AssemblyDrive Shaft Assembly
-
15705402041 Drive Axle Ass'y . MAV-MAXDrive Axle Ass'y . MAV-MAX
-
16705401646 Ball Bearing. MAV-MAXBall Bearing. MAV-MAX
-
18207602544 Hex. Flanged Screw M10 X 25. MAV-MAXHex. Flanged Screw M10 X 25. MAV-MAX
-
19233201414 Hex. Flanged Elastic Nut M10. MAV-MAXHex. Flanged Elastic Nut M10. MAV-MAX
-
20503032900 Washer. MAV-MAXWasher. MAV-MAX
-
25705400036 Wear RingWear Ring
-
30703500907 Front Differential. P-XDS. XDSFront Differential. P-XDS. XDS
-
30703500908 Front Differential. P-XDSDPS. XDS_DPSFront Differential. P-XDSDPS. XDS_DPS
-
40705401874 CV Joint RHCV Joint RH
-
45705401548 LH Front KnuckleLH Front Knuckle
-
46705401549 RH Front KnuckleRH Front Knuckle
-
50705401873 CV Joint LHCV Joint LH
-
60293350040 Cone BearingCone Bearing
-
80293370019 CirclipCirclip
-
130705501900 Wheel HubWheel Hub
-
140250300060 Wheel StudWheel Stud
-
150250200049 Spring WasherSpring Washer
-
160232291413 Hex. Flanged Castellated Nut M18Hex. Flanged Castellated Nut M18
-
170250400036 Cotter PinCotter Pin
-
200705400928 Wheel CapWheel Cap
-
230250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
270293250246 O-RingO-Ring
-
290705400780 Wear SleeveWear Sleeve
-
310250200014 Flat Washer M10Flat Washer M10
-
320250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
210a705401592 Front Tire. C/U_INTFront Tire. C/U_INT
-
210a705401046 Front Tire. EUR. Model-EuropeFront Tire. EUR. Model-Europe
-
210b705401594 Black Rim. C/U_INTBlack Rim. C/U_INT
-
210b705401417 Black Rim. EUR. Model-EuropeBlack Rim. EUR. Model-Europe
-
210c293450317 Insert. Not ShownInsert. Not Shown
-
210d705400193 Rim Valve With CapRim Valve With Cap
-
210e705401586 Manta Green Painted Reinforcement DiskManta Green Painted Reinforcement Disk
-
210f250000787 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
40a705401344 CV JointCV Joint
-
40b705401345 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
40c715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
40d715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
40e705401346 Boot Kit, Differential SideBoot Kit, Differential Side
-
40f715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
40g715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
40h705401348 RH Plunging JointRH Plunging Joint
-
40j705401349 Circlip JointCirclip Joint
