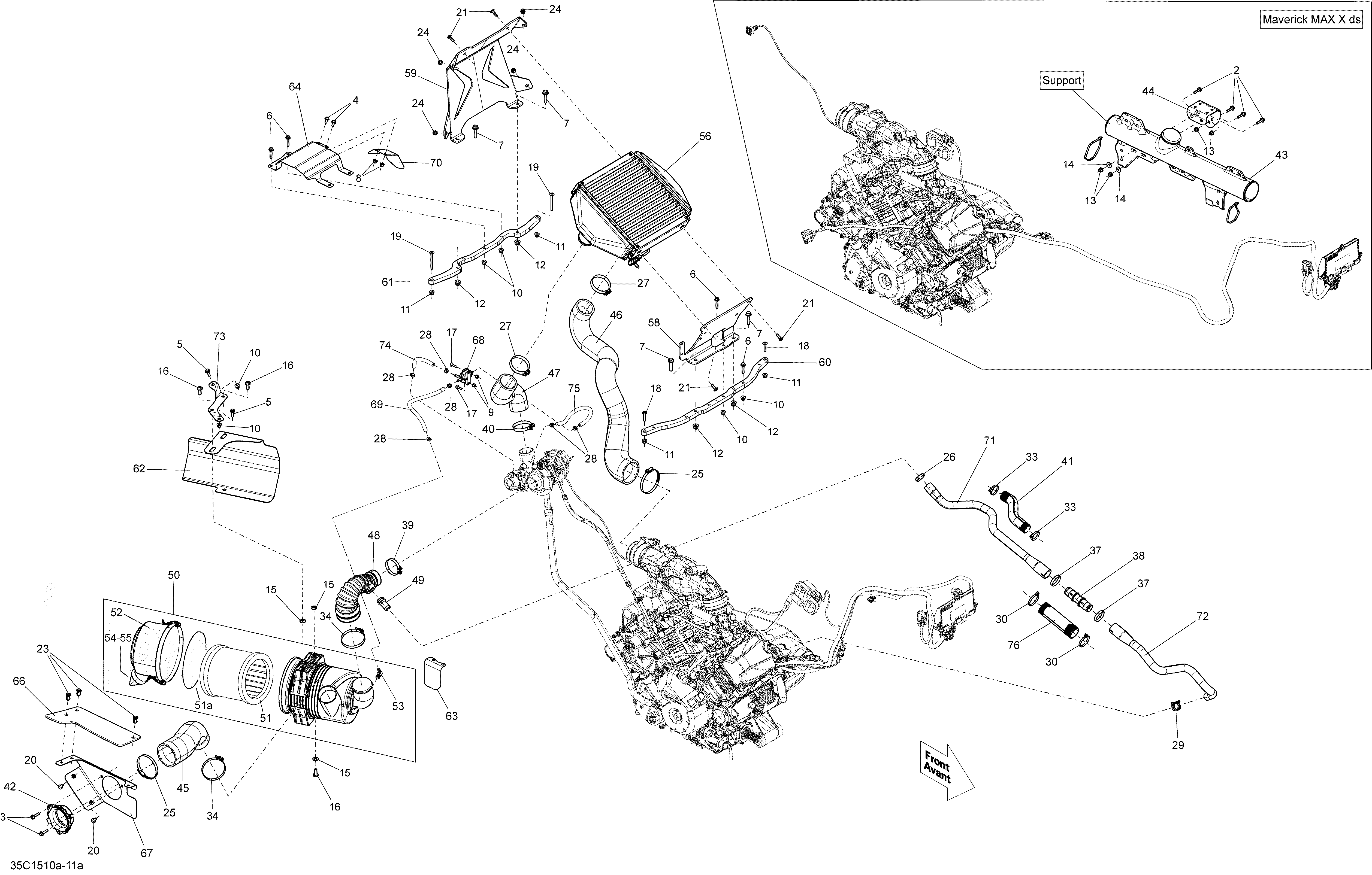

02- Air Intake _Turbo_35C1511a для BRP Maverick MAX 1000_XDS-DPS - 2015
-
№АртикулНазвание
-
2207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
3207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
4207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
5207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
7207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
8233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
9233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
12233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
14234062410 Flat Washer 6 mmFlat Washer 6 mm
-
15234281474 Conical Spring Washer M8Conical Spring Washer M8
-
16236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
17250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
18250000371 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
19250000648 Torx Screw M6 X 60Torx Screw M6 X 60
-
20250000721 Torx ScrewTorx Screw
-
21250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
23293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
24293450278 InsertInsert
-
25293650091 Norma ClampNorma Clamp
-
26293650099 Crimp ClampCrimp Clamp
-
27293650118 Norma Gear ClampNorma Gear Clamp
-
28293650044 Oetiker ClampOetiker Clamp
-
29293650213 Norma Spring ClampNorma Spring Clamp
-
30293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
33293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
34508000346 Gemi ClampGemi Clamp
-
37509000181 Oetiker Gear ClampOetiker Gear Clamp
-
38509000914 FittingFitting
-
39293650090 Norma Gear ClampNorma Gear Clamp
-
40293650090 Norma Gear ClampNorma Gear Clamp
-
41409902200 Tubing 25 mmTubing 25 mm
-
42707001171 CVT Filter BaseCVT Filter Base
-
43707800515 Intake AdaptorIntake Adaptor
-
44707800560 Rear SupportRear Support
-
45707800605 Air IntakeAir Intake
-
46707800608 Air IntakeAir Intake
-
47707800607 Air IntakeAir Intake
-
48707800611 Air Intake. Includes 48 to 49Air Intake. Includes 48 to 49
-
49273000234 BreatherBreather
-
50707800612 Air Silencer Ass'y. Includes 50 to 54Air Silencer Ass'y. Includes 50 to 54
-
51715900356 Air Filter Kit. Include 51aAir Filter Kit. Include 51a
-
51a715900355 Cover O-RingCover O-Ring
-
52715900343 Cover. Include 51aCover. Include 51a
-
53715900344 Elbow Fitting KitElbow Fitting Kit
-
54715900354 Cover CapCover Cap
-
55715900353 Cover Valve. OptionalCover Valve. Optional
-
56707800613 IntercoolerIntercooler
-
58707800621 Front SupportFront Support
-
59707800622 Rear SupportRear Support
-
60707800623 Front SupportFront Support
-
61707800624 Rear SupportRear Support
-
62707800625 DeflectorDeflector
-
63707800626 DeflectorDeflector
-
64707800628 DeflectorDeflector
-
66707800630 CoverCover
-
67707800631 SupportSupport
-
68707800632 Three-Way Electric ValveThree-Way Electric Valve
-
69707001799 LineLine
-
70707800643 DeflectorDeflector
-
71707800645 HoseHose
-
72707800646 HoseHose
-
73707800653 SupportSupport
-
74707001799 LineLine
-
75707001799 LineLine
-
76515176260 Tubing 35 mmTubing 35 mm
