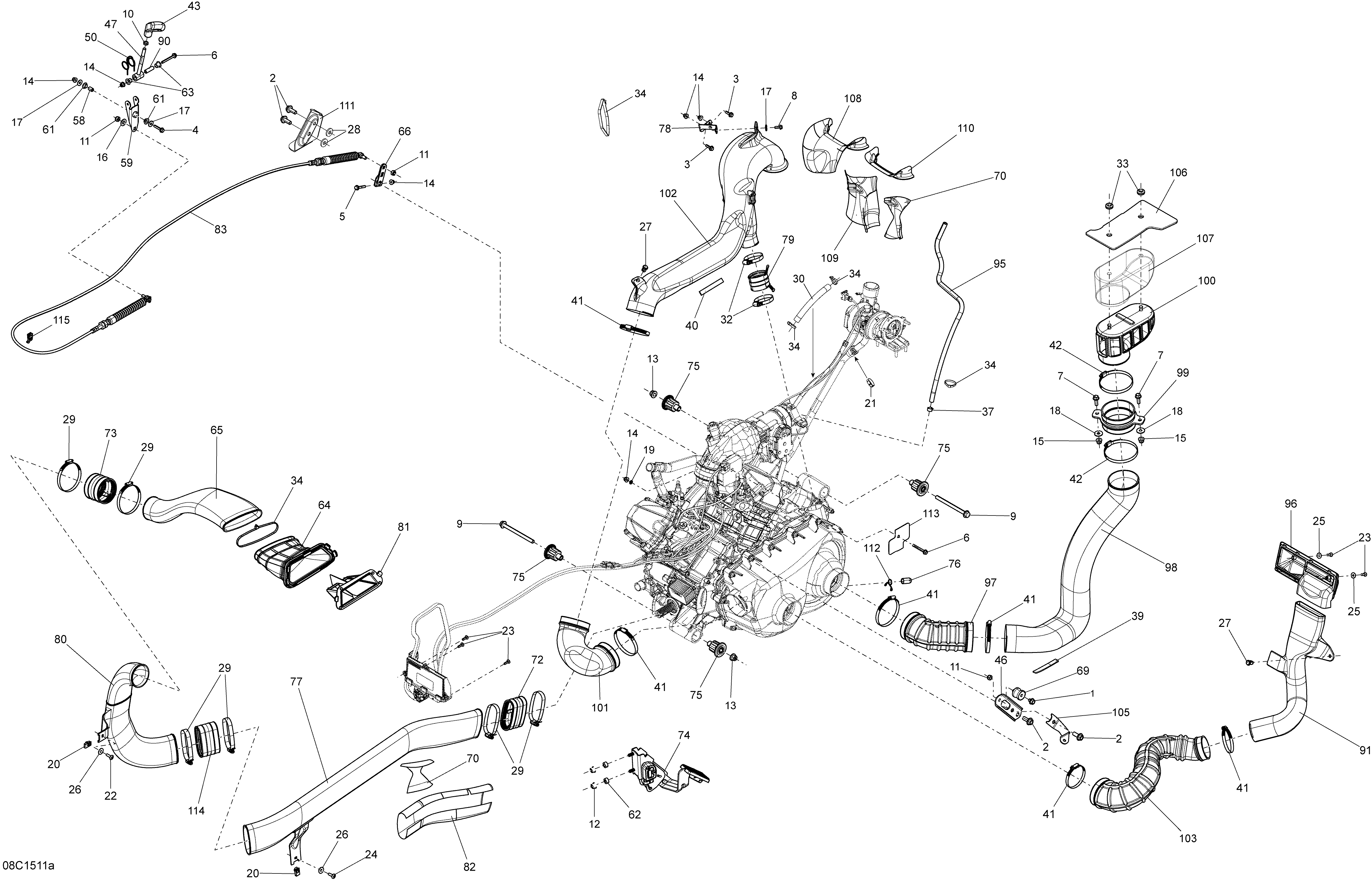

01- Engine _Turbo_08C1511a для BRP Maverick MAX 1000_XDS-DPS - 2015
-
№АртикулНазвание
-
1207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
2207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
5207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
6207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
9230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
10232180491 Hex. Jam Nut M8Hex. Jam Nut M8
-
11232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
12233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
13233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
16234001410 Flat Washer 10 mmFlat Washer 10 mm
-
17234062410 Flat Washer 6 mmFlat Washer 6 mm
-
18234082410 Flat Washer 8 mmFlat Washer 8 mm
-
19234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
20250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
21509000442 Oetiker Gear ClampOetiker Gear Clamp
-
22250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
23250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
24250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
25250200025 Washer M5Washer M5
-
26250200082 Flat WasherFlat Washer
-
27293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
28503190439 WasherWasher
-
29293650091 Norma ClampNorma Clamp
-
30415080000 Tubing 16 mmTubing 16 mm
-
32293650118 Norma Gear ClampNorma Gear Clamp
-
33293720053 GrommetGrommet
-
34293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
37414415200 Spring ClampSpring Clamp
-
39293250087 Gasket, NeopreneGasket, Neoprene
-
40293250087 Gasket, NeopreneGasket, Neoprene
-
41514052924 Norma ClampNorma Clamp
-
42514052983 Norma Gear ClampNorma Gear Clamp
-
43707000284 Lever HandleLever Handle
-
46707000707 Upper Engine BracketUpper Engine Bracket
-
47707000711 Upper Lever ArmUpper Lever Arm
-
50707000750 Lever Arm SpringLever Arm Spring
-
58707000801 BushingBushing
-
59707000828 Lower Lever ArmLower Lever Arm
-
61707000847 Flanged BushingFlanged Bushing
-
62707000848 BushingBushing
-
63707000869 Flanged BushingFlanged Bushing
-
64707000908 AdaptorAdaptor
-
65707000909 Primary Air IntakePrimary Air Intake
-
66707000911 LeverLever
-
69707000949 Rubber IsolatorRubber Isolator
-
70707000991 Reflective SheetReflective Sheet
-
72707001467 Flexible AdaptorFlexible Adaptor
-
73707001467 Flexible AdaptorFlexible Adaptor
-
74707001166 Accelerator PedalAccelerator Pedal
-
75707001170 DamperDamper
-
76707001185 PlugPlug
-
77707001228 Air InletAir Inlet
-
78707001232 Rear SupportRear Support
-
79707001274 AdaptorAdaptor
-
80707001339 Air InletAir Inlet
-
81707001344 CVT FilterCVT Filter
-
82707001346 ReflectorReflector
-
83707001348 Shifting CableShifting Cable
-
90707001376 BushingBushing
-
91707001401 Air InletAir Inlet
-
95415079800 Hose 1/4''Hose 1/4''
-
96707001422 FilterFilter
-
97707001727 Air InletAir Inlet
-
98707001728 Air InletAir Inlet
-
99707001729 Air InletAir Inlet
-
100707001730 Air InletAir Inlet
-
101707001732 CVT OutletCVT Outlet
-
102707001733 CVT OutletCVT Outlet
-
103707001734 HoseHose
-
105707001735 Front SupportFront Support
-
106707001741 CoverCover
-
107707001742 CVT FilterCVT Filter
-
108707001745 Reflective SheetReflective Sheet
-
109707001746 Reflective SheetReflective Sheet
-
110707001752 Reflective SheetReflective Sheet
-
111707000919 Cable SupportCable Support
-
112707800506 Retainer ClipRetainer Clip
-
113710000073 Insulator PadInsulator Pad
-
114707001467 Flexible AdaptorFlexible Adaptor
-
115710002899 Clip Tie-RapClip Tie-Rap
