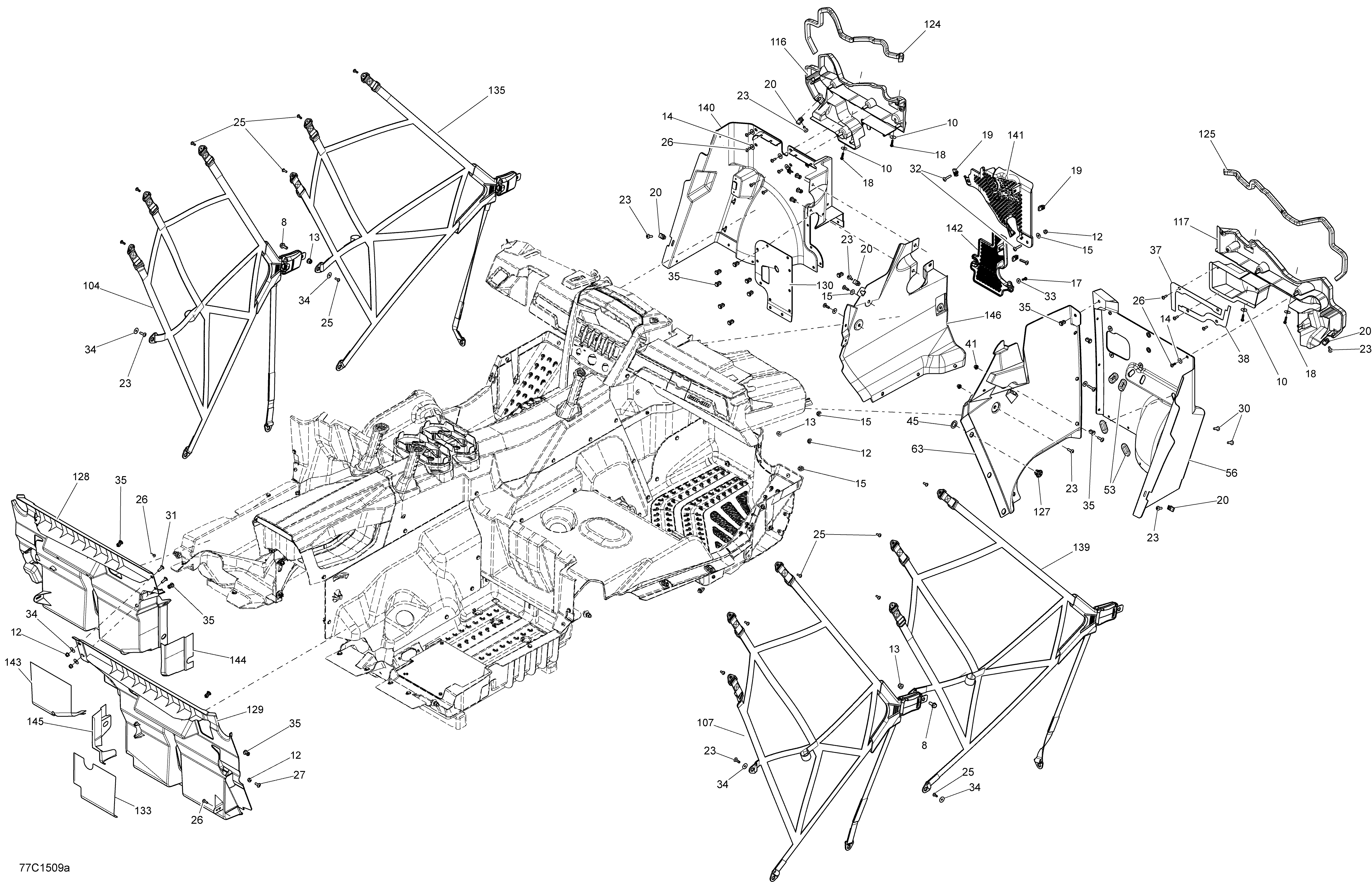

09- Cab Interior Front And Rear_77C1509a для BRP Maverick MAX 1000_STD_XRS-DPS - 2015
-
№АртикулНазвание
-
8207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
10224060201 Flat WasherFlat Washer
-
12233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14234062410 Flat Washer 6 mmFlat Washer 6 mm
-
15234062670 Flat WasherFlat Washer
-
17241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
18241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
19250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
20250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
23250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
25250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
26250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
27241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
30250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
31250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
32250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
33250200025 Washer M5Washer M5
-
34250200040 Flat WasherFlat Washer
-
35293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
37293250252 Upper SealUpper Seal
-
38293250253 Bottom SealBottom Seal
-
41293450274 InsertInsert
-
45503189273 WasherWasher
-
53705003668 Oblong GrommetOblong Grommet
-
56707900004 RH Front FloorRH Front Floor
-
63707900021 RH Fixe Side ConsoleRH Fixe Side Console
-
104707900086 LH Rear Safety Net. Upper Link 707900049LH Rear Safety Net. Upper Link 707900049
-
107707900087 RH Rear Safety Net. Upper Link 707900049RH Rear Safety Net. Upper Link 707900049
-
116707900113 LH Floor SupportLH Floor Support
-
117707900114 RH Floor SupportRH Floor Support
-
124293200093 Neoprene SealNeoprene Seal
-
125293200093 Neoprene SealNeoprene Seal
-
127707900133 InsertInsert
-
128707900220 LH Rear DeflectorLH Rear Deflector
-
129707900219 RH Rear DeflectorRH Rear Deflector
-
130707900152 DeflectorDeflector
-
133707900167 Heat ShieldHeat Shield
-
135707900171 LH Safety NetLH Safety Net
-
139707900172 RH Safety NetRH Safety Net
-
140707900175 LH Front Upper FloorLH Front Upper Floor
-
141707900178 GrillGrill
-
142707900180 GrillGrill
-
143707900182 Heat ShieldHeat Shield
-
144707900183 Heat ShieldHeat Shield
-
145707900184 Heat ShieldHeat Shield
-
146707900193 Front Side Dash PanelFront Side Dash Panel
