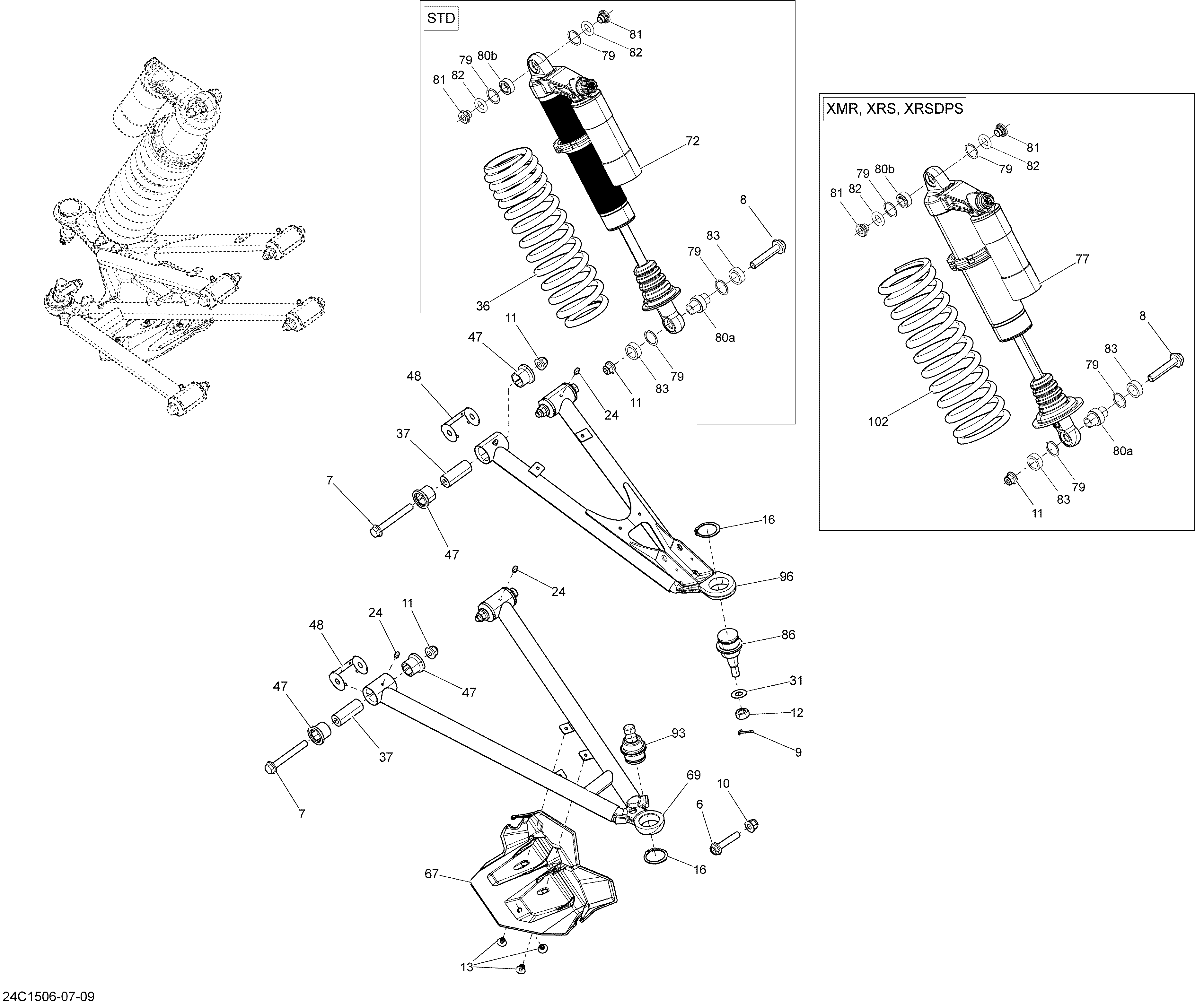

07- Front Suspension _24C1509 для BRP Maverick MAX 1000_STD_XRS-DPS - 2015
-
№АртикулНазвание
-
6207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
7207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
8207626046 Hex. Flanged Screw M12 X 60Hex. Flanged Screw M12 X 60
-
9211400017 Cotter PinCotter Pin
-
10233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
11233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
12250100099 Nut M12Nut M12
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
16293370035 CirclipCirclip
-
24408200700 Grease FittingGrease Fitting
-
31250200086 Flat WasherFlat Washer
-
36706201707 Yellow Front Spring. Package-STDYellow Front Spring. Package-STD
-
37706201590 SleeveSleeve
-
47706201659 CushionCushion
-
48706201660 Wear PlateWear Plate
-
67706201829 LH Joint ProtectorLH Joint Protector
-
67706201830 RH Joint ProtectorRH Joint Protector
-
69706201861 LH Front Lower ArmLH Front Lower Arm
-
69706201862 RH Front Lower ArmRH Front Lower Arm
-
72706202251 Front Shock. Package-STDFront Shock. Package-STD
-
77706202250 Front Shock. Package-XRSDPSFront Shock. Package-XRSDPS
-
79715900252 Retaining RingRetaining Ring
-
80a715900330 Spherical BearingSpherical Bearing
-
80b715900266 Spherical BearingSpherical Bearing
-
81715900267 Interior BushingInterior Bushing
-
82715900268 O-Ring BushingO-Ring Bushing
-
83715900331 ProtectorProtector
-
86706202044 Ball JointBall Joint
-
93706202045 Ball JointBall Joint
-
96706202086 Black Front Upper Arm. Package-STDBlack Front Upper Arm. Package-STD
-
96706202090 Yellow Front Upper Arm. Package-XRSDPS BlackYellow Front Upper Arm. Package-XRSDPS Black
-
96706202091 Red Front Upper Arm. Package-XRSDPS RedRed Front Upper Arm. Package-XRSDPS Red
-
96706202091 Red Front Upper Arm. Package-XRSDPS Bright WhiteRed Front Upper Arm. Package-XRSDPS Bright White
-
102706201711 Yellow Front Spring. Package-XRSDPS BlackYellow Front Spring. Package-XRSDPS Black
-
102706201827 Red Front Spring. Package-XRSDPS RedRed Front Spring. Package-XRSDPS Red
-
102706201827 Red Front Spring. Package-XRSDPS Bright WhiteRed Front Spring. Package-XRSDPS Bright White
