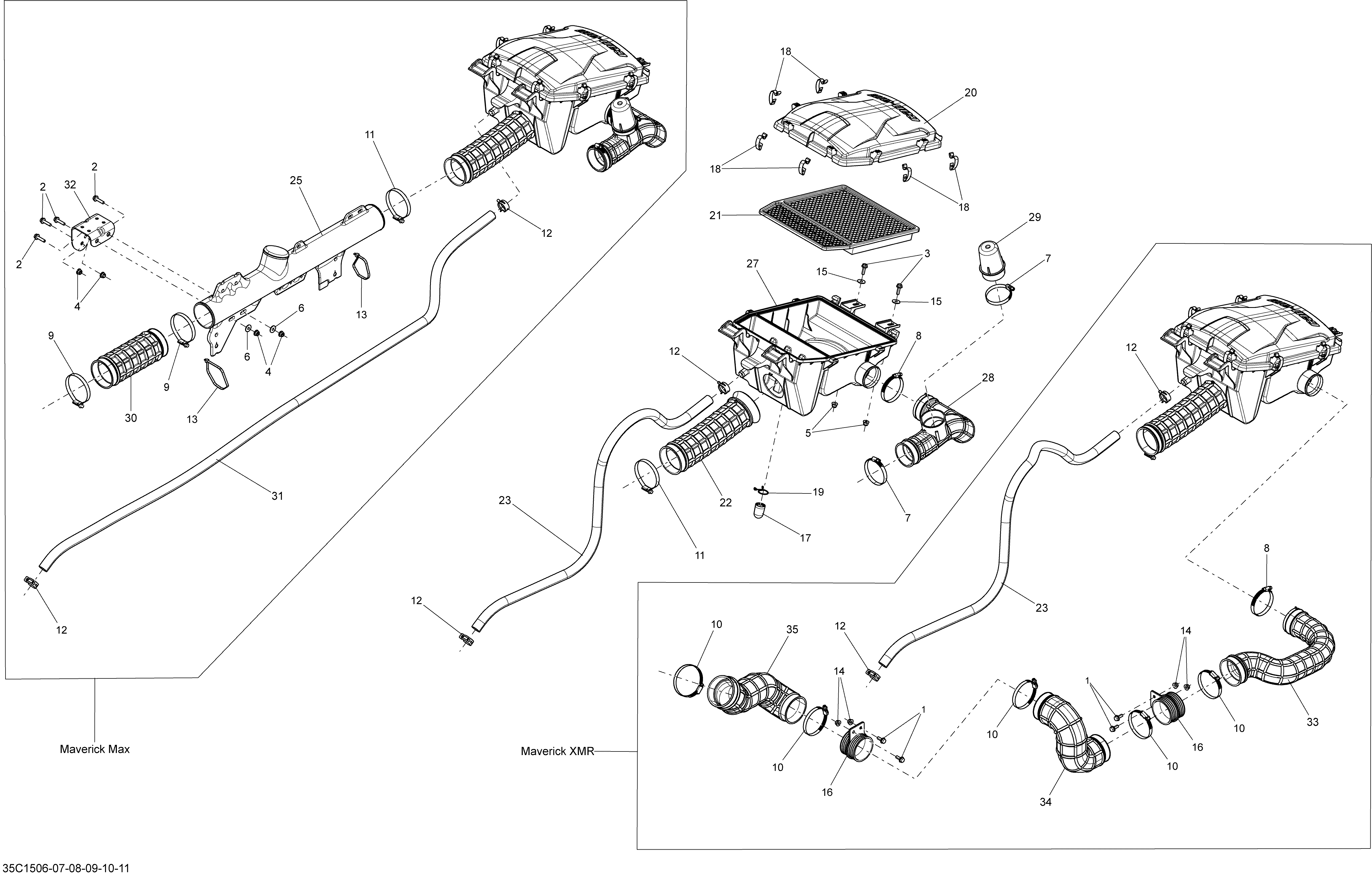

02- Air Intake _35C1509 для BRP Maverick MAX 1000_STD_XRS-DPS - 2015
-
№АртикулНазвание
-
2207562544 Hex. Flanged Screw M6 X 25, Scotch Grip. MAV-MAXHex. Flanged Screw M6 X 25, Scotch Grip. MAV-MAX
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4233061414 Hex. Flanged Nut M6. MAV-MAXHex. Flanged Nut M6. MAV-MAX
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6234062410 Flat Washer 6 mm. MAV-MAXFlat Washer 6 mm. MAV-MAX
-
7293650079 Norma Clamp. <>P-XMRNorma Clamp. <>P-XMR
-
8293650079 Norma ClampNorma Clamp
-
9293650091 Norma Clamp. MAV-MAXNorma Clamp. MAV-MAX
-
11293650091 Norma ClampNorma Clamp
-
12293650213 Norma Spring ClampNorma Spring Clamp
-
13293750008 Tie-Rap 350 mm. MAV-MAXTie-Rap 350 mm. MAV-MAX
-
15250200082 Flat WasherFlat Washer
-
17707800080 Drain TubeDrain Tube
-
18707800249 Cover BracketCover Bracket
-
19707800278 Retainer ClipRetainer Clip
-
20707800326 Air Intake Silencer CoverAir Intake Silencer Cover
-
21707800327 Air FilterAir Filter
-
22707800329 Intake AdaptorIntake Adaptor
-
25707800515 Intake Adaptor. MAV-MAXIntake Adaptor. MAV-MAX
-
27707800517 Air Intake Silencer BaseAir Intake Silencer Base
-
28707800532 Intake Adaptor. <>P-XMRIntake Adaptor. <>P-XMR
-
29707800533 Intake Adaptor Tank. <>P-XMRIntake Adaptor Tank. <>P-XMR
-
30707800541 Intake Adaptor. MAV-MAXIntake Adaptor. MAV-MAX
-
31707800411 Hose 15.88 mm. MAV-MAXHose 15.88 mm. MAV-MAX
-
32707800560 Rear Support. MAV-MAXRear Support. MAV-MAX
