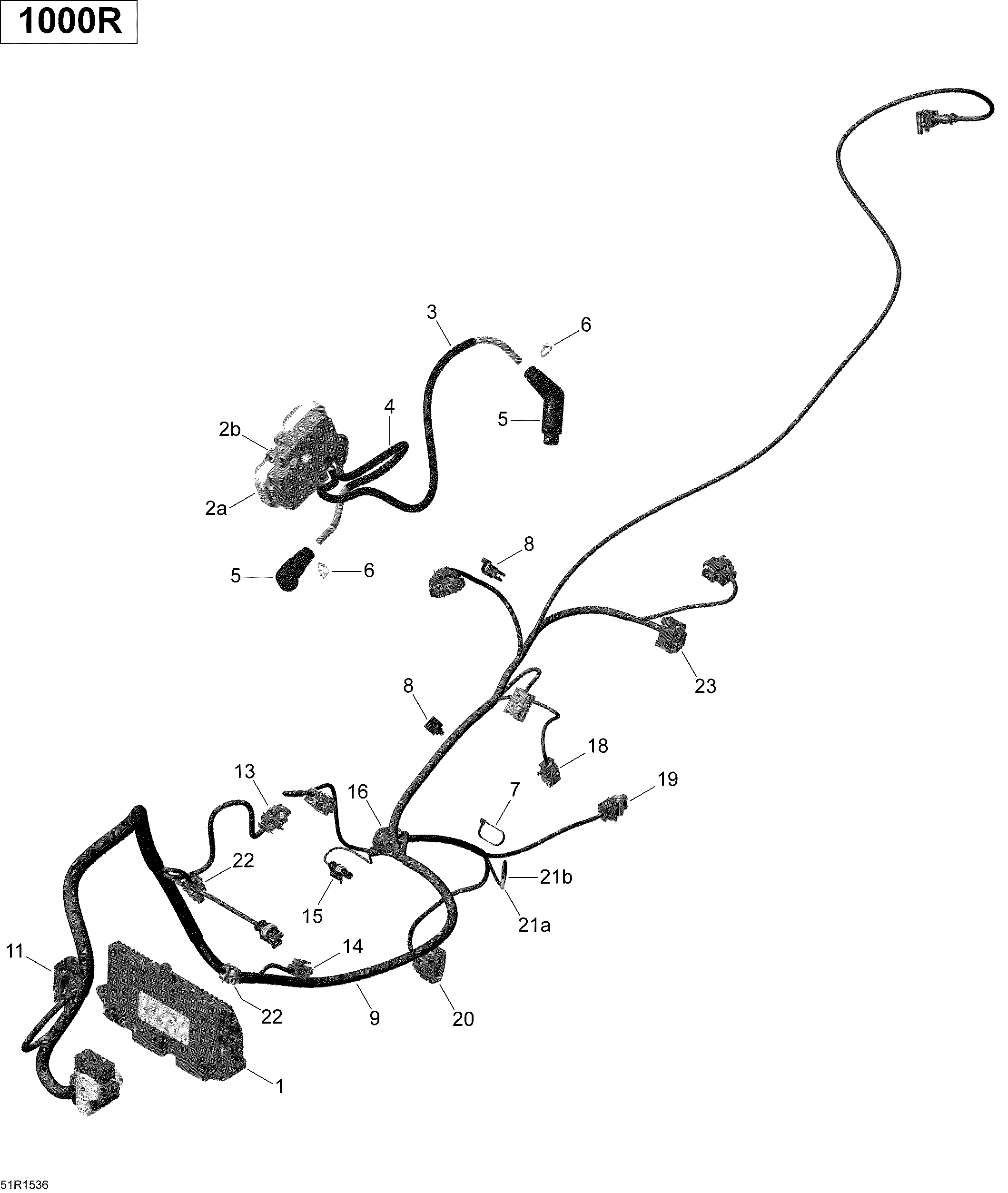

10- Engine Harness And Electronic Module Maverick Turbo_51R1536 для BRP Maverick 1000_XDS-DPS - 2015
-
№АртикулНазвание
-
1420265931 ECM ConnectorECM Connector
-
2a278001546 Ignition Coil. Includes 2a to 2bIgnition Coil. Includes 2a to 2b
-
2b710000568 HousingHousing
-
3420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
4420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
5420265020 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
8420951650 Cable ClampCable Clamp
-
9420666660 Engine Wiring Harness. Includes 9 to 23Engine Wiring Harness. Includes 9 to 23
-
11710001927 HousingHousing
-
13278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
14278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
15278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
16278002378 Male HousingMale Housing
-
18278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
19278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
20710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
21a278001009 Female TerminalFemale Terminal
-
21b278001007 Insulated SheathInsulated Sheath
-
22278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
23710003731 HousingHousing
