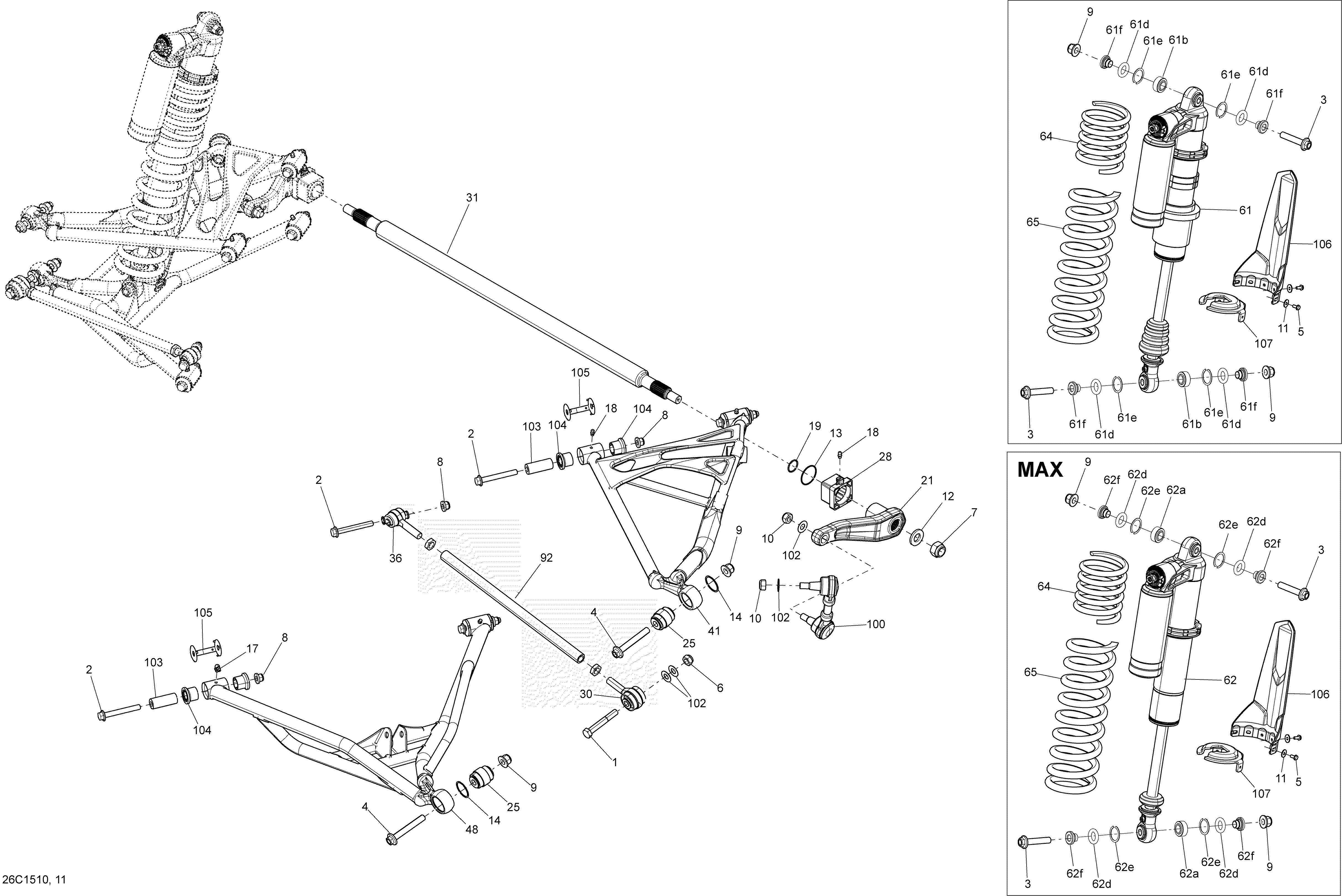

08- Rear Suspension _26C1510 для BRP Maverick 1000_XDS-DPS - 2015
-
№АртикулНазвание
-
1207028046 Hex. Screw M12 X 80Hex. Screw M12 X 80
-
2207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
3207626046 Hex. Flanged Screw M12 X 60Hex. Flanged Screw M12 X 60
-
4207628546 Hex. Flanged Screw M12 X 85Hex. Flanged Screw M12 X 85
-
5210251680 Hex. Flanged Screw M5 X 16. Model-MAVERICK 1000 Deep BlackHex. Flanged Screw M5 X 16. Model-MAVERICK 1000 Deep Black
-
5210251680 Hex. Flanged Screw M5 X 16. Model-MAV XDSDPS Quarry GreyHex. Flanged Screw M5 X 16. Model-MAV XDSDPS Quarry Grey
-
5210251680 Hex. Flanged Screw M5 X 16. Model-MAV XDSDPS Black Carbon FiberHex. Flanged Screw M5 X 16. Model-MAV XDSDPS Black Carbon Fiber
-
5210251680 Hex. Flanged Screw M5 X 16. Model-MAVERICK Turbo Deep BlackHex. Flanged Screw M5 X 16. Model-MAVERICK Turbo Deep Black
-
5210251680 Hex. Flanged Screw M5 X 16. Package-XDSHex. Flanged Screw M5 X 16. Package-XDS
-
6232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
7232591414 Elastic Stop Nut M18Elastic Stop Nut M18
-
8233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
9233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
10250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
11250200025 Washer M5. Model-MAVERICK 1000 Deep BlackWasher M5. Model-MAVERICK 1000 Deep Black
-
11250200025 Washer M5. Model-MAV XDSDPS Quarry GreyWasher M5. Model-MAV XDSDPS Quarry Grey
-
11250200025 Washer M5. Model-MAV XDSDPS Black Carbon FiberWasher M5. Model-MAV XDSDPS Black Carbon Fiber
-
11250200025 Washer M5. Model-MAVERICK Turbo Deep BlackWasher M5. Model-MAVERICK Turbo Deep Black
-
11250200025 Washer M5. Package-XDSWasher M5. Package-XDS
-
12250200045 WasherWasher
-
13293300100 O-RingO-Ring
-
14293370093 Retaining RingRetaining Ring
-
17293550056 Grease Fitting 90°Grease Fitting 90°
-
18408200700 Grease FittingGrease Fitting
-
18408200700 Grease FittingGrease Fitting
-
19706000251 Retaining RingRetaining Ring
-
21706001371 Sway Bar LeverSway Bar Lever
-
25706001373 Radial JointRadial Joint
-
28706001402 Sway Bar HousingSway Bar Housing
-
30706001437 Ball JointBall Joint
-
31706001356 Sway Bar. Model-MAVERICKSway Bar. Model-MAVERICK
-
36706001798 Ball JointBall Joint
-
41706001933 LH Rear Upper Arm. Model-Turbo Deep BlackLH Rear Upper Arm. Model-Turbo Deep Black
-
41706001933 Manta Green LH Rear Upper Arm. Model-Quarry GreyManta Green LH Rear Upper Arm. Model-Quarry Grey
-
41706001933 Manta Green LH Rear Upper Arm. Model-Black Carbon FiberManta Green LH Rear Upper Arm. Model-Black Carbon Fiber
-
41706001933 Manta Green LH Rear Upper Arm. Model-1000 Deep BlackManta Green LH Rear Upper Arm. Model-1000 Deep Black
-
41706001934 RH Rear Upper Arm. Model-Turbo Deep BlackRH Rear Upper Arm. Model-Turbo Deep Black
-
41706001934 Manta Green RH Rear Upper Arm. Model-Quarry GreyManta Green RH Rear Upper Arm. Model-Quarry Grey
-
41706001934 Manta Green RH Rear Upper Arm. Model-Black Carbon FiberManta Green RH Rear Upper Arm. Model-Black Carbon Fiber
-
41706001934 Manta Green RH Rear Upper Arm. Model-1000 Deep BlackManta Green RH Rear Upper Arm. Model-1000 Deep Black
-
48706001935 Black LH Rear Lower ArmBlack LH Rear Lower Arm
-
48706001936 Black RH Rear Lower ArmBlack RH Rear Lower Arm
-
61706002129 Shock. Package-XDS EuropeShock. Package-XDS Europe
-
61706001944 Shock. Package-XDS North America, InternationalShock. Package-XDS North America, International
-
61b715900337 Spherical BearingSpherical Bearing
-
61d715900338 O-Ring BushingO-Ring Bushing
-
61e715900339 CirclipCirclip
-
61f715900340 Internal BushingInternal Bushing
-
64706001945 Manta Green Spring. Model-MAVERICK 1000 Deep BlackManta Green Spring. Model-MAVERICK 1000 Deep Black
-
64706001945 Manta Green Spring. Model-MAV XDSDPS Quarry GreyManta Green Spring. Model-MAV XDSDPS Quarry Grey
-
64706001945 Manta Green Spring. Model-MAV XDSDPS Black Carbon FiberManta Green Spring. Model-MAV XDSDPS Black Carbon Fiber
-
64706001945 Manta Green Spring. Package-XDSManta Green Spring. Package-XDS
-
64706002108 Yellow Rear Spring. Model-MAVERICK Turbo Deep BlackYellow Rear Spring. Model-MAVERICK Turbo Deep Black
-
65706001946 Manta Green Spring. Model-MAVERICK 1000 Deep BlackManta Green Spring. Model-MAVERICK 1000 Deep Black
-
65706001946 Manta Green Spring. Model-MAV XDSDPS Quarry GreyManta Green Spring. Model-MAV XDSDPS Quarry Grey
-
65706001946 Manta Green Spring. Model-MAV XDSDPS Black Carbon FiberManta Green Spring. Model-MAV XDSDPS Black Carbon Fiber
-
65706001946 Manta Green Spring. Package-XDSManta Green Spring. Package-XDS
-
65706002109 Yellow Rear Spring. Model-MAVERICK Turbo Deep BlackYellow Rear Spring. Model-MAVERICK Turbo Deep Black
-
92706002081 Adjustment RodAdjustment Rod
-
100706002089 Ball Joint LHBall Joint LH
-
100706002090 Ball Joint RHBall Joint RH
-
102250200086 Flat WasherFlat Washer
-
102250200086 Flat WasherFlat Washer
-
103706201590 SleeveSleeve
-
104706201659 CushionCushion
-
105706201660 Wear PlateWear Plate
-
106706202215 ProtectorProtector
-
107706202216 Spring RetainerSpring Retainer
