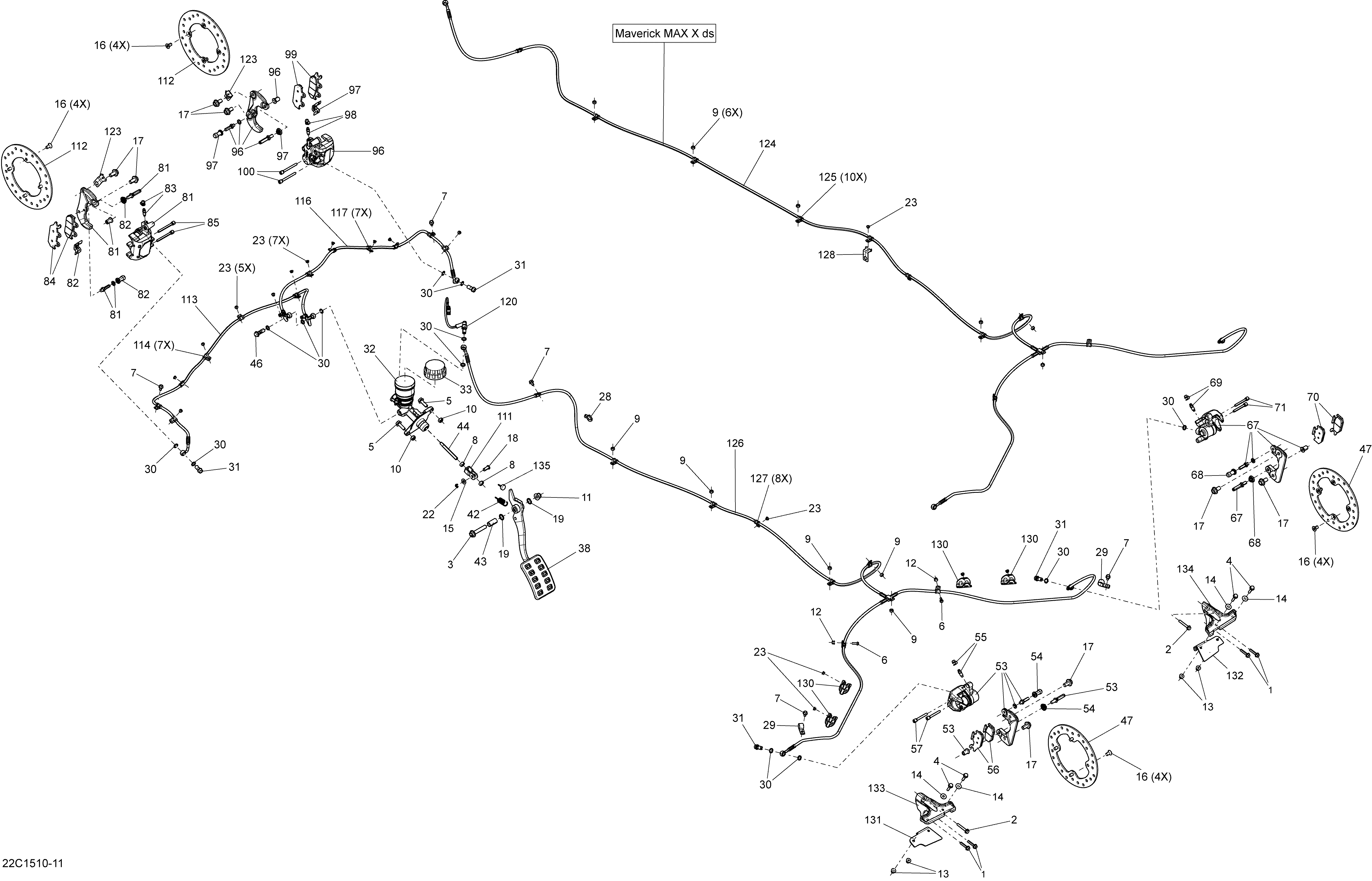

06- Brakes _22C1510 для BRP Maverick 1000_XDS-DPS - 2015
-
№АртикулНазвание
-
1207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
2207564044 Hex. Flanged Screw M6 X 40, Scotch GripHex. Flanged Screw M6 X 40, Scotch Grip
-
3207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
4207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
5207682534 Hex. Flanged ScrewHex. Flanged Screw
-
6210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
7210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
8232081414 Hex. Nut M8Hex. Nut M8
-
9232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
10232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
11233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
13233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
14234062670 Flat WasherFlat Washer
-
15234081430 Flat Washer M8Flat Washer M8
-
16235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
17250000601 Hex. Flanged Screw M10 X 20, Scotch GripHex. Flanged Screw M10 X 20, Scotch Grip
-
18250400058 PinPin
-
19293300144 O-RingO-Ring
-
22371800700 Cotter PinCotter Pin
-
23390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29518321570 Open ClampOpen Clamp
-
30705600310 Copper WasherCopper Washer
-
31705600609 Banjo BoltBanjo Bolt
-
32705600681 Master Cylinder Ass'y. Includes 32 to 33Master Cylinder Ass'y. Includes 32 to 33
-
33715500332 Diaphragm Cap KitDiaphragm Cap Kit
-
38705600724 Brake PedalBrake Pedal
-
42705600792 Brake Pedal SpringBrake Pedal Spring
-
43705600815 Inner SpacerInner Spacer
-
44705600833 Master Cylinder RodMaster Cylinder Rod
-
46705600958 Banjo BoltBanjo Bolt
-
47705600999 Disc BrakeDisc Brake
-
53705601089 LH Caliper Ass'y. Includes 53 to 57LH Caliper Ass'y. Includes 53 to 57
-
54715500384 Spring, Protector And Bolt KitSpring, Protector And Bolt Kit
-
55705600080 Bleeding ScrewBleeding Screw
-
56705600398 LH Brake Pad KitLH Brake Pad Kit
-
57705600081 Pin KitPin Kit
-
67705601090 RH Caliper Ass'y. Includes 67 to 71RH Caliper Ass'y. Includes 67 to 71
-
68715500384 Spring, Protector And Bolt KitSpring, Protector And Bolt Kit
-
69705600080 Bleeding ScrewBleeding Screw
-
70705601147 RH Brake Pad KitRH Brake Pad Kit
-
71705600081 Pin KitPin Kit
-
81705601128 LH Caliper Ass'y. Includes 81 to 85LH Caliper Ass'y. Includes 81 to 85
-
82715500385 Spring And Bolt KitSpring And Bolt Kit
-
83705600080 Bleeding ScrewBleeding Screw
-
84705601149 LH Brake Pad KitLH Brake Pad Kit
-
85705601151 Hanger Pin KitHanger Pin Kit
-
96705601129 RH Caliper Ass'y. Includes 96 to 100RH Caliper Ass'y. Includes 96 to 100
-
97715500385 Spring And Bolt KitSpring And Bolt Kit
-
98705600080 Bleeding ScrewBleeding Screw
-
99705601150 RH Brake Pad KitRH Brake Pad Kit
-
100705601151 Hanger Pin KitHanger Pin Kit
-
111705601142 YokeYoke
-
112705601178 Dics BrakeDics Brake
-
113705601192 LH Front Flexible Hose Ass'y. Includes 113 to 114LH Front Flexible Hose Ass'y. Includes 113 to 114
-
114715900250 Hose ClipHose Clip
-
116705601193 RH Front Flexible Hose Ass'y. Includes 116 to 117RH Front Flexible Hose Ass'y. Includes 116 to 117
-
117715900250 Hose ClipHose Clip
-
120705601250 Brake SwitchBrake Switch
-
123705601337 BracketBracket
-
126705601362 Rear Flexible Hose Ass'y. Includes 126 to 127Rear Flexible Hose Ass'y. Includes 126 to 127
-
127715900250 Hose ClipHose Clip
-
130705601380 Hose ClampHose Clamp
-
131705601397 LH Deflector Insert. Model-North America, InternationalLH Deflector Insert. Model-North America, International
-
132705601398 RH Deflector Insert. Model-North America, InternationalRH Deflector Insert. Model-North America, International
-
133705601403 LH DeflectorLH Deflector
-
134705601404 RH DeflectorRH Deflector
-
135708000759 Rubber StopperRubber Stopper
