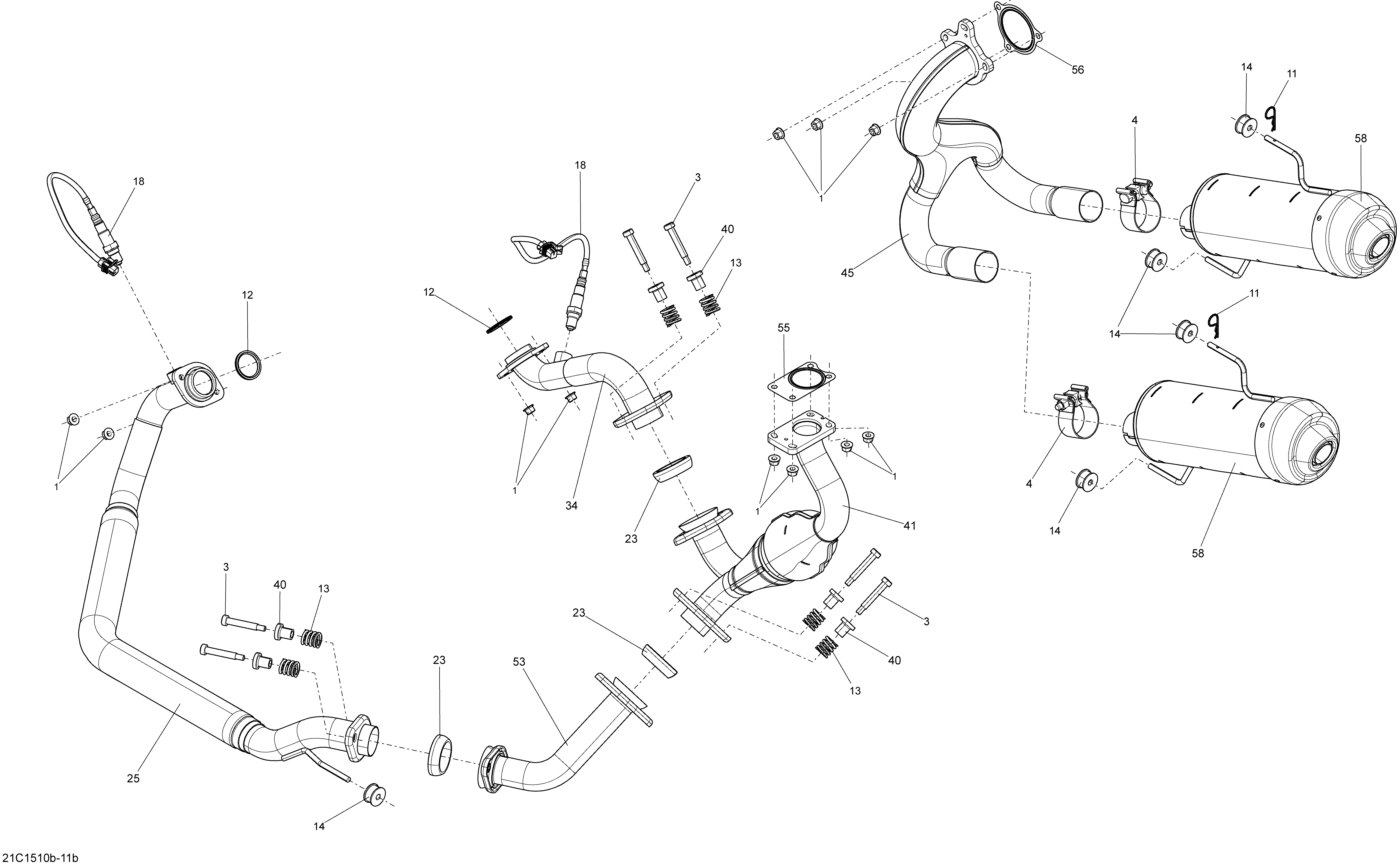

01- Exhaust System _Turbo_21C1510b для BRP Maverick 1000_XDS-DPS - 2015
-
№АртикулНазвание
-
1233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
3250000658 Socket Head Screw M10 X 50Socket Head Screw M10 X 50
-
4293650231 Gear ClampGear Clamp
-
11414575600 Hair PinHair Pin
-
12707600317 GasketGasket
-
13707600682 SpringSpring
-
14707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
18707600872 Oxygen SensorOxygen Sensor
-
23707601128 SealSeal
-
25707601616 Front Head PipeFront Head Pipe
-
34707601617 Rear Head PipeRear Head Pipe
-
40707601254 BushingBushing
-
41707601464 Head PipeHead Pipe
-
45707601465 Head PipeHead Pipe
-
53707601546 Head PipeHead Pipe
-
55707601565 SealSeal
-
56707601566 SealSeal
-
58707601636 MufflerMuffler
