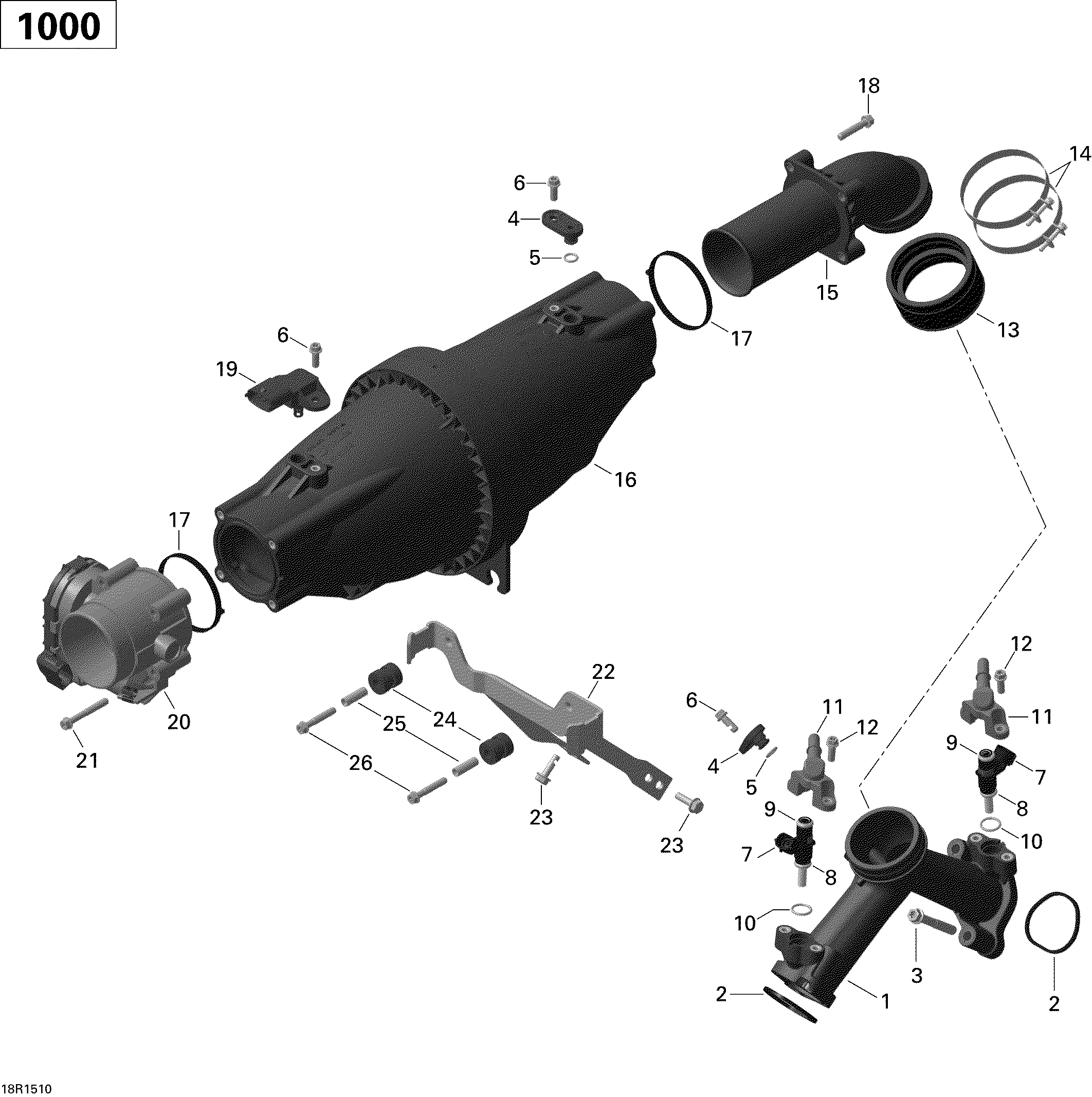

02- Air Intake Manifold And Throttle Body _18R1510 для BRP Commmander 1000_LTD - 2015
-
№АртикулНазвание
-
1420667520 Air Intake ManifoldAir Intake Manifold
-
2420630642 GasketGasket
-
3420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
4420460980 CoverCover
-
5420230461 O-RingO-Ring
-
6420440147 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
7420874830 Injection Valve Ass'y. Includes 7 to 9Injection Valve Ass'y. Includes 7 to 9
-
8420431890 O-RingO-Ring
-
9420631220 O-RingO-Ring
-
10420631295 O-RingO-Ring
-
11420874901 Fuel RailFuel Rail
-
12420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
13420267040 Intake NeckIntake Neck
-
14420251209 ClampClamp
-
15420667522 Air Inlet ManifoldAir Inlet Manifold
-
16420667526 Air Inlet Manifold Ass'y. Includes 16 to 17Air Inlet Manifold Ass'y. Includes 16 to 17
-
17420431900 GasketGasket
-
18420241947 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
19707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
20420892595 Throttle BodyThrottle Body
-
21420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
22420651520 SupportSupport
-
23420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
24420660090 Rubber BracketRubber Bracket
-
25420847971 SpacerSpacer
-
26420441457 Hex. Screw M6 X 35Hex. Screw M6 X 35
