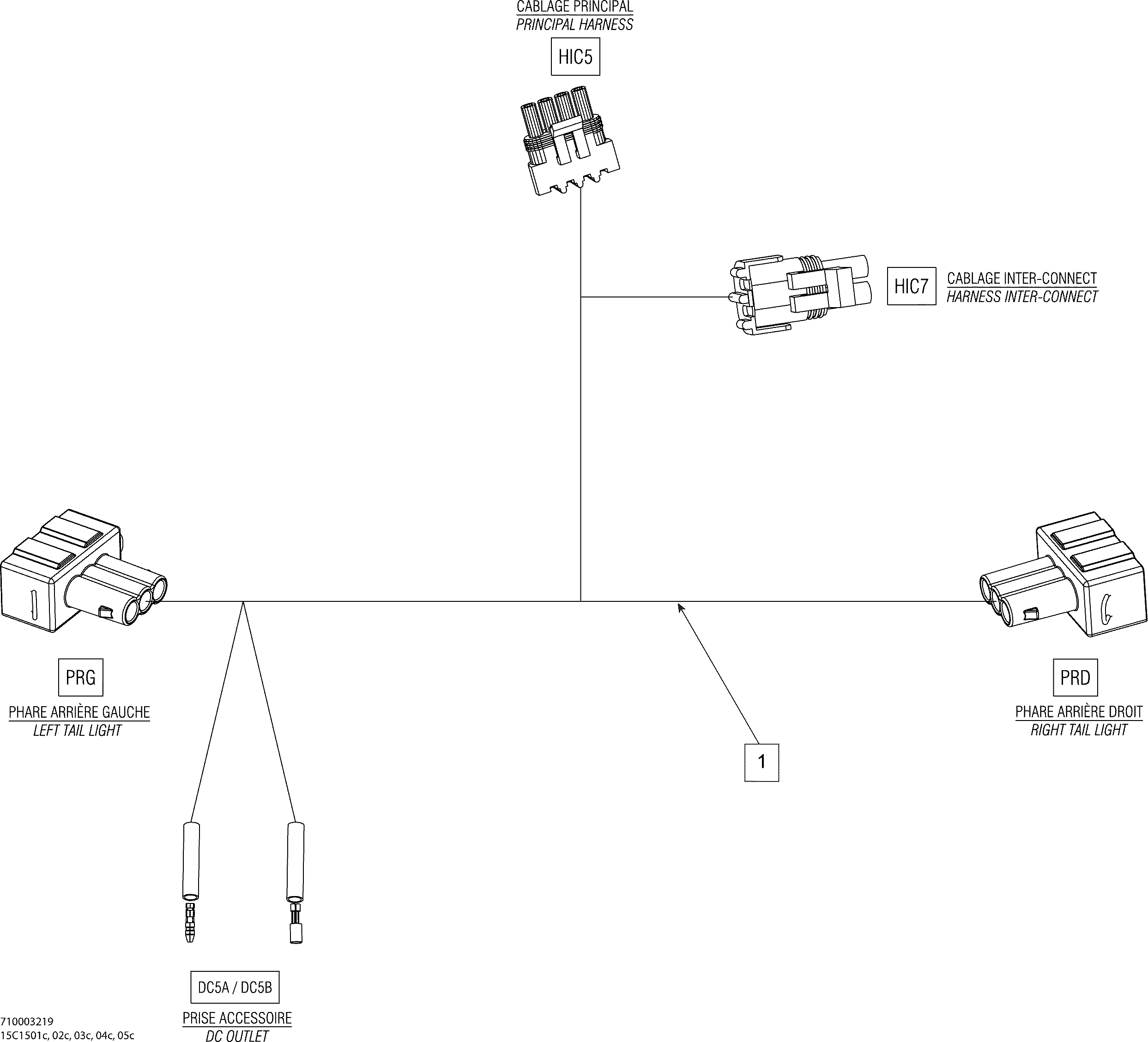

10- Electrical Harness Rear, NA_Inter_15C1505c для BRP Commander MAX 1000_LTD - 2015
-
№АртикулНазвание
-
1710003219 Rear Harness. Model-North America, InternationalRear Harness. Model-North America, International
-
DC5A278001008 Insulated Sheath. Model-North America, InternationalInsulated Sheath. Model-North America, International
-
DC5A278002261 Female Terminal. Model-North America, InternationalFemale Terminal. Model-North America, International
-
DC5B278001007 Insulated Sheath. Model-North America, InternationalInsulated Sheath. Model-North America, International
-
DC5B710000421 Female Terminal. Model-North America, InternationalFemale Terminal. Model-North America, International
-
HIC5278000395 Male Housing, 4 Circuits. Model-North America, InternationalMale Housing, 4 Circuits. Model-North America, International
-
HIC5278001065 Wire Seal. Model-North America, InternationalWire Seal. Model-North America, International
-
HIC5278000223 Female Terminal. Model-North America, InternationalFemale Terminal. Model-North America, International
-
HIC7278000220 Male Connector, 2 Circuits. Model-North America, InternationalMale Connector, 2 Circuits. Model-North America, International
-
HIC7278000218 Wire Seal. Model-North America, InternationalWire Seal. Model-North America, International
-
HIC7409007300 Female Terminal. Model-North America, InternationalFemale Terminal. Model-North America, International
-
PRD710003167 Connector, 3 Positions. Model-North America, InternationalConnector, 3 Positions. Model-North America, International
-
PRD415128501 Seal. Model-North America, InternationalSeal. Model-North America, International
-
PRD278000998 Female Terminal. Model-North America, InternationalFemale Terminal. Model-North America, International
-
PRG710003167 Connector, 3 Positions. Model-North America, InternationalConnector, 3 Positions. Model-North America, International
-
PRD415128501 Seal. Model-North America, InternationalSeal. Model-North America, International
-
PRG278000998 Female Terminal. Model-North America, InternationalFemale Terminal. Model-North America, International
