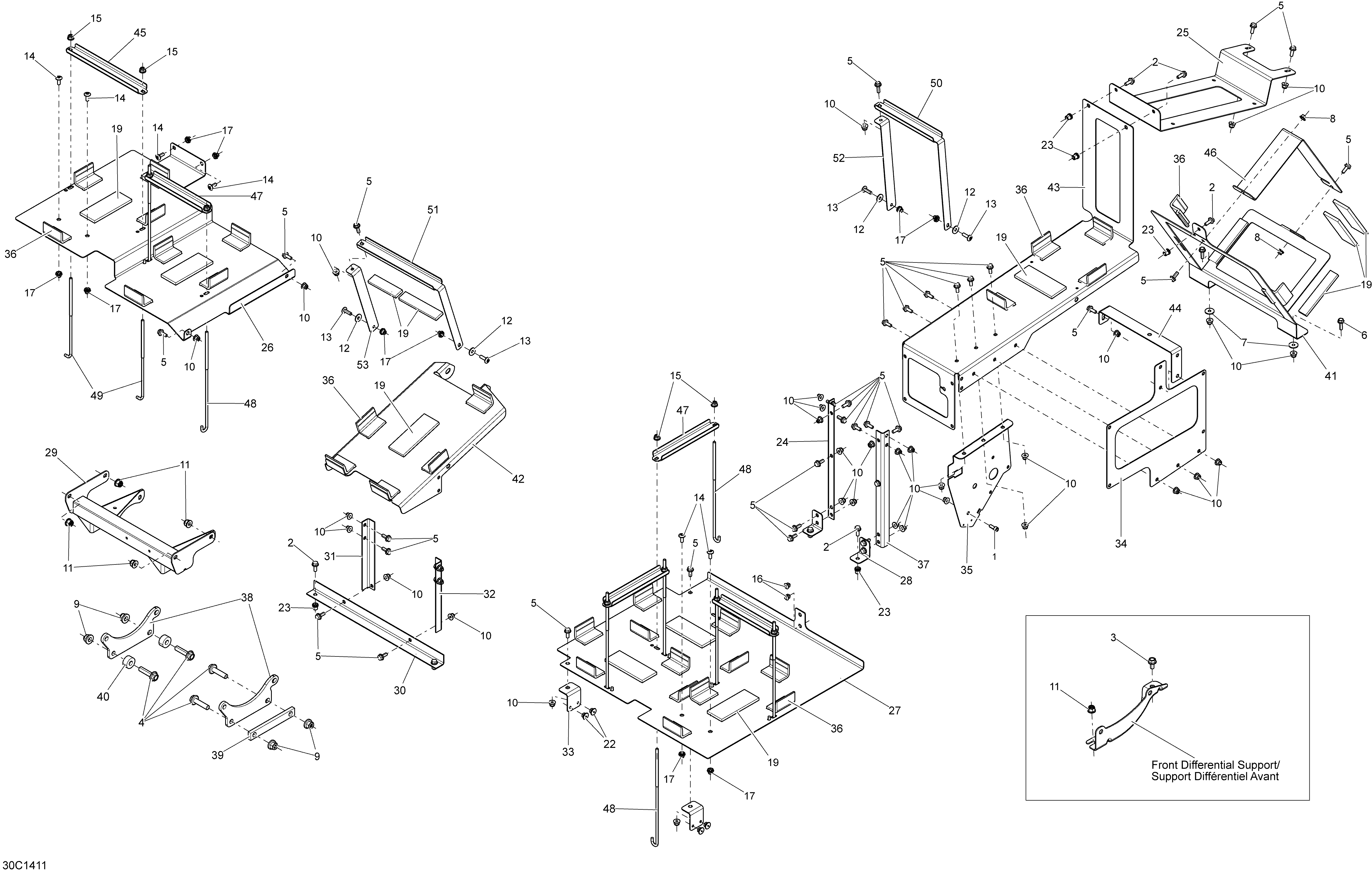

09- Frame _30C1411 для BRP Commander (Electric 9Kw) STD, XT, LSV - 2014

  • №
    Артикул
    Название
  • 1
    205061660 Socket Screw M6 X 16
    Socket Screw M6 X 16
  • 2
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 3
    207581644 Hex. Flanged Screw M8 X 16, Scotch Grip
    Hex. Flanged Screw M8 X 16, Scotch Grip
  • 4
    207604044 Hex. Flanged Screw M10 X 40
    Hex. Flanged Screw M10 X 40
  • 5
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 6
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 7
    224061201 Flat Washer
    Flat Washer
  • 8
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 9
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 10
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 11
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 12
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 13
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 14
    250000348 Torx Truss Screw M6 X 16
    Torx Truss Screw M6 X 16
  • 15
    250100140 Elastic Hex. Flange Nut 1/4-20
    Elastic Hex. Flange Nut 1/4-20
  • 16
    293150096 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 17
    293450274 Insert
    Insert
  • 19
    293830152 Pad
    Pad
  • 22
    390406500 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 23
    293450275 Insert
    Insert
  • 24
    705202840 LH Side Angle
    LH Side Angle
  • 25
    705202867 Support
    Support
  • 26
    705202871 LH Tray, Battery
    LH Tray, Battery
  • 27
    705202874 RH Tray, Battery
    RH Tray, Battery
  • 28
    705202875 Front Bracket
    Front Bracket
  • 29
    705202876 Rear Differential Support
    Rear Differential Support
  • 30
    705202878 Rear Bracket
    Rear Bracket
  • 31
    705202880 LH Rear Bracket
    LH Rear Bracket
  • 32
    705202881 RH Rear Bracket
    RH Rear Bracket
  • 33
    705202883 Battery Tray Bracket
    Battery Tray Bracket
  • 34
    705202885 Support
    Support
  • 35
    705202890 Support
    Support
  • 36
    705202925 Slider Shoe, Battery
    Slider Shoe, Battery
  • 37
    705203280 RH Side Angle
    RH Side Angle
  • 38
    705203673 Lower Differential Support
    Lower Differential Support
  • 39
    705203674 Spacer
    Spacer
  • 40
    705203675 Spacer
    Spacer
  • 41
    705203777 Front Support Battery
    Front Support Battery
  • 42
    705203780 Rear Battery Tray
    Rear Battery Tray
  • 43
    705203782 Central Battery Base Plate
    Central Battery Base Plate
  • 44
    705203948 Support
    Support
  • 45
    710002809 Battery Holder
    Battery Holder
  • 46
    710003149 Front Battery Holder
    Front Battery Holder
  • 47
    710003182 Battery Holder
    Battery Holder
  • 48
    710003184 Threaded Bar Kit
    Threaded Bar Kit
  • 49
    710003185 Threaded Bar Kit
    Threaded Bar Kit
  • 50
    710003786 Battery Holder
    Battery Holder
  • 51
    710003787 Battery Holder
    Battery Holder
  • 52
    710003789 Battery Holder
    Battery Holder
  • 53
    710003790 Battery Holder
    Battery Holder
