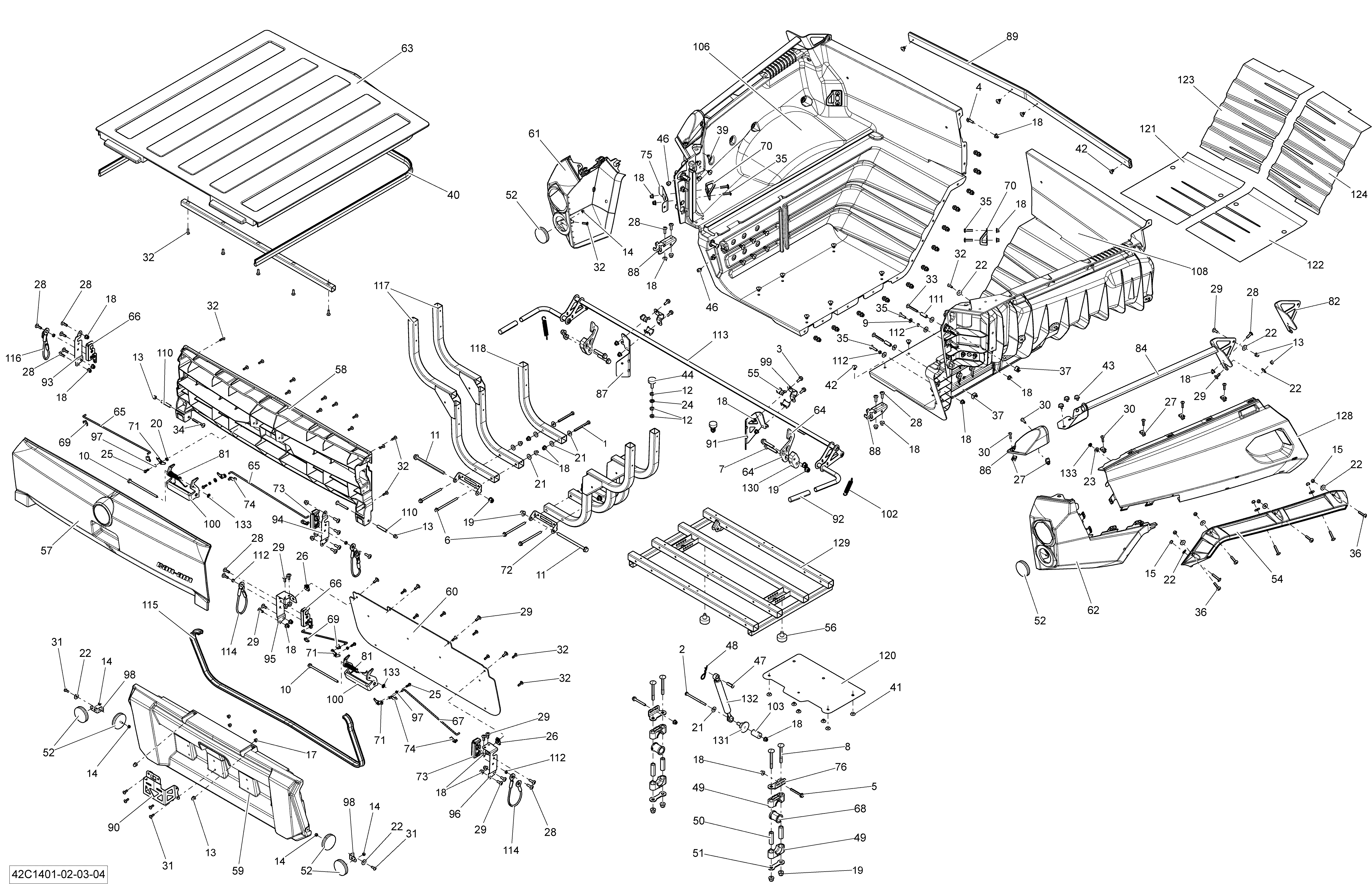

09- Rear Cargo Box для BRP Commander 1000 STD, DPS, XT, XT-P - 2014

  • №
    Артикул
    Название
  • 1
    207066544 Hex. Screw M6 X 65
    Hex. Screw M6 X 65
  • 2
    207069044 Hex. Screw M6 X 90
    Hex. Screw M6 X 90
  • 3
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 4
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 5
    207665044 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 6
    207669584 Hex. Flanged Screw M6 X 95
    Hex. Flanged Screw M6 X 95
  • 7
    207684586 Hex. Flanged Screw M8 X 45
    Hex. Flanged Screw M8 X 45
  • 8
    207787044 Carriage Bolt M8 X 70
    Carriage Bolt M8 X 70
  • 9
    224061121 Flat Washer
    Flat Washer
  • 10
    230663084 Hex. Flanged Screw M6 X 130
    Hex. Flanged Screw M6 X 130
  • 11
    230683034 Hex. Flanged Screw M8 X 130
    Hex. Flanged Screw M8 X 130
  • 12
    232180600 Hex. Jam Nut M8
    Hex. Jam Nut M8
  • 13
    232361493 Domed Nut M6
    Domed Nut M6
  • 14
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 15
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 17
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 18
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 19
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 20
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 21
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 22
    234062670 Flat Washer
    Flat Washer
  • 23
    234081100 Flat Washer 8 mm, Nylon
    Flat Washer 8 mm, Nylon
  • 24
    234181401 Lock Washer 8 mm
    Lock Washer 8 mm
  • 25
    241151640 Hex. Flanged Screw K50 X 16
    Hex. Flanged Screw K50 X 16
  • 26
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 27
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 28
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 29
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 30
    250000130 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 31
    250000145 Torx Screw M5 X 14
    Torx Screw M5 X 14
  • 32
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 33
    250000215 Torx Screw M6 X 45
    Torx Screw M6 X 45
  • 34
    250000239 Torx Truss Screw M6 X 50
    Torx Truss Screw M6 X 50
  • 35
    250000284 Torx Screw M6 x 25
    Torx Screw M6 x 25
  • 36
    250000371 Torx Screw M6 X 30 Stainless
    Torx Screw M6 X 30 Stainless
  • 37
    269500725 Nut Housing Ass'y
    Nut Housing Ass'y
  • 39
    293150100 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 40
    293250240 Neoprene Seal
    Neoprene Seal
  • 41
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 42
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 43
    293150190 Pop Rivet 3/16
    Pop Rivet 3/16
  • 44
    293720091 Frame Rubber Bumper
    Frame Rubber Bumper
  • 46
    293830005 Rubber Bumper
    Rubber Bumper
  • 47
    414079100 Pin
    Pin
  • 48
    414575600 Hair Pin
    Hair Pin
  • 49
    506150400 Housing Half
    Housing Half
  • 50
    506150500 Housing Bushing
    Housing Bushing
  • 51
    506150600 Stopper Plate
    Stopper Plate
  • 52
    705002408 Red Reflector. Model-Europe
    Red Reflector. Model-Europe
  • 52
    705002408 Red Reflector. Except Model-Europe
    Red Reflector. Except Model-Europe
  • 54
    705003603 LH Upper Rear Mudguards. Model-XT Except Europe
    LH Upper Rear Mudguards. Model-XT Except Europe
  • 54
    705003604 RH Upper Rear Mudguards. Model-XT Except Europe
    RH Upper Rear Mudguards. Model-XT Except Europe
  • 54
    705003603 LH Upper Rear Mudguards. Model-XTP Except Europe
    LH Upper Rear Mudguards. Model-XTP Except Europe
  • 54
    705003604 RH Upper Rear Mudguards. Model-XTP Except Europe
    RH Upper Rear Mudguards. Model-XTP Except Europe
  • 55
    705500033 Half Ring
    Half Ring
  • 56
    708000884 Rubber Stopper
    Rubber Stopper
  • 57
    708300442 Camo Outside Top Pannel. Model-Camo
    Camo Outside Top Pannel. Model-Camo
  • 57
    708300052 Yellow Outside Top Pannel. Model-DPS
    Yellow Outside Top Pannel. Model-DPS
  • 57
    708300552 Magnesium Outside Top Pannel. Model- Magnesium
    Magnesium Outside Top Pannel. Model- Magnesium
  • 57
    708300441 Red Outside Top Pannel. Model-Red
    Red Outside Top Pannel. Model-Red
  • 57
    708300052 Yellow Outside Top Pannel. Model-XT Yellow Model
    Yellow Outside Top Pannel. Model-XT Yellow Model
  • 57
    708300052 Yellow Outside Top Pannel. Model-XTP
    Yellow Outside Top Pannel. Model-XTP
  • 58
    708300053 Inside Top Pannel
    Inside Top Pannel
  • 59
    715001255 Lower Panel Ass'y. Model-Europe
    Lower Panel Ass'y. Model-Europe
  • 59
    715001255 Lower Panel Ass'y. Except Model-Europe
    Lower Panel Ass'y. Except Model-Europe
  • 60
    708300073 Inside Bottom Pannel
    Inside Bottom Pannel
  • 61
    708300103 LH Rear Facia. Model-DPS
    LH Rear Facia. Model-DPS
  • 61
    708300103 LH Rear Facia. Model-STD Except Europe
    LH Rear Facia. Model-STD Except Europe
  • 61
    708300103 LH Rear Facia. Model-XT Europe
    LH Rear Facia. Model-XT Europe
  • 61
    708300103 LH Rear Facia. Model-XT Except Europe
    LH Rear Facia. Model-XT Except Europe
  • 61
    708300103 LH Rear Facia. Model-XTP Europe
    LH Rear Facia. Model-XTP Europe
  • 61
    708300103 LH Rear Facia. Model-XTP Except Europe
    LH Rear Facia. Model-XTP Except Europe
  • 62
    708300104 RH Rear Facia. Model-DPS
    RH Rear Facia. Model-DPS
  • 62
    708300104 RH Rear Facia. Model-STD Except Europe
    RH Rear Facia. Model-STD Except Europe
  • 62
    708300104 RH Rear Facia. Model-XT Europe
    RH Rear Facia. Model-XT Europe
  • 62
    708300104 RH Rear Facia. Model-XT Except Europe
    RH Rear Facia. Model-XT Except Europe
  • 62
    708300104 RH Rear Facia. Model-XTP Europe
    RH Rear Facia. Model-XTP Europe
  • 62
    708300104 RH Rear Facia. Model-XTP Except Europe
    RH Rear Facia. Model-XTP Except Europe
  • 63
    708300131 Separator Pannel Ass'y
    Separator Pannel Ass'y
  • 64
    708300136 Box Retainer
    Box Retainer
  • 65
    708300160 Top Rod
    Top Rod
  • 66
    708300162 LH Latch
    LH Latch
  • 67
    708300164 Lower Bottom Rod
    Lower Bottom Rod
  • 68
    708300172 Pivot Bushing
    Pivot Bushing
  • 69
    708300182 LH Tie Rod Clip
    LH Tie Rod Clip
  • 70
    708300183 Retaining Plate
    Retaining Plate
  • 71
    708300184 Activator
    Activator
  • 72
    708300185 Bracket Pivot
    Bracket Pivot
  • 73
    708300201 RH Latch
    RH Latch
  • 74
    708300202 RH Tie Rod Clip
    RH Tie Rod Clip
  • 75
    708300206 Retaining Plate Support
    Retaining Plate Support
  • 76
    708300210 Adjustable Stopper Plate
    Adjustable Stopper Plate
  • 81
    708300219 Spring
    Spring
  • 82
    708300333 LH Painted Rail Cap
    LH Painted Rail Cap
  • 82
    708300334 RH Painted Rail Cap
    RH Painted Rail Cap
  • 84
    708300231 LH Welded Rail
    LH Welded Rail
  • 84
    708300232 RH Welded Rail
    RH Welded Rail
  • 86
    708300233 LH Rail Cover
    LH Rail Cover
  • 86
    708300234 RH Rail Cover
    RH Rail Cover
  • 87
    708300278 LH Latch Lever Support
    LH Latch Lever Support
  • 88
    708300345 Upper Pivot Support
    Upper Pivot Support
  • 89
    708300346 Front Support
    Front Support
  • 90
    708300349 Plate Support
    Plate Support
  • 91
    708300351 RH Latch Lever Support
    RH Latch Lever Support
  • 92
    708300358 Cap Latch Lever
    Cap Latch Lever
  • 93
    708300359 LH Upper Support
    LH Upper Support
  • 94
    708300360 RH Upper Support
    RH Upper Support
  • 95
    708300361 LH Lower Support
    LH Lower Support
  • 96
    708300362 RH Lower Support
    RH Lower Support
  • 97
    708300365 Bushing
    Bushing
  • 98
    708300367 Reflector Support
    Reflector Support
  • 99
    708300392 Clamp Reatiner
    Clamp Reatiner
  • 100
    708300398 Handle
    Handle
  • 102
    708300454 Spring
    Spring
  • 103
    708300470 Spacer
    Spacer
  • 106
    715001259 LH Box Ass'y. Model-STD, DPS, XTP
    LH Box Ass'y. Model-STD, DPS, XTP
  • 106
    715001259 LH Box Ass'y. Model-XT
    LH Box Ass'y. Model-XT
  • 108
    715001257 RH Box Ass'y. Model-STD, DPS, XTP
    RH Box Ass'y. Model-STD, DPS, XTP
  • 108
    715001257 RH Box Ass'y. Model-XT
    RH Box Ass'y. Model-XT
  • 110
    708300735 Bushing
    Bushing
  • 111
    708300736 Spacer
    Spacer
  • 112
    708300737 Bushing
    Bushing
  • 113
    708300751 Cargo Handle Ass'y
    Cargo Handle Ass'y
  • 114
    708300762 Lower Retainer Cable
    Lower Retainer Cable
  • 115
    293250240 Neoprene Seal
    Neoprene Seal
  • 116
    708300763 Upper Retainer Cable
    Upper Retainer Cable
  • 117
    708300879 Black Welded Lateral Support
    Black Welded Lateral Support
  • 118
    708300877 Black Lateral Support
    Black Lateral Support
  • 120
    708300780 Heat Deflector
    Heat Deflector
  • 121
    708300809 Heat Deflector Sheet
    Heat Deflector Sheet
  • 122
    708300810 Heat Deflector Sheet
    Heat Deflector Sheet
  • 123
    708300811 Heat Deflector Sheet
    Heat Deflector Sheet
  • 124
    708300812 Heat Deflector Sheet
    Heat Deflector Sheet
  • 128
    708300820 Yellow LH Rear Fender. Model-DPS
    Yellow LH Rear Fender. Model-DPS
  • 128
    708300821 Yellow RH Rear Fender. Model-DPS
    Yellow RH Rear Fender. Model-DPS
  • 128
    708300838 Magnesium LH Rear Fender. Model- Magnesium
    Magnesium LH Rear Fender. Model- Magnesium
  • 128
    708300839 Magnesium RH Rear Fender. Model- Magnesium
    Magnesium RH Rear Fender. Model- Magnesium
  • 128
    708300822 Red LH Rear Fender. Model-STD
    Red LH Rear Fender. Model-STD
  • 128
    708300823 Red RH Rear Fender. Model-STD
    Red RH Rear Fender. Model-STD
  • 128
    708300834 Camo LH Rear Fender. Model-XT Camo
    Camo LH Rear Fender. Model-XT Camo
  • 128
    708300835 Camo RH Rear Fender. Model-XT Camo
    Camo RH Rear Fender. Model-XT Camo
  • 128
    708300826 Red LH Rear Fender. Model-XT Red Model
    Red LH Rear Fender. Model-XT Red Model
  • 128
    708300827 Red RH Rear Fender. Model-XT Red Model
    Red RH Rear Fender. Model-XT Red Model
  • 128
    708300820 Yellow LH Rear Fender. Model-XT Yellow Model
    Yellow LH Rear Fender. Model-XT Yellow Model
  • 128
    708300821 Yellow RH Rear Fender. Model-XT Yellow Model
    Yellow RH Rear Fender. Model-XT Yellow Model
  • 128
    708300928 Black LH Rear Fender. Model-XTP
    Black LH Rear Fender. Model-XTP
  • 128
    708300929 Black RH Rear Fender. Model-XTP
    Black RH Rear Fender. Model-XTP
  • 129
    708300875 Black Box Support
    Black Box Support
  • 130
    708300902 Spacer
    Spacer
  • 131
    708301059 Spacer
    Spacer
  • 132
    708301136 Gaz Shock
    Gaz Shock
  • 133
    732610072 Push Nut
    Push Nut
