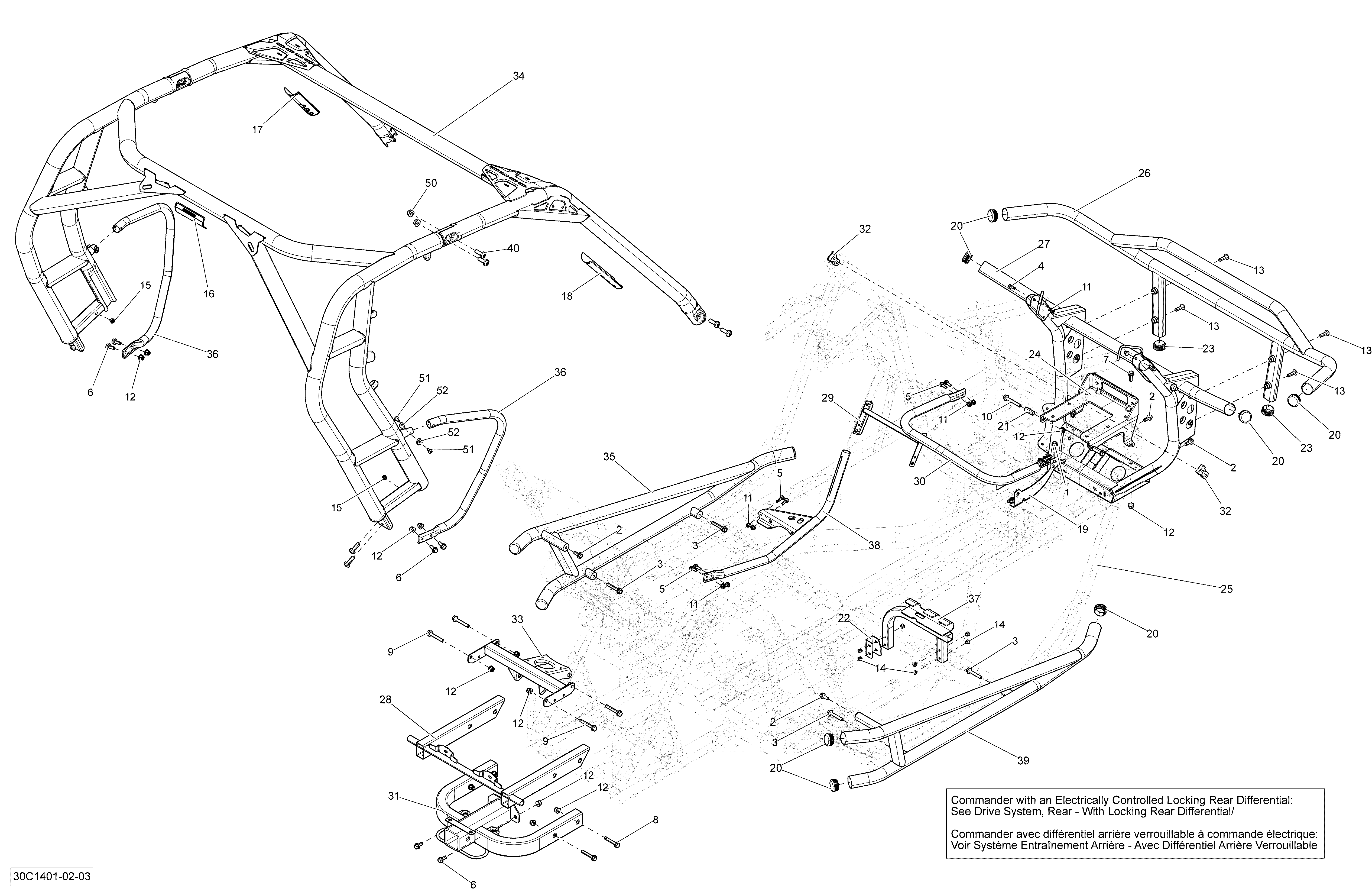

09- Frame для BRP Commander 1000, LTD - 2014
-
№АртикулНазвание
-
1207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
2207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
4207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
7207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
8207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
9207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
10207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
14293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
15293450274 InsertInsert
-
16704903492 Warning LabelWarning Label
-
17704903679 Warning LabelWarning Label
-
18704903680 Warning LabelWarning Label
-
19705201721 Front Differential SupportFront Differential Support
-
20705202455 CapCap
-
21705202499 BushingBushing
-
22705202602 Seat SupportSeat Support
-
23705202631 Tube CapTube Cap
-
24715000704 Winch PlateWinch Plate
-
25715002077 Frame Ass'yFrame Ass'y
-
26715000958 Black Front BumperBlack Front Bumper
-
27705202995 Front BumperFront Bumper
-
28705203325 Box HolderBox Holder
-
29705203330 Reinforcement PanelReinforcement Panel
-
30705203332 HandleHandle
-
31715001251 Trailer Hitch Ass'yTrailer Hitch Ass'y
-
32705203415 Binding BlockBinding Block
-
33705203538 Differential HolderDifferential Holder
-
34705203579 Cage Kit, Front And Rear SectionCage Kit, Front And Rear Section
-
36705203640 Black RH Side Protector Tube. RightBlack RH Side Protector Tube. Right
-
36705203637 Black LH Side Protector Tube. LeftBlack LH Side Protector Tube. Left
-
38705203828 HandleHandle
-
40250000624 Screw Torx M10 X 30Screw Torx M10 X 30
-
50233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
51250000439 Torx Truss Screw M6 X 14Torx Truss Screw M6 X 14
-
52705202223 Offset WasherOffset Washer
