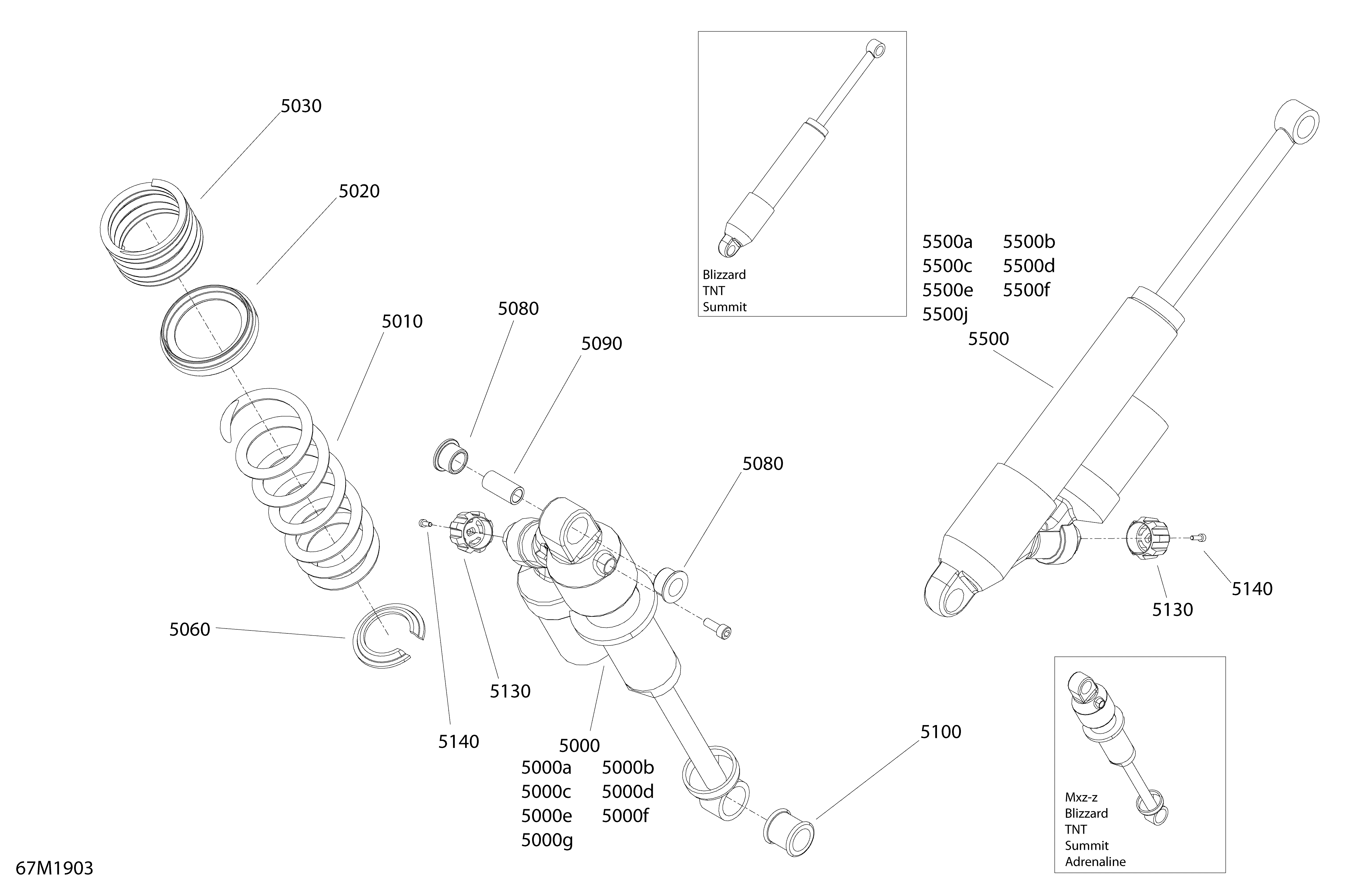

08- Rear Shocks - X для BRP Ski-Doo 003 - SUMMIT 850 E-TEC - 2019
-
№АртикулНазвание
-
5000503194749 Central ShockCentral Shock
-
5010503194182 Black, Spring. Except frame 175''Black, Spring. Except frame 175''
-
5010503194990 Spring. frame 175''Spring. frame 175''
-
5060503194270 Spring StopperSpring Stopper
-
5080503189117 Bushing UrethaneBushing Urethane
-
5090503189282 BushingBushing
-
5100503189271 BushingBushing
-
5150207005044 Hex. Screw M10 X 1.5 X 50. not shownHex. Screw M10 X 1.5 X 50. not shown
-
5160233601466 Elastic Locking Nut M10. not shownElastic Locking Nut M10. not shown
-
5500503193529 Rear Shock. Except frame 175''Rear Shock. Except frame 175''
-
5500503193838 Rear Shock. frame 175''Rear Shock. frame 175''
