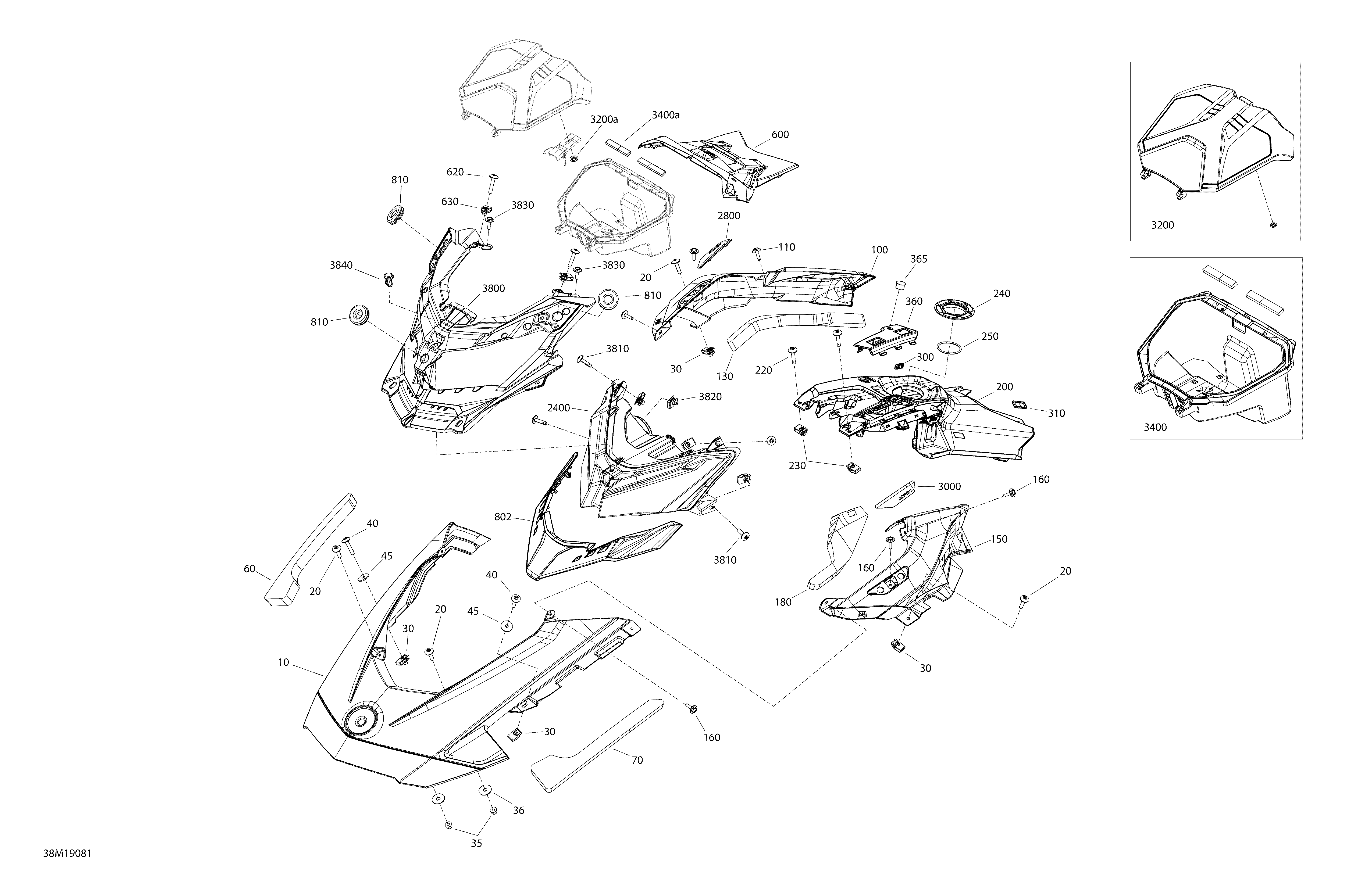

09- Hood - Hood Section для BRP Ski-Doo 002 - SUMMIT 600R E-TEC - 2019

  • №
    Артикул
    Название
  • 10
    517305744 Black, Front Hood. Deep Black
    Black, Front Hood. Deep Black
  • 10
    517306388 Front Hood. Gulfstream Blue
    Front Hood. Gulfstream Blue
  • 10
    517306635 Front Hood. Can-am Red
    Front Hood. Can-am Red
  • 20
    250000528 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 30
    250000958 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 35
    233151414 Nut Flange Hex. M5
    Nut Flange Hex. M5
  • 36
    250200040 Flat Washer
    Flat Washer
  • 40
    250000587 Torx Screw M5 X 26
    Torx Screw M5 X 26
  • 45
    250200166 Washer
    Washer
  • 60
    517305763 RH Front Hood Foam
    RH Front Hood Foam
  • 70
    517305764 LH Front Hood Foam
    LH Front Hood Foam
  • 100
    517306636 RH Hood. Can-am Red
    RH Hood. Can-am Red
  • 100
    517306722 RH Hood. Deep Black
    RH Hood. Deep Black
  • 100
    517306744 RH Hood. Gulfstream Blue
    RH Hood. Gulfstream Blue
  • 110
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 130
    517306001 RH Hood Foam
    RH Hood Foam
  • 150
    517306637 LH Hood. Can-am Red
    LH Hood. Can-am Red
  • 150
    517306721 LH Hood. Deep Black
    LH Hood. Deep Black
  • 150
    517306732 LH Hood. Gulfstream Blue
    LH Hood. Gulfstream Blue
  • 160
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 180
    517306002 LH Hood Foam
    LH Hood Foam
  • 200
    517306898 Rear Console
    Rear Console
  • 220
    250000587 Torx Screw M5 X 26
    Torx Screw M5 X 26
  • 230
    250000958 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 240
    517306602 Console Nut
    Console Nut
  • 250
    706002839 O-Ring
    O-Ring
  • 300
    517306587 RH Cap
    RH Cap
  • 310
    517306588 LH Cap
    LH Cap
  • 360
    517306583 LH Front Console
    LH Front Console
  • 365
    572051500 Cap
    Cap
  • 600
    517305782 Indicator Support
    Indicator Support
  • 620
    250000587 Torx Screw M5 X 26
    Torx Screw M5 X 26
  • 630
    250000958 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 802
    517305875 Wind Deflector. Deep Black Windshield
    Wind Deflector. Deep Black Windshield
  • 802
    517306697 Wind Deflector. Can-am Red Windshield
    Wind Deflector. Can-am Red Windshield
  • 810
    517303756 Grommet
    Grommet
  • 2400
    517305752 Headlamp
    Headlamp
  • 2800
    517306049 RH Hood Plate
    RH Hood Plate
  • 3000
    517306050 LH Hood Plate
    LH Hood Plate
  • 3200
    517305871 Deep Black, Cover Ass'y. Includes 3200 to 3200a
    Deep Black, Cover Ass'y. Includes 3200 to 3200a
  • 3200a
    732610072 Push Nut
    Push Nut
  • 3400
    517306058 Trunk Ass'y. Includes 3400 to 3400a
    Trunk Ass'y. Includes 3400 to 3400a
  • 3400a
    517305157 Seal Joint
    Seal Joint
  • 3800
    517305746 Deep Black, Headlamp Fairing
    Deep Black, Headlamp Fairing
  • 3810
    250000528 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 3820
    250000958 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 3830
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 3840
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
