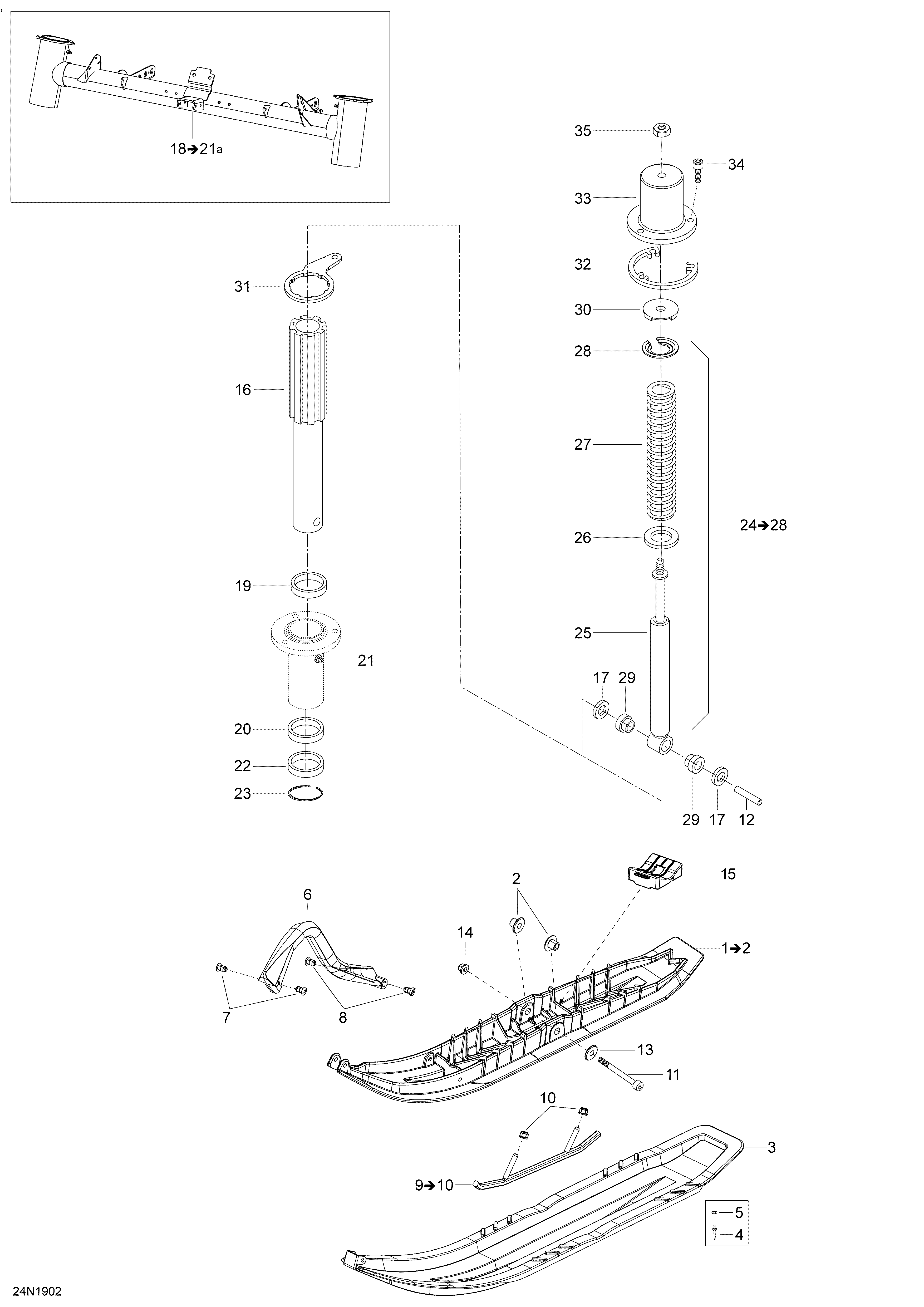

07- Front Suspension And Ski для BRP Ski-Doo 004 - Skandic WT 900 ACE - 2019
-
№АртикулНазвание
-
1505073281 Black, DS Ski 2Black, DS Ski 2
-
5505072976 Black, HandleBlack, Handle
-
6505071812 Retainer 17mm longRetainer 17mm long
-
7505072133 Retainer 23mm LongRetainer 23mm Long
-
8860201044 Carbide Runner Kit (Square Runner)Carbide Runner Kit (Square Runner)
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
12505073209 Ski AxleSki Axle
-
13503192496 WasherWasher
-
14233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
15505072594 Ski StopperSki Stopper
-
16505073200 Ski LegSki Leg
-
17505072579 SpacerSpacer
-
18505073967 Module Ass'y. Includes 18 to 21aModule Ass'y. Includes 18 to 21a
-
19414803100 Upper CushionUpper Cushion
-
20414803200 Lower CushionLower Cushion
-
21408200700 Grease FittingGrease Fitting
-
21a293450275 InsertInsert
-
22505072696 Seal OilSeal Oil
-
23505072698 CirclipCirclip
-
25505073046 ShockShock
-
26505072578 WasherWasher
-
27505072745 Black SpringBlack Spring
-
28505072619 Spring StopperSpring Stopper
-
29572034500 CushionCushion
-
30605354835 Rubber BumberRubber Bumber
-
31505073823 Steering ArmSteering Arm
-
32505073983 SpacerSpacer
-
33505072874 Suspension Cover LHSuspension Cover LH
-
33505072875 Suspension Cover RHSuspension Cover RH
-
34205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
35233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
