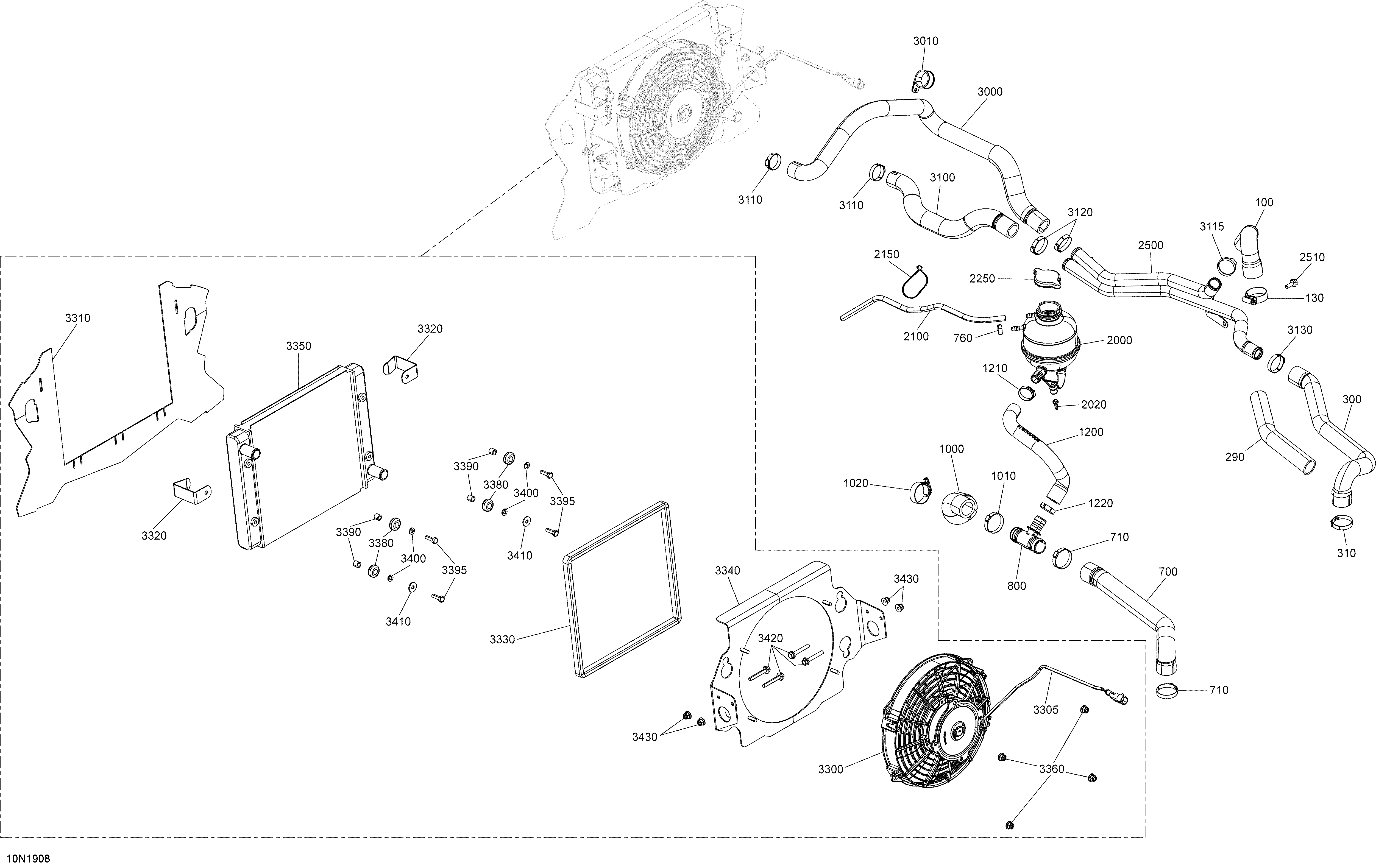

01- Cooling - 600 ACE для BRP Ski-Doo 003 - Skandic WT 600 ACE - 2019

  • №
    Артикул
    Название
  • 100
    509000932 Engine Outlet Hose
    Engine Outlet Hose
  • 130
    509000443 Aba Gear Clamp, 26-38 MM
    Aba Gear Clamp, 26-38 MM
  • 290
    509000513 Protector Tube 32 mm
    Protector Tube 32 mm
  • 300
    509001061 Hose
    Hose
  • 310
    509000529 Oetiker Gear Clamp, 36.5-706R
    Oetiker Gear Clamp, 36.5-706R
  • 700
    509001062 Radiator Return Hose
    Radiator Return Hose
  • 710
    509000529 Oetiker Gear Clamp, 36.5-706R
    Oetiker Gear Clamp, 36.5-706R
  • 760
    293650025 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 800
    509000372 T-Fitting
    T-Fitting
  • 1000
    509001060 Engine Inlet Hose
    Engine Inlet Hose
  • 1010
    509000529 Oetiker Gear Clamp, 36.5-706R
    Oetiker Gear Clamp, 36.5-706R
  • 1020
    509000443 Aba Gear Clamp, 26-38 MM
    Aba Gear Clamp, 26-38 MM
  • 1200
    509001063 Filling Hose
    Filling Hose
  • 1210
    509000442 Oeticker Gear Clamp, 25.6-706R
    Oeticker Gear Clamp, 25.6-706R
  • 1220
    293650099 Crimp Clamp
    Crimp Clamp
  • 2000
    509000881 Cooling Tank
    Cooling Tank
  • 2020
    241151640 Hex. Flanged Screw K50 X 2.24 X 16
    Hex. Flanged Screw K50 X 2.24 X 16
  • 2100
    509000775 Hose
    Hose
  • 2150
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 2250
    509000180 Pressure Cap
    Pressure Cap
  • 2489
    710000992 Clip
    Clip
  • 2500
    509000800 Water Pipe
    Water Pipe
  • 2510
    207561634 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 3000
    509001000 Air Radiator Hose
    Air Radiator Hose
  • 3010
    605627008 Clamp With Rubber D=30
    Clamp With Rubber D=30
  • 3100
    509001001 Frint Air Radiator Hose
    Frint Air Radiator Hose
  • 3110
    293650099 Crimp Clamp
    Crimp Clamp
  • 3115
    293650141 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 3120
    509000735 Clamp
    Clamp
  • 3130
    509000735 Clamp
    Clamp
  • 3300
    509000838 Cooling Fan
    Cooling Fan
  • 3310
    509001002 Air Deflector
    Air Deflector
  • 3320
    509000703 Deflector Clip
    Deflector Clip
  • 3330
    509000718 Insulation
    Insulation
  • 3340
    509000791 Radiator support. Includes 3340 to 3340a
    Radiator support. Includes 3340 to 3340a
  • 3340a
    250300027 Clinch Stud M6 X 20
    Clinch Stud M6 X 20
  • 3350
    509000980 Radiator
    Radiator
  • 3360
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 3380
    293720053 Grommet
    Grommet
  • 3390
    605453745 Bushing
    Bushing
  • 3395
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 3410
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 3420
    207664044 Hex. Flanged Screw M6 X 40
    Hex. Flanged Screw M6 X 40
  • 3430
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
