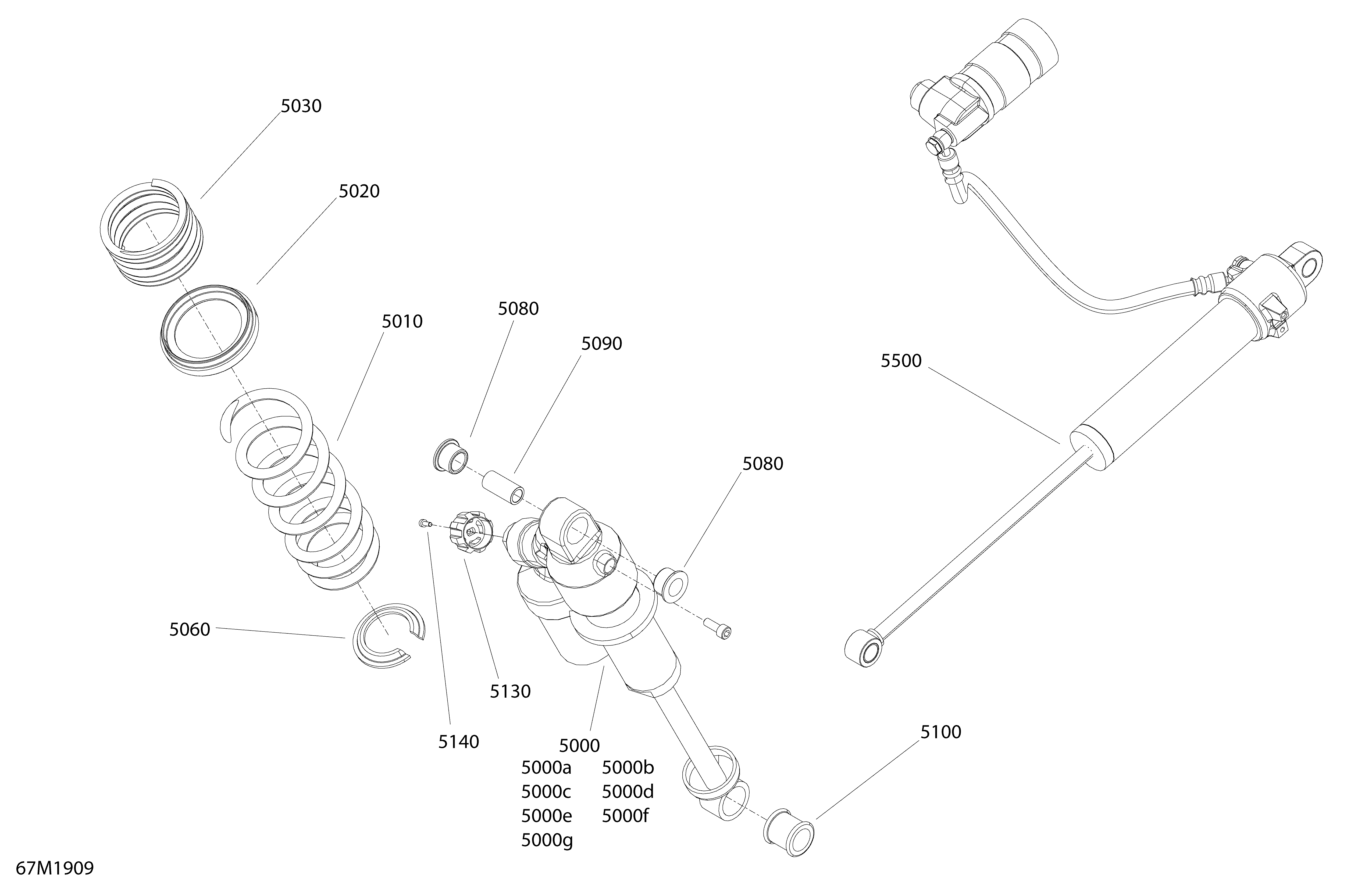

08- Rear Shocks - X для BRP Ski-Doo 008 - RENEGADE 900 ACE Turbo - 2019
-
№АртикулНазвание
-
5000503193536 Central ShockCentral Shock
-
5000a415093807 O-Ring. Not ShownO-Ring. Not Shown
-
5000b415093806 Piston Ring. Not ShownPiston Ring. Not Shown
-
5000c505070398 Air Valve. Not ShownAir Valve. Not Shown
-
5000d505070399 Screw. Not ShownScrew. Not Shown
-
5000e505070400 O-Ring. Not ShownO-Ring. Not Shown
-
5000f415093804 O-Ring. Not ShownO-Ring. Not Shown
-
5000g415130165 Base Valve. Not ShownBase Valve. Not Shown
-
5010503193837 Black, Spring (Short)Black, Spring (Short)
-
5020503191281 Spring SpacerSpring Spacer
-
5030503193160 Deep Black, SpringDeep Black, Spring
-
5060503194270 Spring StopperSpring Stopper
-
5080503189117 Bushing UrethaneBushing Urethane
-
5090503189282 BushingBushing
-
5100503189271 BushingBushing
-
5150207005044 Hex. Screw M10 X 1.5 X 50. Not ShownHex. Screw M10 X 1.5 X 50. Not Shown
-
5160233601466 Elastic Locking Nut M10. Not ShownElastic Locking Nut M10. Not Shown
-
5500503194669 Rear Shock. With Quick Adjust SystemRear Shock. With Quick Adjust System
-
5500503194670 Rear Shock. Without Quick Adjust SystemRear Shock. Without Quick Adjust System
-
5130503193033 Shock Adjuster Knob. Without Quick Adjust SystemShock Adjuster Knob. Without Quick Adjust System
-
5140250000644 Allen Screw M3 X 0.5 X 10. Without Quick Adjust SystemAllen Screw M3 X 0.5 X 10. Without Quick Adjust System
