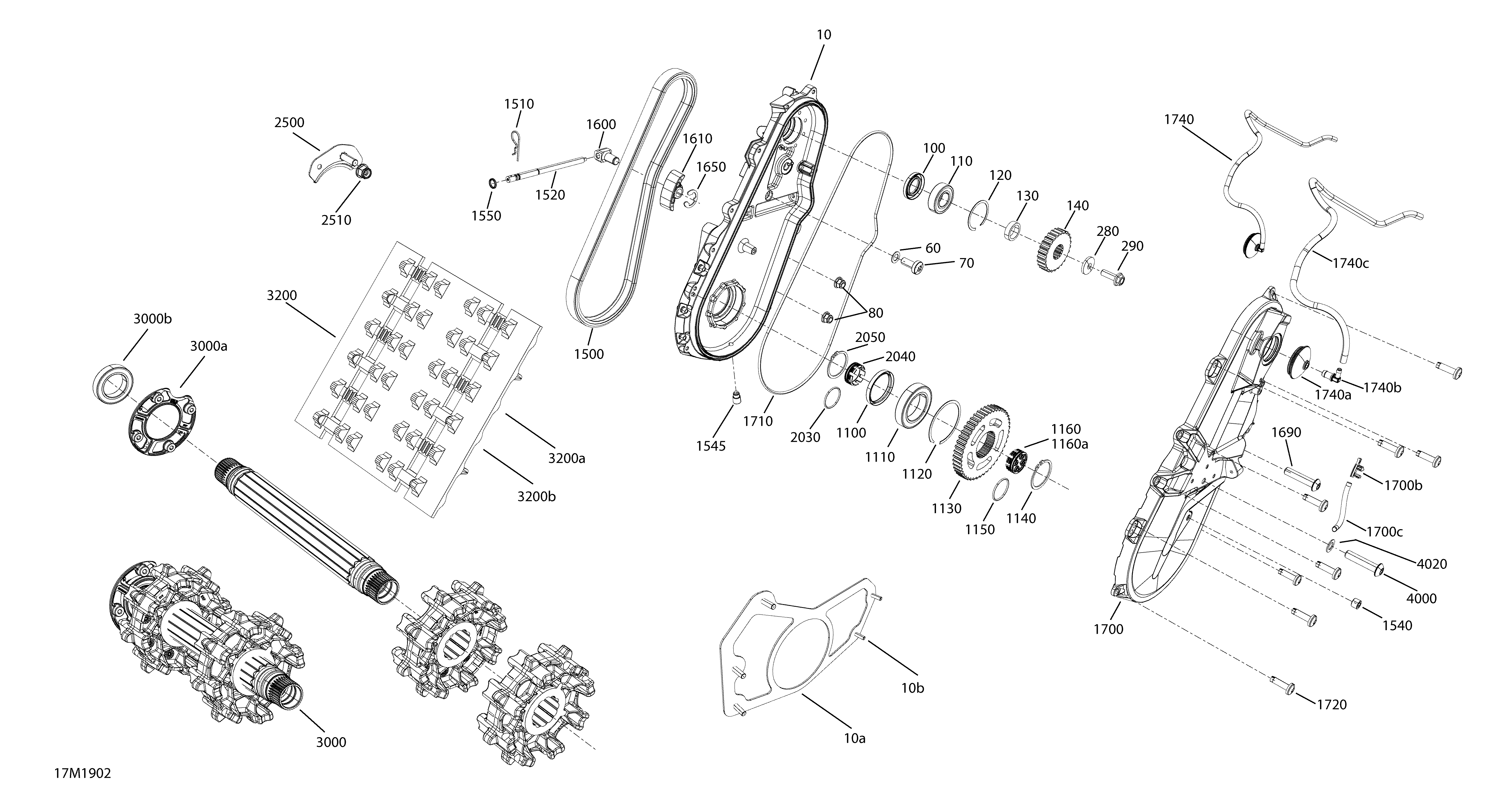

05- Drive Enduro - 850 ETEC для BRP Ski-Doo 006 - RENEGADE 850 E-TEC - Enduro - 2019

  • №
    Артикул
    Название
  • 10
    504153718 Chaincase Ass'y
    Chaincase Ass'y
  • 60
    504082900 Washer
    Washer
  • 70
    250000740 Torx Screw M8 X 20, Scotch Grip
    Torx Screw M8 X 20, Scotch Grip
  • 80
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 100
    293200168 Oil Seal
    Oil Seal
  • 110
    293350115 Ball Bearing
    Ball Bearing
  • 120
    504152576 Circlip
    Circlip
  • 130
    504152628 Shim
    Shim
  • 140
    504084300 Sprocket 25 Teeth (Large)
    Sprocket 25 Teeth (Large)
  • 280
    504152784 Spring Washer M10
    Spring Washer M10
  • 290
    207503046 Hex. Flanged Screw M10 X 30, Scotch Grip
    Hex. Flanged Screw M10 X 30, Scotch Grip
  • 1100
    293200159 Oil Seal
    Oil Seal
  • 1110
    293350059 Ball Bearing
    Ball Bearing
  • 1120
    504152582 Circlip
    Circlip
  • 1130
    504152593 Sprocket, 45 Teeth
    Sprocket, 45 Teeth
  • 1140
    504152572 Circlip
    Circlip
  • 1150
    293300201 O-Ring
    O-Ring
  • 1160
    504153696 Magnetic Cap Ass'y. Includes 1160 to 1160a
    Magnetic Cap Ass'y. Includes 1160 to 1160a
  • 1160a
    504153697 Magnetic Cap
    Magnetic Cap
  • 1500
    504152631 Drive Chain, 108 Links
    Drive Chain, 108 Links
  • 1510
    414575600 Hair Pin
    Hair Pin
  • 1520
    504153760 Adjustment Screw
    Adjustment Screw
  • 1540
    250500012 Allen Drive Plug 1/8-27 PTF
    Allen Drive Plug 1/8-27 PTF
  • 1545
    504153704 Magnetic Plug
    Magnetic Plug
  • 1550
    293300202 O-Ring
    O-Ring
  • 1600
    504153559 Tensioner
    Tensioner
  • 1610
    504153312 Slider Chain
    Slider Chain
  • 1650
    293370105 Circlip
    Circlip
  • 1690
    250000764 Hex. Button Head Screw M8 X 1.25 X 35
    Hex. Button Head Screw M8 X 1.25 X 35
  • 1700
    504153891 Chain Case Cover Ass'y. Includes 1700 to 1700c
    Chain Case Cover Ass'y. Includes 1700 to 1700c
  • 1700b
    515178223 Clip
    Clip
  • 1700c
    415130141 Sleeve
    Sleeve
  • 1710
    293300199 O-Ring
    O-Ring
  • 1720
    250001012 Torx T-30 Pan HD Taptite M6X20
    Torx T-30 Pan HD Taptite M6X20
  • 1740
    504153535 Cap Ass'y. Includes 1740 to 1740c
    Cap Ass'y. Includes 1740 to 1740c
  • 1740a
    504152860 Cap
    Cap
  • 1740b
    414580700 Male Connector
    Male Connector
  • 1740c
    415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)
    Hose, Polyurethane, iD 5.7mm (10M Roll)
  • 2030
    293300201 O-Ring
    O-Ring
  • 2040
    504153697 Magnetic Cap
    Magnetic Cap
  • 2050
    504152572 Circlip
    Circlip
  • 2500
    504153695 Bearing Housing Ass'y
    Bearing Housing Ass'y
  • 2510
    233281414 Hex. Flanged Elastic Nut M8 X 1.25
    Hex. Flanged Elastic Nut M8 X 1.25
  • 3000
    504153830 Axle Drive Ass'y. Includes 3000 to 3000b
    Axle Drive Ass'y. Includes 3000 to 3000b
  • 3000a
    504153426 Retaining Ring
    Retaining Ring
  • 3000b
    293350059 Ball Bearing
    Ball Bearing
  • 3200
    504153101 Track Ass'y 15'' X 137'' X 1.25''. Includes 3200 to 3200b
    Track Ass'y 15'' X 137'' X 1.25''. Includes 3200 to 3200b
  • 3200a
    415129528 Track Guide
    Track Guide
  • 3200b
    415129529 Cleat
    Cleat
  • 4000
    250000764 Hex. Button Head Screw M8 X 1.25 X 35
    Hex. Button Head Screw M8 X 1.25 X 35
  • 4020
    504082900 Washer
    Washer
