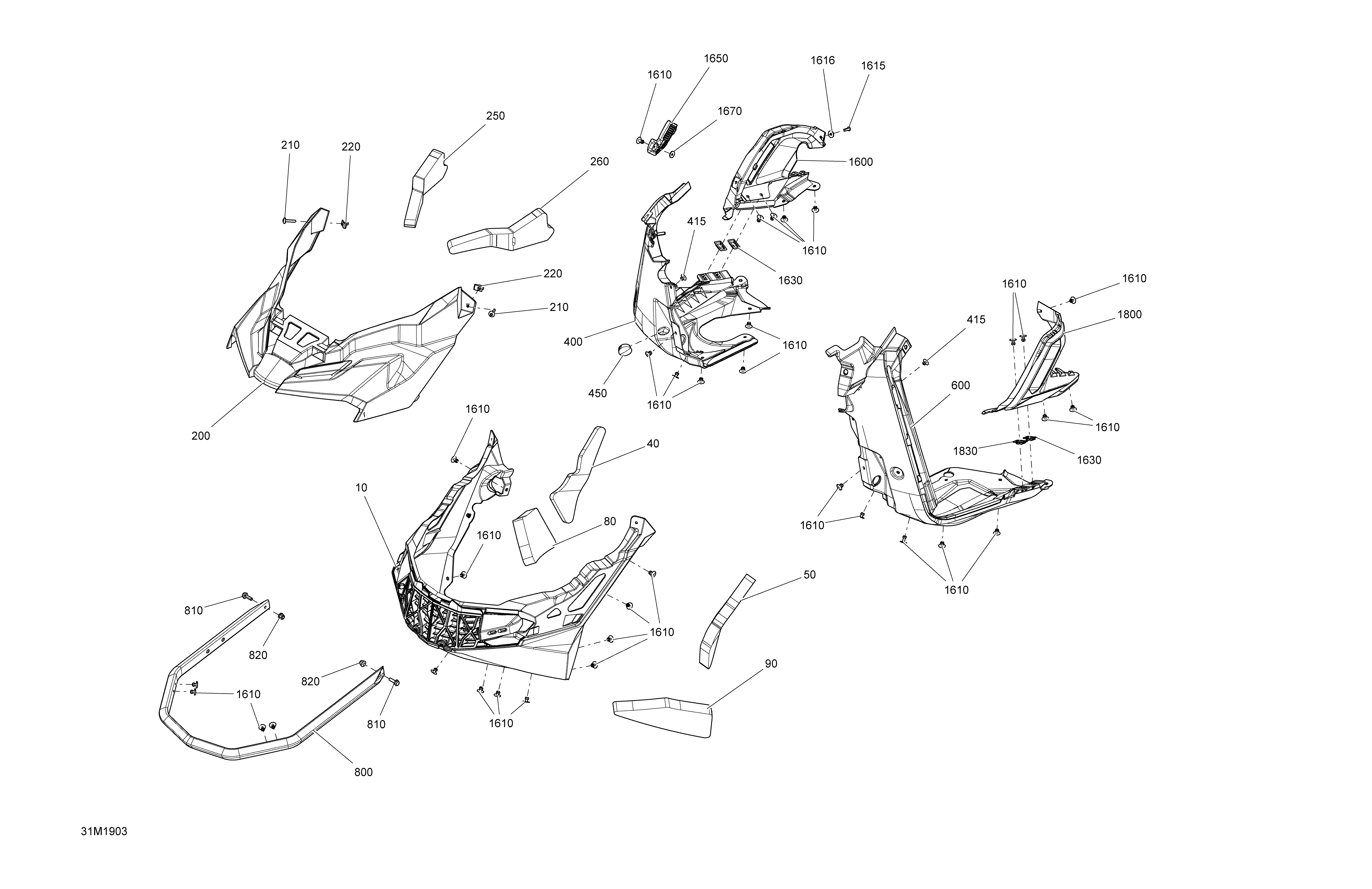

09- Bottom Pan для BRP Ski-Doo 004 - RENEGADE 600 ACE - 2019
-
№АртикулНазвание
-
10502007654 Orange Front Bottom PanOrange Front Bottom Pan
-
40502007243 RH Bottom Pan Upper FoamRH Bottom Pan Upper Foam
-
50502007244 LH Bottom Pan Upper FoamLH Bottom Pan Upper Foam
-
80502007245 RH Bottom Pan Lower FoamRH Bottom Pan Lower Foam
-
90502007246 LH Bottom Pan Lower FoamLH Bottom Pan Lower Foam
-
200502007656 Orange Bottom Pan CapOrange Bottom Pan Cap
-
210250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
220250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
250502007263 RH Bottom Pan Cap FoamRH Bottom Pan Cap Foam
-
260502007264 LH Bottom Pan Cap FoamLH Bottom Pan Cap Foam
-
400502007340 Black RH Bottom PanBlack RH Bottom Pan
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
415293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
450414916600 Black Nylon CapBlack Nylon Cap
-
600502007175 Black LH Bottom PanBlack LH Bottom Pan
-
610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
615293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
800502007281 Black Front BumperBlack Front Bumper
-
810207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
820233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
830293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1600502007297 Black - RH Side Bottom Pan PanelBlack - RH Side Bottom Pan Panel
-
1610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1615250000652 Socket Screw M5 X .80 X 16Socket Screw M5 X .80 X 16
-
1616250200025 Washer M5Washer M5
-
1620293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1630517305109 Rivet PlateRivet Plate
-
1650517305280 Stopper BumperStopper Bumper
-
1660293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1670517124300 WasherWasher
-
1800502007298 Black - LH Side Bottom Pan PanelBlack - LH Side Bottom Pan Panel
-
1810293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1820293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1830517305109 Rivet PlateRivet Plate
