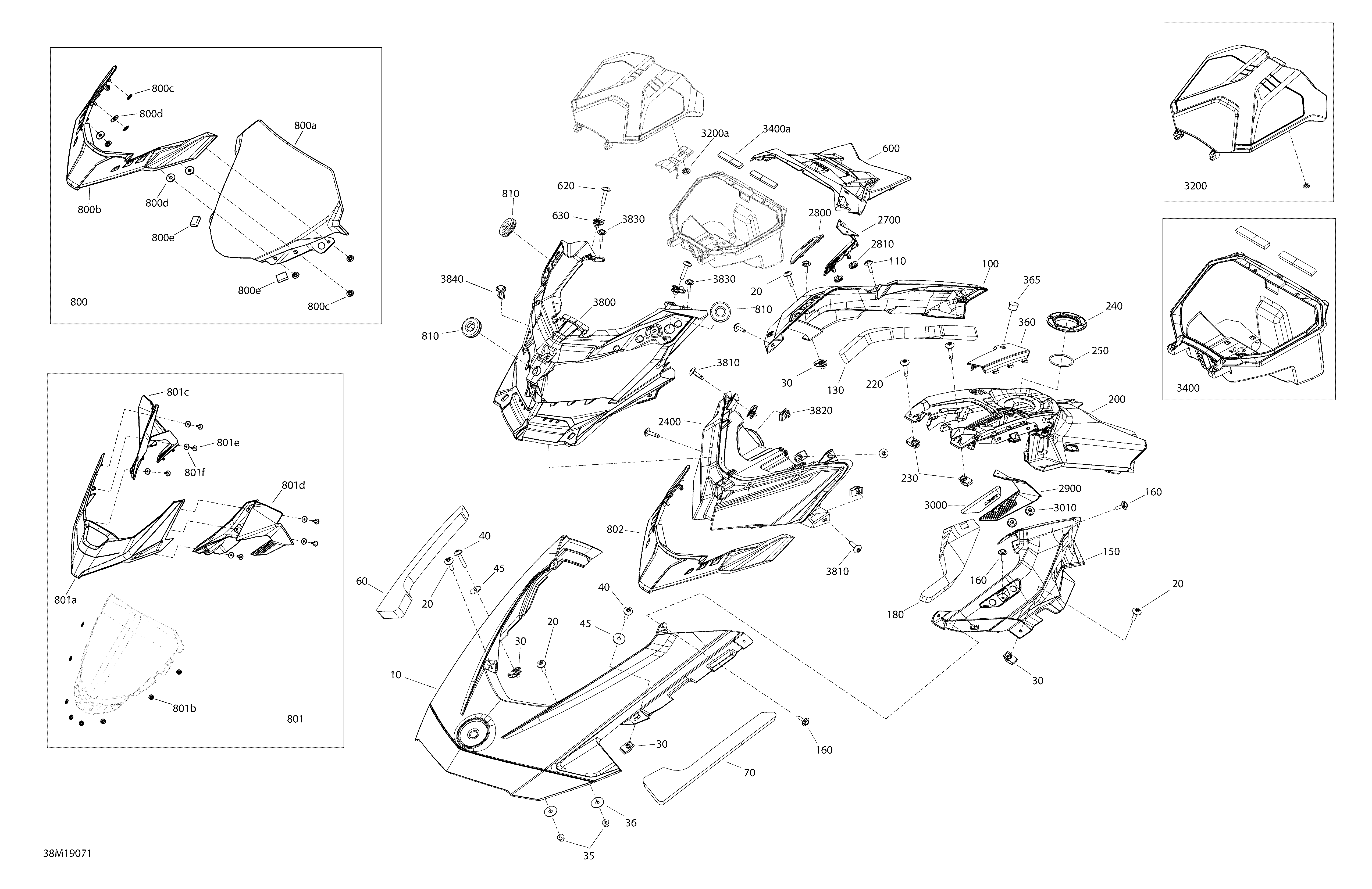

09- Hood - Hood Section для BRP Ski-Doo 002 - RENEGADE 600R E-TEC - Adrenaline_X - 2019

  • №
    Артикул
    Название
  • 10
    517305744 Black, Front Hood. Deep Black
    Black, Front Hood. Deep Black
  • 10
    517306237 White, Front Hood. Bright White
    White, Front Hood. Bright White
  • 10
    517306629 Front Hood. Orange
    Front Hood. Orange
  • 10
    517306635 Front Hood. Can-am Red
    Front Hood. Can-am Red
  • 20
    250000528 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 30
    250000958 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 35
    233151414 Nut Flange Hex. M5
    Nut Flange Hex. M5
  • 36
    250200040 Flat Washer
    Flat Washer
  • 40
    250000587 Torx Screw M5 X 26
    Torx Screw M5 X 26
  • 45
    250200166 Washer
    Washer
  • 60
    517305763 RH Front Hood Foam
    RH Front Hood Foam
  • 70
    517305764 LH Front Hood Foam
    LH Front Hood Foam
  • 100
    517306630 RH Hood. Orange
    RH Hood. Orange
  • 100
    517306636 RH Hood. Can-am Red
    RH Hood. Can-am Red
  • 100
    517306722 RH Hood. Deep Black
    RH Hood. Deep Black
  • 100
    517306737 RH Hood. Bright White
    RH Hood. Bright White
  • 110
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 130
    517306001 RH Hood Foam
    RH Hood Foam
  • 150
    517306631 LH Hood. Orange
    LH Hood. Orange
  • 150
    517306637 LH Hood. Can-am Red
    LH Hood. Can-am Red
  • 150
    517306721 LH Hood. Deep Black
    LH Hood. Deep Black
  • 150
    517306727 LH Hood. Bright White
    LH Hood. Bright White
  • 160
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 180
    517306002 LH Hood Foam
    LH Hood Foam
  • 200
    517306898 Rear Console. Package XRS
    Rear Console. Package XRS
  • 220
    250000587 Torx Screw M5 X 26
    Torx Screw M5 X 26
  • 230
    250000958 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 240
    517306602 Console Nut
    Console Nut
  • 250
    706002839 O-Ring
    O-Ring
  • 360
    517306580 LH Front Console
    LH Front Console
  • 365
    572051500 Cap
    Cap
  • 600
    517305781 Indicator Support, Deep Black. Package X
    Indicator Support, Deep Black. Package X
  • 600
    517306108 Indicator Support. Package Adrenaline
    Indicator Support. Package Adrenaline
  • 600
    517306117 Indicator Support. Package XRS
    Indicator Support. Package XRS
  • 620
    250000587 Torx Screw M5 X 26
    Torx Screw M5 X 26
  • 630
    250000958 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 800
    860201448 Low Windshield Kit, , Black. Package X. Includes 800 to 800e
    Low Windshield Kit, , Black. Package X. Includes 800 to 800e
  • 800a
    517306423 Windshield 360. Package X
    Windshield 360. Package X
  • 800b
    517305749 Windshield Support, Deep Black. Package X
    Windshield Support, Deep Black. Package X
  • 800c
    732610072 Push Nut. Package X
    Push Nut. Package X
  • 800d
    250200024 Rubber Washer 5 mm. Package X
    Rubber Washer 5 mm. Package X
  • 800e
    293250087 Gasket, Neoprene. Package X
    Gasket, Neoprene. Package X
  • 801
    860201258 Medium Windshield Kit. Package Adrenaline. Includes 801 to 801f
    Medium Windshield Kit. Package Adrenaline. Includes 801 to 801f
  • 801a
    517306183 Deep Black, Windshield Support. Package Adrenaline
    Deep Black, Windshield Support. Package Adrenaline
  • 800b
    732610072 Push Nut. Package Adrenaline
    Push Nut. Package Adrenaline
  • 801c
    517306063 Deflector RH, Black 63% Light Transm.. Package Adrenaline
    Deflector RH, Black 63% Light Transm.. Package Adrenaline
  • 801d
    517306064 Deflector LH, Black 63% Light Transm.. Package Adrenaline
    Deflector LH, Black 63% Light Transm.. Package Adrenaline
  • 801e
    250000889 Screw M4 X 16. Package Adrenaline
    Screw M4 X 16. Package Adrenaline
  • 801f
    517306524 Rubber Washer 4 MM. Package Adrenaline
    Rubber Washer 4 MM. Package Adrenaline
  • 802
    517305875 Wind Deflector. Package XRS - Deep Black
    Wind Deflector. Package XRS - Deep Black
  • 802
    517306764 Wind Deflector. Package XRS - Orange
    Wind Deflector. Package XRS - Orange
  • 810
    517303756 Grommet
    Grommet
  • 2400
    517305752 Headlamp
    Headlamp
  • 2800
    517305776 RH Deflector Black 63% Light Transm.. Package X
    RH Deflector Black 63% Light Transm.. Package X
  • 2800
    517306049 RH Hood Plate. Package XRS
    RH Hood Plate. Package XRS
  • 2810
    517302841 Grommet. Except Package XRS
    Grommet. Except Package XRS
  • 3000
    517305777 Deflector LH, Black 63% Light Transm.. Package X
    Deflector LH, Black 63% Light Transm.. Package X
  • 3000
    517306050 LH Hood Plate. Package XRS
    LH Hood Plate. Package XRS
  • 3010
    517302841 Grommet. Except Package XRS
    Grommet. Except Package XRS
  • 3200
    517305871 Deep Black, Cover Ass'y. Includes 3200 to 3200a
    Deep Black, Cover Ass'y. Includes 3200 to 3200a
  • 3200a
    732610072 Push Nut
    Push Nut
  • 3400
    517306058 Trunk Ass'y. Includes 3400 to 3400a
    Trunk Ass'y. Includes 3400 to 3400a
  • 3400a
    517305157 Seal Joint
    Seal Joint
  • 3800
    517305746 Deep Black, Headlamp Fairing. Deep Black Item
    Deep Black, Headlamp Fairing. Deep Black Item
  • 3800
    517306634 Headlamp Fairing. Orange Item
    Headlamp Fairing. Orange Item
  • 3810
    250000528 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 3820
    250000958 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 3830
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 3840
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
