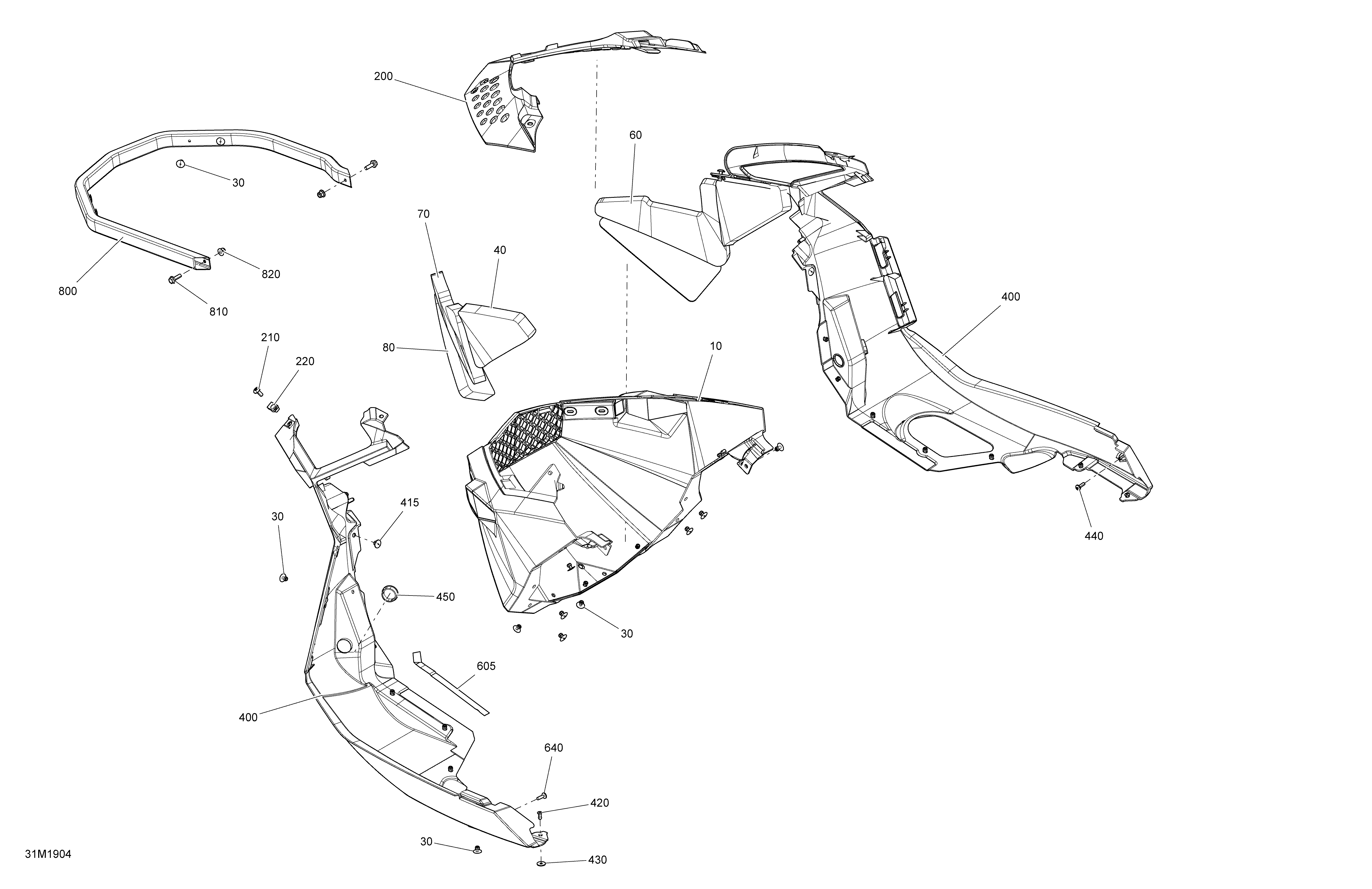

09- Bottom Pan для BRP Ski-Doo 001 - RENEGADE 600 CARB - 2019

  • №
    Артикул
    Название
  • 10
    502006971 Black, Front Bottom Pan
    Black, Front Bottom Pan
  • 30
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 40
    502007210 RH Foam Upper
    RH Foam Upper
  • 50
    502007211 LH Foam Upper
    LH Foam Upper
  • 60
    502007212 RH Middle Foam
    RH Middle Foam
  • 70
    502007213 LH Middle Foam
    LH Middle Foam
  • 80
    502007214 RH Lower Foam
    RH Lower Foam
  • 90
    502007215 LH Lower Foam
    LH Lower Foam
  • 200
    502007068 Deep Black Bottom Pan Cap
    Deep Black Bottom Pan Cap
  • 210
    250000705 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 220
    250100198 Panel Nut , M6 X 1.0
    Panel Nut , M6 X 1.0
  • 400
    502006831 Black, RH Bottom Pan
    Black, RH Bottom Pan
  • 410
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 415
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 420
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 430
    517124300 Washer
    Washer
  • 440
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 450
    414916600 Black Nylon Cap
    Black Nylon Cap
  • 600
    502007252 Black, LH Bottom Pan
    Black, LH Bottom Pan
  • 605
    293250087 Gasket, Neoprene
    Gasket, Neoprene
  • 610
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 615
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 620
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 630
    517124300 Washer
    Washer
  • 640
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 650
    414916600 Black Nylon Cap
    Black Nylon Cap
  • 800
    502007116 Black Front Bumper
    Black Front Bumper
  • 810
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 820
    233261416 Elastic Flanged Nut M6 X 1.0
    Elastic Flanged Nut M6 X 1.0
  • 830
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
