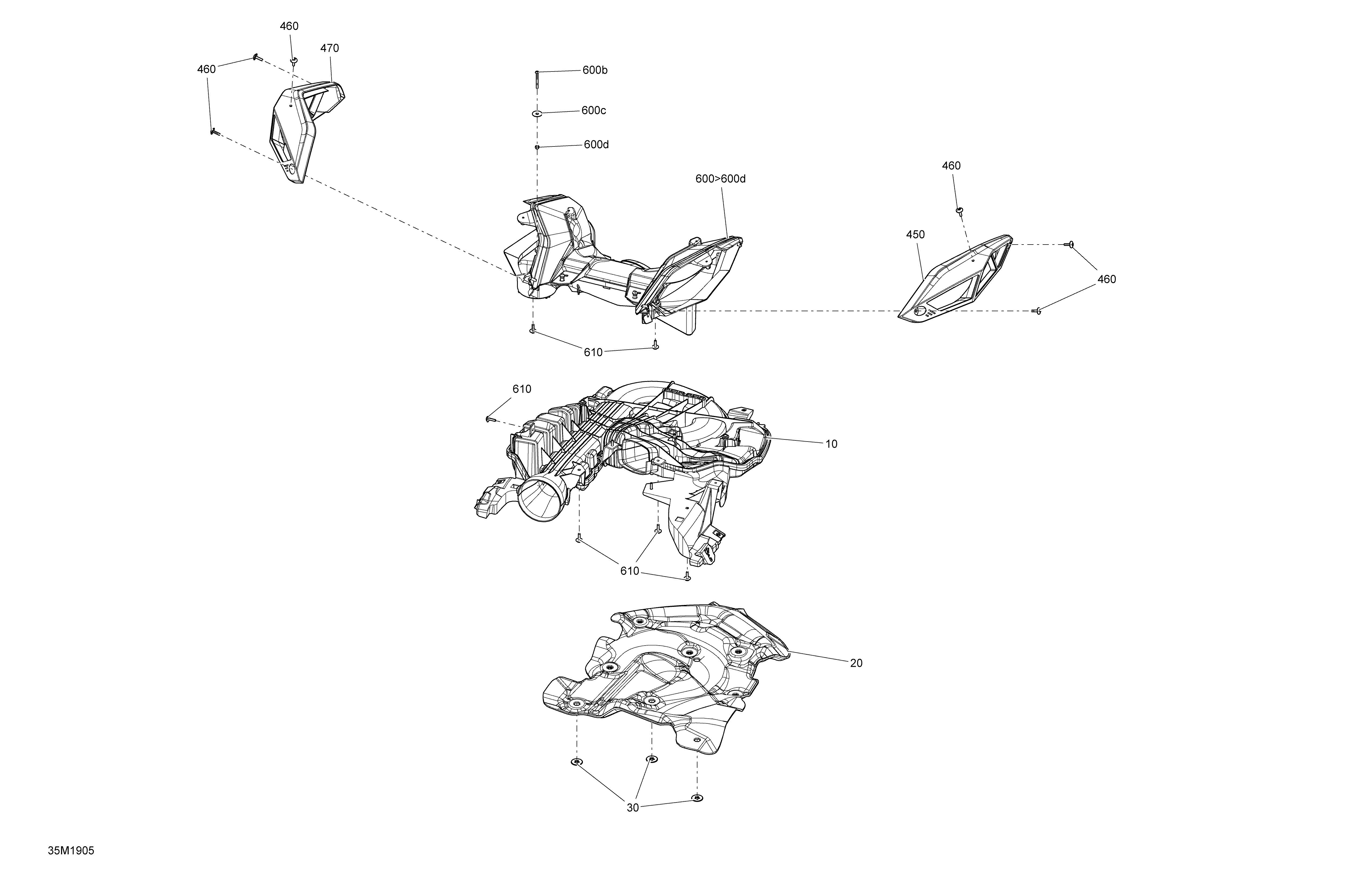

02- Air Intake - 850 E-TEC для BRP Ski-Doo 003 - MXZ 850 E-TEC - 2019
-
№АртикулНазвание
-
10508000874 Secondary ChamberSecondary Chamber
-
20508000914 Acoustic CoverAcoustic Cover
-
30508000853 Push NutPush Nut
-
50508000967 FilterFilter
-
450508000806 RH Air Filter. Except Packages Blizzard & TNTRH Air Filter. Except Packages Blizzard & TNT
-
450508000906 Air Filter. Packages Blizzard & TNTAir Filter. Packages Blizzard & TNT
-
460250000889 Screw M4 X 16Screw M4 X 16
-
470508000807 LH Air Filter. Except Packages Blizzard & TNTLH Air Filter. Except Packages Blizzard & TNT
-
470508000905 Air Filter. Packages Blizzard & TNTAir Filter. Packages Blizzard & TNT
-
480250000889 Screw M4 X 16Screw M4 X 16
-
600508000915 Air Duct Assembly. Includes 600 to 600dAir Duct Assembly. Includes 600 to 600d
-
600a250000725 Screw M4 X 16Screw M4 X 16
-
600b205444056 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
600c224060201 Flat WasherFlat Washer
-
600d232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
610250000725 Screw M4 X 16Screw M4 X 16
