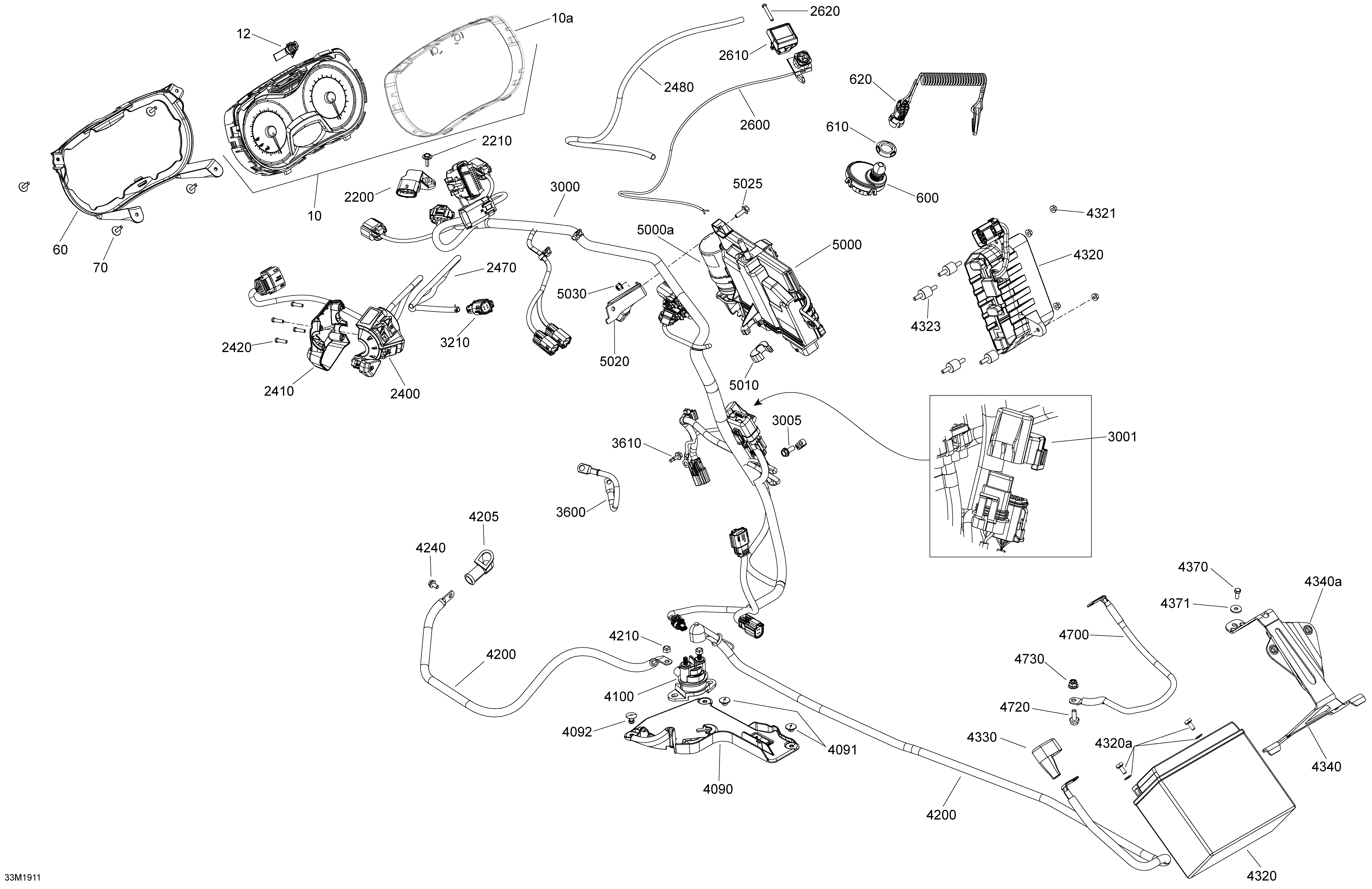

10- Electrical - 600R E-TEC для BRP Ski-Doo 002 - MXZ 600R E-TEC - 2019

-
№АртикулНазвание
-
10515177860 Indicator. Except Package TNT. Includes 10 to 10aIndicator. Except Package TNT. Includes 10 to 10a
-
10515177920 Indicator. Package TNT. Includes 10 to 10aIndicator. Package TNT. Includes 10 to 10a
-
10a415129349 LensLens
-
12515178326 Button. Package TNTButton. Package TNT
-
60515177866 SupportSupport
-
70250000725 Screw M4 X 16Screw M4 X 16
-
600515178225 DESS Switch, RFIDDESS Switch, RFID
-
610278002963 Safety Nut (DESS Switch)Safety Nut (DESS Switch)
-
620515178286 Grey - RF Key Ass'yGrey - RF Key Ass'y
-
2200707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
2210250000725 Screw M4 X 16Screw M4 X 16
-
2400515178102 LH Housing. Package TNTLH Housing. Package TNT
-
2400515178196 LH Housing. Except Package TNTLH Housing. Except Package TNT
-
2410515177147 Housing PlateHousing Plate
-
2420250000671 Torx ScrewTorx Screw
-
2470415130141 SleeveSleeve
-
2480415130141 SleeveSleeve
-
2600515177931 Emergency Stop SwitchEmergency Stop Switch
-
2610515177310 Emergency Stop Switch SupportEmergency Stop Switch Support
-
2620250000263 Torx Screw #8-18Torx Screw #8-18
-
3000515178547 Chassis Wiring Harness. Except Package XRSIDChassis Wiring Harness. Except Package XRSID
-
3000515178548 Chassis Wiring Harness. Package XRSIDChassis Wiring Harness. Package XRSID
-
3001515178435 Diagnostic CapDiagnostic Cap
-
3005250001062 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3210515178177 4 Circuits Female Housing4 Circuits Female Housing
-
3600515178248 Ground WireGround Wire
-
3610250000911 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
-
4100278003012 Starter Relay. Except Package XRSIDStarter Relay. Except Package XRSID
-
4200515178553 Positive Wire. Except Package XRSIDPositive Wire. Except Package XRSID
-
4205710000495 Protector Cap. Except Package XRSIDProtector Cap. Except Package XRSID
-
4210232561414 Elastic Stop Nut M6. Except Package XRSIDElastic Stop Nut M6. Except Package XRSID
-
4240207551044 Flanged Hex. Screw M5 X 10. Except Package XRSIDFlanged Hex. Screw M5 X 10. Except Package XRSID
-
4320415129898 Lead Battery 18 Amperes. Except Package XRSID. Includes 4320 to 4320aLead Battery 18 Amperes. Except Package XRSID. Includes 4320 to 4320a
-
4320a250000282 Battery Bolt Kit. Except Package XRSIDBattery Bolt Kit. Except Package XRSID
-
4330710001817 Protector Cap. Except Package XRSIDProtector Cap. Except Package XRSID
-
4340515177870 Battery Strip. Except Package XRSID. Includes 4340 to 4340aBattery Strip. Except Package XRSID. Includes 4340 to 4340a
-
4340a293450275 Insert. Except Package XRSIDInsert. Except Package XRSID
-
4370207151244 Hex. Screw M5 X 12. Except Package XRSIDHex. Screw M5 X 12. Except Package XRSID
-
4371391301600 Washer. Except Package XRSIDWasher. Except Package XRSID
-
4700515178155 Ground Wire. Except Package XRSIDGround Wire. Except Package XRSID
-
4720207661644 Hex. Flanged Screw M6 X 16. Except Package XRSIDHex. Flanged Screw M6 X 16. Except Package XRSID
-
4730233261416 Elastic Flanged Nut M6 X 1.0. Except Package XRSIDElastic Flanged Nut M6 X 1.0. Except Package XRSID
-
5000512061191 Ignition Module. Includes 5000 to 5000aIgnition Module. Includes 5000 to 5000a
-
5000a515177272 CapacitorCapacitor
-
5010515178430 Rubber StopperRubber Stopper
-
5020515178159 Module SupportModule Support
-
5025207651646 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
-
5030233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
