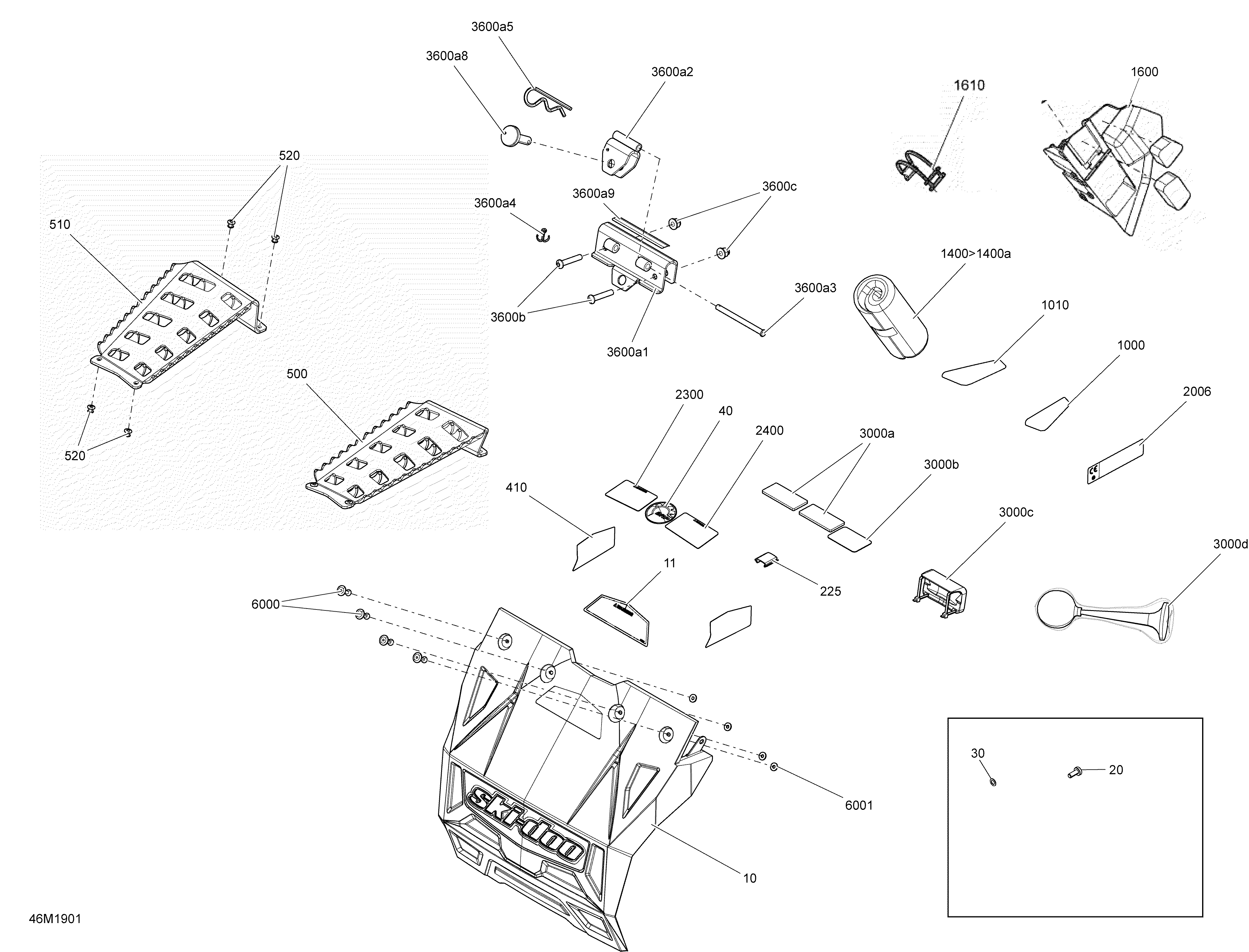

09- Utilities - 600 ACE - Europe для BRP Ski-Doo 002 - GRAND TOURING 600 ACE - 2019
-
№АртикулНазвание
-
10520001342 Snow Guard, Black W Alloy Grey InsertSnow Guard, Black W Alloy Grey Insert
-
11516005175 Warning Decal, TrackWarning Decal, Track
-
40516008738 Logo BRP, 48mmLogo BRP, 48mm
-
225520000829 Radiator TrimRadiator Trim
-
400520000883 Yellow, RH Rear ReflectorYellow, RH Rear Reflector
-
410520000882 Yellow, LH Rear ReflectorYellow, LH Rear Reflector
-
500520000887 RH FootrestRH Footrest
-
510520000888 LH FootrestLH Footrest
-
520390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000520001237 Yellow, RH Front ReflectorYellow, RH Front Reflector
-
1010520001236 Yellow, LH Front ReflectorYellow, LH Front Reflector
-
1400520001591 Tools KitTools Kit
-
2006516008823 Europe DecalEurope Decal
-
2300516006908 Warning DecalWarning Decal
-
2400516005587 RH Warning Decal, SafetyRH Warning Decal, Safety
-
3000a520000271 Amber, ReflectorAmber, Reflector
-
3000b415037900 White, ReflectorWhite, Reflector
-
3000c520000871 Deep Black, Reflector SupportDeep Black, Reflector Support
-
3000d549011291 HornHorn
-
3400520001894 Operator Guide English. Not ShownOperator Guide English. Not Shown
-
6000293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
6001517124300 WasherWasher
