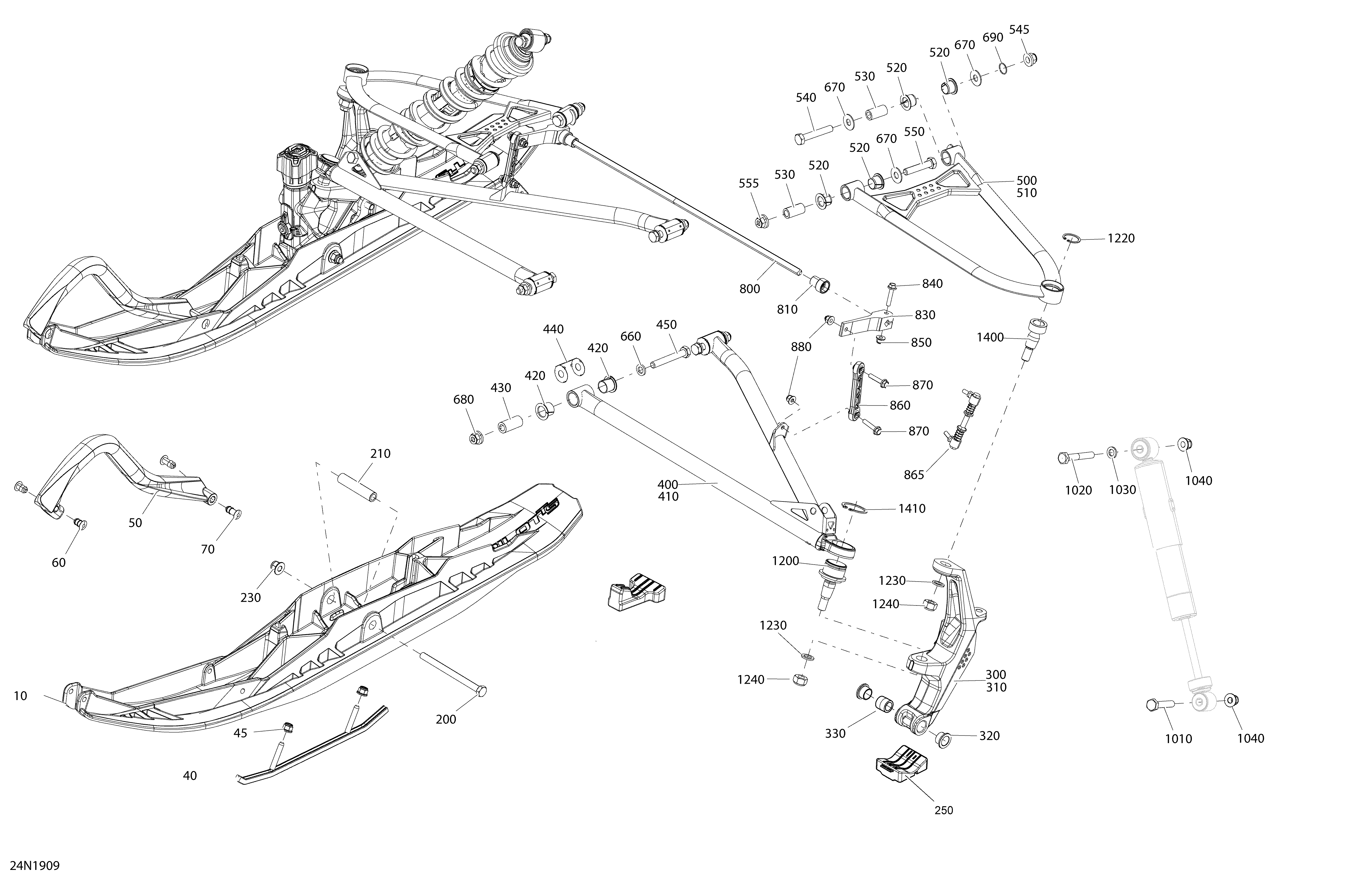

07- Front Suspension And Ski - 800R E-TEC для BRP Ski-Doo 005 - EXPEDITION XTREME 800R E-TEC - 2019
-
№АртикулНазвание
-
10505073281 Black, DS Ski 2Black, DS Ski 2
-
40860201044 Carbide Runner Kit (Square Runner)Carbide Runner Kit (Square Runner)
-
45233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
50505072976 Black, HandleBlack, Handle
-
60505071812 Retainer 17mm longRetainer 17mm long
-
70505072133 Retainer 23mm LongRetainer 23mm Long
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210506133300 SpacerSpacer
-
220503192496 Washer. not shownWasher. not shown
-
230233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
250505072594 Ski StopperSki Stopper
-
300505073630 Black, LH Ski LegBlack, LH Ski Leg
-
310505073631 Black Ski Leg RHBlack Ski Leg RH
-
320505072690 Leg BushingLeg Bushing
-
330505071999 SpacerSpacer
-
400505073584 Lower RH Arm, Black EpoxyLower RH Arm, Black Epoxy
-
410505073583 Lower LH Arm, Black EpoxyLower LH Arm, Black Epoxy
-
420505073330 CushionCushion
-
430505072209 BushingBushing
-
440505072634 Wear PlateWear Plate
-
450250001024 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
500505073588 Uper LH Arm, Black EpoxyUper LH Arm, Black Epoxy
-
510505073589 Uper RH Arm, Black EpoxyUper RH Arm, Black Epoxy
-
520505073329 Swivel BushingSwivel Bushing
-
530505072143 BushingBushing
-
540250000290 Screw Hex. M10 X 1.25 X 60Screw Hex. M10 X 1.25 X 60
-
550250000289 Screw Hex. M10 X 1.25 X 50Screw Hex. M10 X 1.25 X 50
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505072602 StabilisatorStabilisator
-
810505072064 BushingBushing
-
830505072394 Stabilisator LeverStabilisator Lever
-
840207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
850233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
860505072204 Sway Bar Double Joint LinkSway Bar Double Joint Link
-
870207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
880233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1010207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
1020207006544 Hex. Screw M10 X 1.5 X 65Hex. Screw M10 X 1.5 X 65
-
1030503189564 WasherWasher
-
1040233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
1200505073636 Ball JointBall Joint
-
1220293370070 CirclipCirclip
-
1230234021410 Flat Washer 12 mmFlat Washer 12 mm
-
1240250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370035 CirclipCirclip
