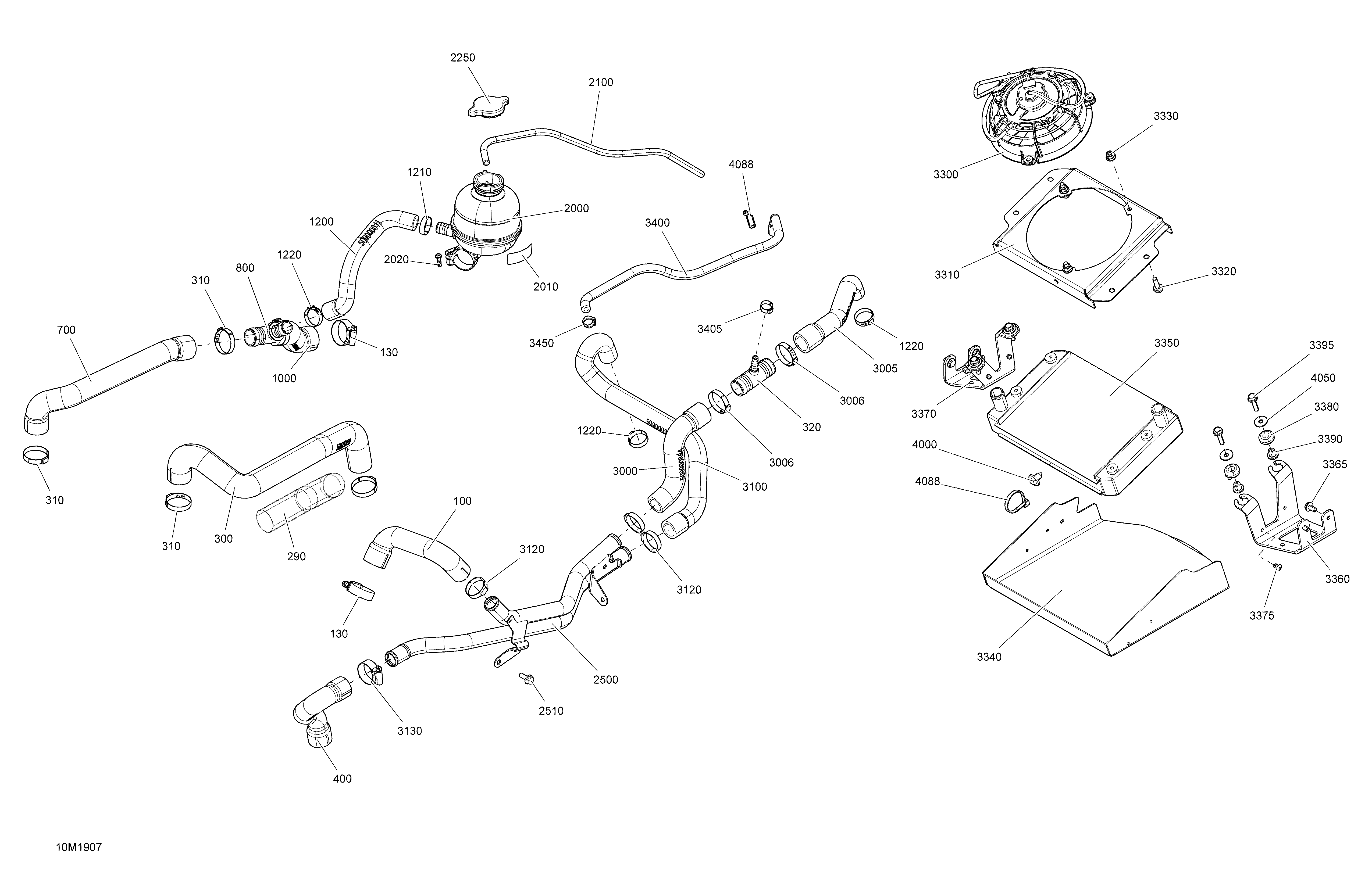

01- Cooling - 600 ACE - Europe для BRP Ski-Doo 002 - EXPEDITION SPORT 600 ACE - 2019
-
№АртикулНазвание
-
100509000932 Engine Outlet HoseEngine Outlet Hose
-
130509000443 Aba Gear Clamp, 26-38 MMAba Gear Clamp, 26-38 MM
-
290509000513 Protector Tube 32 mmProtector Tube 32 mm
-
295509000513 Protector Tube 32 mmProtector Tube 32 mm
-
300509000859 Radiator HoseRadiator Hose
-
310509000529 Oetiker Gear Clamp, 36.5-706ROetiker Gear Clamp, 36.5-706R
-
400509000888 Engine Outlet HoseEngine Outlet Hose
-
700509000697 Radiator Return HoseRadiator Return Hose
-
710509000529 Oetiker Gear Clamp, 36.5-706ROetiker Gear Clamp, 36.5-706R
-
800509000372 T-FittingT-Fitting
-
1000509000921 Radiator HoseRadiator Hose
-
1010509000529 Oetiker Gear Clamp, 36.5-706ROetiker Gear Clamp, 36.5-706R
-
1020509000443 Aba Gear Clamp, 26-38 MMAba Gear Clamp, 26-38 MM
-
1200509000811 Filling HoseFilling Hose
-
1210509000442 Gear Clamp, 25.6-706RGear Clamp, 25.6-706R
-
1220293650099 Crimp ClampCrimp Clamp
-
2010516005904 Warning DecalWarning Decal
-
2020241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
2100509000775 HoseHose
-
2250509000180 Pressure CapPressure Cap
-
3000509000854 Radiator HoseRadiator Hose
-
3005509000862 Radiator HoseRadiator Hose
-
3006509000162 Gear ClampGear Clamp
-
3010293650099 Crimp ClampCrimp Clamp
-
3100509000855 Radiator HoseRadiator Hose
-
3110293650099 Crimp ClampCrimp Clamp
-
3120293650141 Oetiker Gear ClampOetiker Gear Clamp
-
3300709200573 FanFan
-
3310509000714 Fan SupportFan Support
-
3320207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3330233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
3340509000835 Air Inlet DeflectorAir Inlet Deflector
-
3350509000488 RadiatorRadiator
-
3360509000933 SupportSupport
-
3365207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3370509000934 SupportSupport
-
3380293720053 GrommetGrommet
-
3390293900100 BushingBushing
-
3395207562544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3410293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
4000293730040 Mount DartMount Dart
-
4010293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4050250200082 Flat WasherFlat Washer
