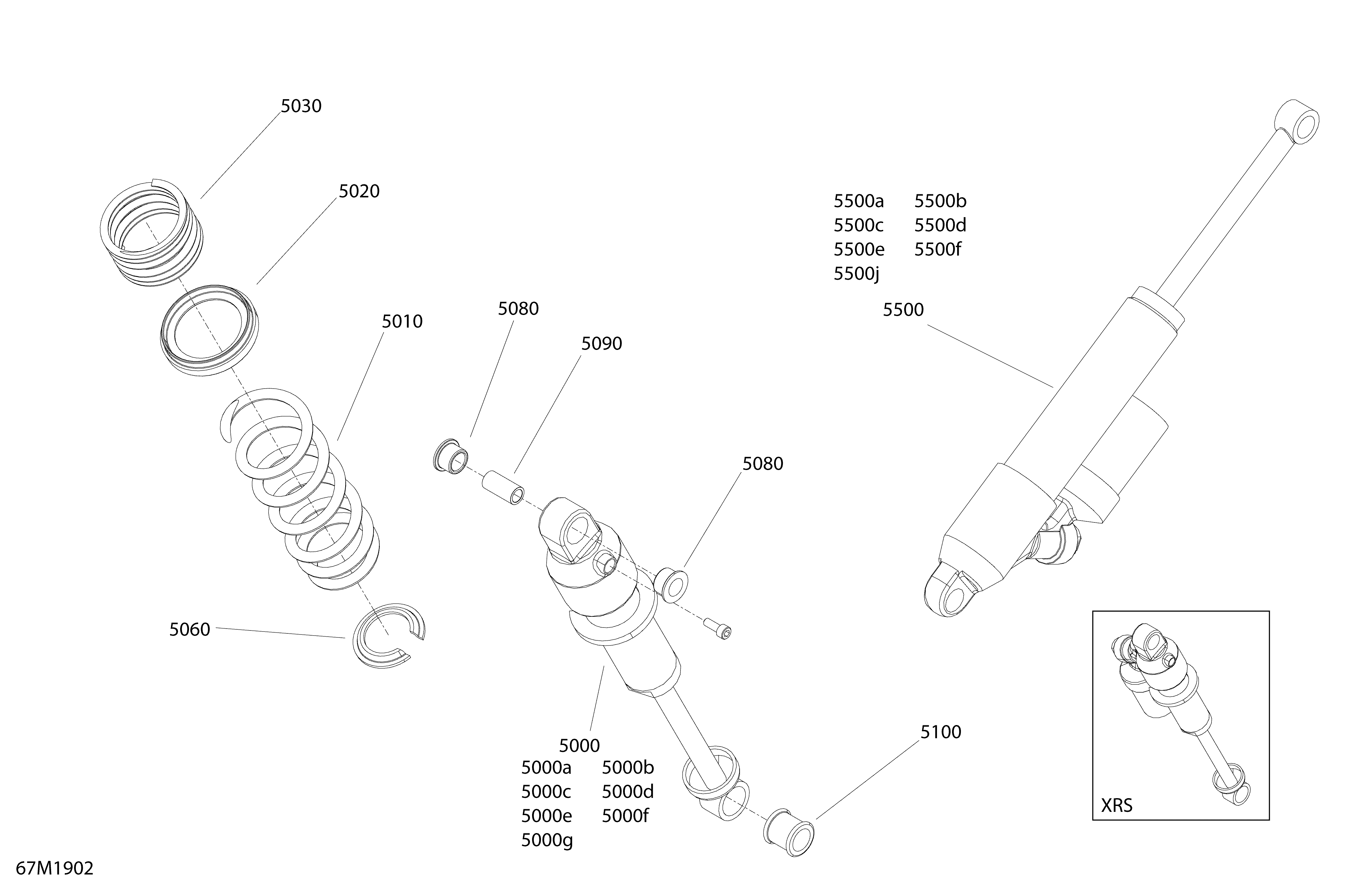

08- Rear Shocks - X - Europe для BRP Ski-Doo 002 - BACKCOUNTRY 850 E-TEC - 2019
-
№АртикулНазвание
-
5000503194749 Central ShockCentral Shock
-
5010503193837 Black, Spring (Short)Black, Spring (Short)
-
5020503191281 Spring SpacerSpring Spacer
-
5030503193067 Black, Spring (Short)Black, Spring (Short)
-
5060503194270 Spring StopperSpring Stopper
-
5080503189117 Bushing UrethaneBushing Urethane
-
5090503189282 BushingBushing
-
5100503189271 BushingBushing
-
5150207005044 Hex. Screw M10 X 1.5 X 50. not shownHex. Screw M10 X 1.5 X 50. not shown
-
5160233601466 Elastic Locking Nut M10. not shownElastic Locking Nut M10. not shown
-
5500503194368 Rear Shock. Includes 5500 to 5500jRear Shock. Includes 5500 to 5500j
-
5500a415093807 O-Ring. not shownO-Ring. not shown
-
5500b415093806 Piston Ring. not shownPiston Ring. not shown
-
5500c505070398 Air Valve. not shownAir Valve. not shown
-
5500d505070399 Screw. not shownScrew. not shown
-
5500e505070400 O-Ring. not shownO-Ring. not shown
-
5500f415093804 O-Ring. not shownO-Ring. not shown
-
5500j415130165 Base Valve. not shownBase Valve. not shown
