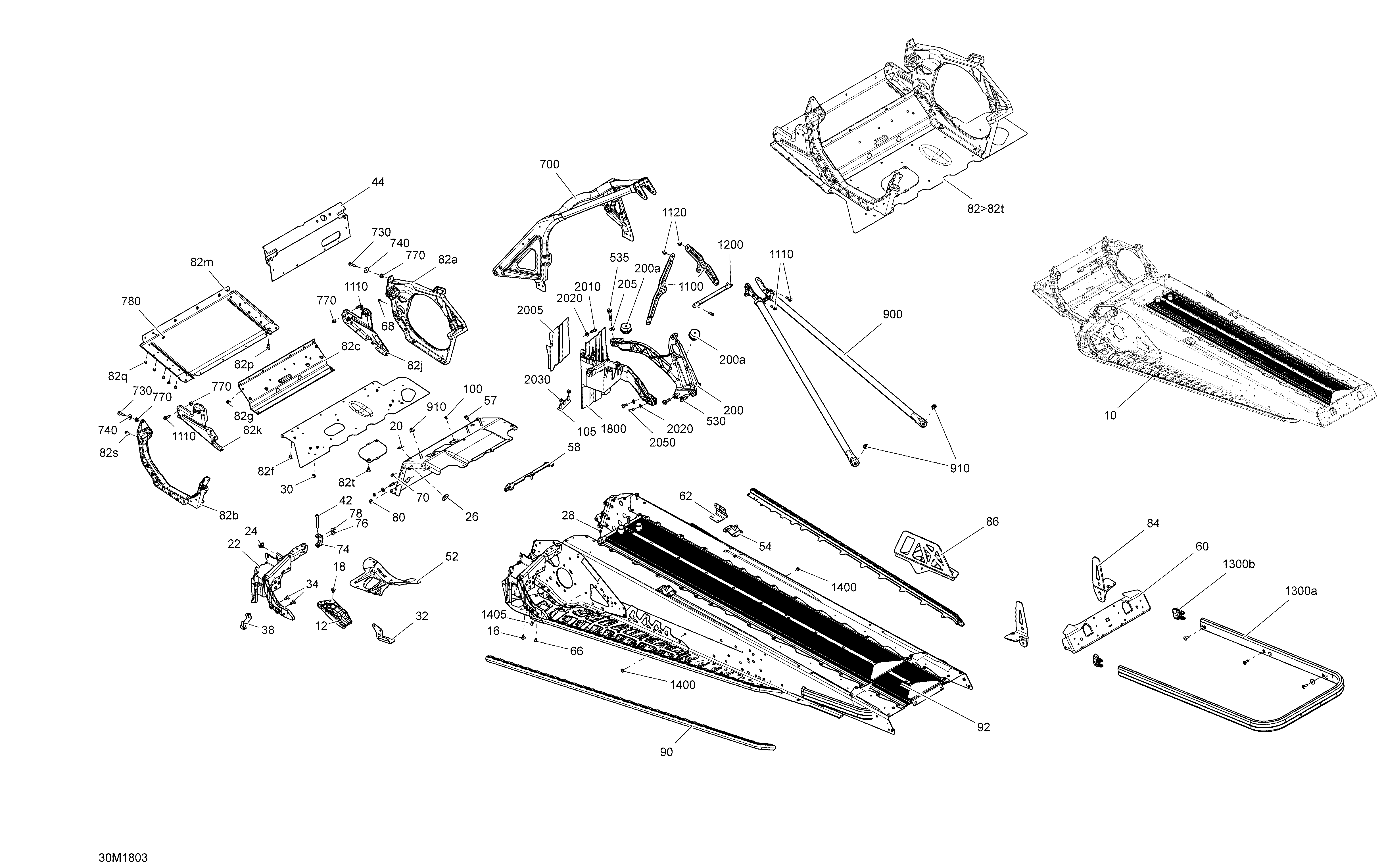

09- Frame Tundra - 600 ACE для BRP Ski-Doo 2- TUNDRA 600 ACE - 2018

  • №
    Артикул
    Название
  • 10
    415130103 Frame Ass'y Tundra 154. Vehicles 137''. Includes 10 to 92a
    Frame Ass'y Tundra 154. Vehicles 137''. Includes 10 to 92a
  • 10
    415130102 Frame Ass'y Tundra 137. Vehicles 154''. Includes 10 to 96
    Frame Ass'y Tundra 137. Vehicles 154''. Includes 10 to 96
  • 12
    518325782 RH Deflector
    RH Deflector
  • 12
    518325783 LH Deflector
    LH Deflector
  • 16
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 18
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip
    Hex. Flanged Screw M6 X 12, Scotch Grip
  • 20
    518325560 Adhesive Patch
    Adhesive Patch
  • 22
    518326820 LH Stirup
    LH Stirup
  • 24
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 26
    293730052 Black Plug
    Black Plug
  • 28
    293150203 Rivet AVIBULB 3/16
    Rivet AVIBULB 3/16
  • 30
    293150174 Hemlock Rivet, 6.4 mm
    Hemlock Rivet, 6.4 mm
  • 32
    518326960 Support
    Support
  • 34
    250000536 Tork Screw M6 X 18
    Tork Screw M6 X 18
  • 38
    518326986 Attach
    Attach
  • 42
    250000535 Torx Screw M8 X 55
    Torx Screw M8 X 55
  • 44
    518326140 Engine Support
    Engine Support
  • 52
    518324874 RH Reinforcement
    RH Reinforcement
  • 52
    518324875 LH Reinforcement
    LH Reinforcement
  • 54
    518325973 RH Rear Base
    RH Rear Base
  • 54
    518325974 LH Rear Base
    LH Rear Base
  • 57
    293450275 Insert
    Insert
  • 58
    518326656 Seal
    Seal
  • 60
    518327105 Rear Cap
    Rear Cap
  • 62
    518326482 RH Support
    RH Support
  • 66
    390909100 Avex Rivet
    Avex Rivet
  • 68
    293150144 Stavex Rivet
    Stavex Rivet
  • 70
    293150146 Henrob Rivet
    Henrob Rivet
  • 74
    518326961 U-Attach
    U-Attach
  • 76
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 78
    250000534 Tork Screw M6 X 16
    Tork Screw M6 X 16
  • 80
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 82>82t
    518327006 E-Module. Includes 82 to 82t
    E-Module. Includes 82 to 82t
  • 82a
    518326328 RH Side Member
    RH Side Member
  • 82b
    518326330 LH Side Member
    LH Side Member
  • 82c
    518326198 Front Member
    Front Member
  • 82f
    293150120 Hemlock Rivet 6.5 mm
    Hemlock Rivet 6.5 mm
  • 82g
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 82j
    518325949 RH Front Member
    RH Front Member
  • 82k
    518325950 LH Front Member
    LH Front Member
  • 82m
    518325951 Front Bottom Plate
    Front Bottom Plate
  • 82q
    390909200 Avex Rivet
    Avex Rivet
  • 82s
    210261650 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 82t
    250000767 Torx Truss Screw M6 X 12
    Torx Truss Screw M6 X 12
  • 84
    518325955 RH Slide Bracket. Vehicles 154''
    RH Slide Bracket. Vehicles 154''
  • 84
    518325956 LH Slide Bracket. Vehicles 154''
    LH Slide Bracket. Vehicles 154''
  • 86
    518328787 RH Bracket. Vehicles 137''
    RH Bracket. Vehicles 137''
  • 86
    518328788 LH Bracket. Vehicles 137''
    LH Bracket. Vehicles 137''
  • 90
    518325377 RH Roller. Vehicles 137''
    RH Roller. Vehicles 137''
  • 90
    518325378 LH Roller. Vehicles 137''
    LH Roller. Vehicles 137''
  • 90
    518325159 RH Roller. Vehicles 154''
    RH Roller. Vehicles 154''
  • 90
    518325160 LH Roller. Vehicles 154''
    LH Roller. Vehicles 154''
  • 92>92a
    518326641 Rear Radiator Ass'y, 137''. Vehicles 137''. Includes 92 to 92a
    Rear Radiator Ass'y, 137''. Vehicles 137''. Includes 92 to 92a
  • 92>92a
    518326692 Rear Radiator Ass'y, 154''. Vehicles 154''. Includes 92 to 92a
    Rear Radiator Ass'y, 154''. Vehicles 154''. Includes 92 to 92a
  • 100
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 105
    518326550 Retaining Plate
    Retaining Plate
  • 200
    518327535 Brace Ass'y. Includes 200 to 200a
    Brace Ass'y. Includes 200 to 200a
  • 200a
    512060295 Rubber Mount
    Rubber Mount
  • 205
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 530
    250000351 Hex. Flanged Screw M8 X 25, Nylon
    Hex. Flanged Screw M8 X 25, Nylon
  • 535
    207584034 Hex. Flanged Screw, Scotch Grip
    Hex. Flanged Screw, Scotch Grip
  • 700
    518326557 Front Member, S Module
    Front Member, S Module
  • 730
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 740
    224061201 Flat Washer
    Flat Washer
  • 770
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 780
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 900
    518326559 Rear Member
    Rear Member
  • 910
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 1100
    518326848 Upper Column Support
    Upper Column Support
  • 1110
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 1120
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 1200
    518326355 Center Column Support
    Center Column Support
  • 1300a
    518325577 Clear Rear Bumper. Vehicles 137''
    Clear Rear Bumper. Vehicles 137''
  • 1300a
    518325579 Clear Rear Bumper. Vehicles 154''
    Clear Rear Bumper. Vehicles 154''
  • 1300b
    520000711 Full Moon RH Cap
    Full Moon RH Cap
  • 1300b
    520000712 Full Moon LH Cap
    Full Moon LH Cap
  • 1400
    293730041 Full Moon Dart 8 mm
    Full Moon Dart 8 mm
  • 1405
    293730059 Full Moon Dart 10 mm
    Full Moon Dart 10 mm
  • 1800
    518326472 Battery Support
    Battery Support
  • 2005
    514054755 Heat Shield
    Heat Shield
  • 2010
    210262040 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 2020
    250200039 Flat Washer
    Flat Washer
  • 2030
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 2050
    250000779 Torx Screw M6 X 18, Scotch Grip
    Torx Screw M6 X 18, Scotch Grip
