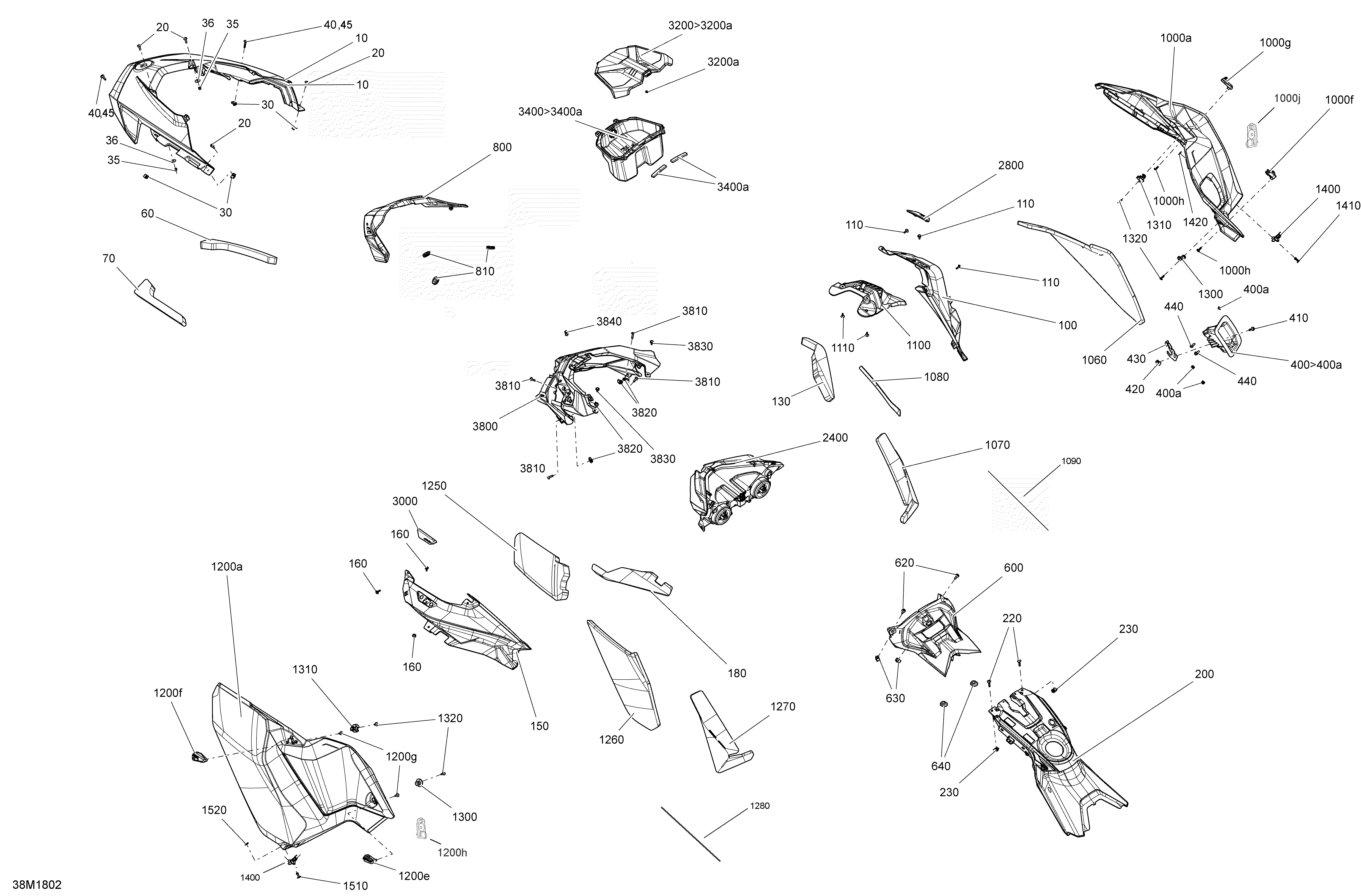

09- Hood Summit - 850 E-TEC для BRP Ski-Doo 3- SUMMIT 850 E-TEC - 2018
-
№АртикулНазвание
-
10517305744 Black - Front Hood. Black ModelBlack - Front Hood. Black Model
-
10517305983 Yellow - Front Hood. Yellow Model, Package SPYellow - Front Hood. Yellow Model, Package SP
-
10517306388 Front Hood. Blue Model, Package XFront Hood. Blue Model, Package X
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
35233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
36250200040 Flat WasherFlat Washer
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
45250200166 WasherWasher
-
60517305763 Front Hood Foam RHFront Hood Foam RH
-
70517305764 Front Hood Foam LHFront Hood Foam LH
-
100517306007 Black - Hood RH. Black ModelBlack - Hood RH. Black Model
-
100517306009 Yellow - Hood RH. Yellow Model, Package SPYellow - Hood RH. Yellow Model, Package SP
-
100517306391 Gulfstream Blue, RH Hood. Blue Model, Package XGulfstream Blue, RH Hood. Blue Model, Package X
-
110250000725 Screw M4 X 16Screw M4 X 16
-
130517306001 Hood Foam RHHood Foam RH
-
150517306008 Black - Hood LH. Black ModelBlack - Hood LH. Black Model
-
150517306010 Yellow - Hood LH. Yellow Model, Package SPYellow - Hood LH. Yellow Model, Package SP
-
150517306390 Gulfstream Blue, LH Hood. Blue Model, Package XGulfstream Blue, LH Hood. Blue Model, Package X
-
160250000725 Screw M4 X 16Screw M4 X 16
-
180517306002 Hood Foam LHHood Foam LH
-
190513033813 GasketGasket
-
200517305892 Rear ConsoleRear Console
-
220250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
230250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
240517304518 Console NutConsole Nut
-
400517305765 Console RH. Manual Start & DSHOT. Includes 400 to 400aConsole RH. Manual Start & DSHOT. Includes 400 to 400a
-
400a275500241 Black - Cap. Manual Start & DSHOTBlack - Cap. Manual Start & DSHOT
-
410250000586 Torx Truss M5 X 20. Manual Start & DSHOTTorx Truss M5 X 20. Manual Start & DSHOT
-
420250000079 Panel Nut M5 X 0.8. Manual Start & DSHOTPanel Nut M5 X 0.8. Manual Start & DSHOT
-
430517306315 Rope Guide. Manual Start & DSHOTRope Guide. Manual Start & DSHOT
-
440210261250 Hex. Flanged Screw M6 X 12. Manual Start & DSHOTHex. Flanged Screw M6 X 12. Manual Start & DSHOT
-
600517305782 Indicator SupportIndicator Support
-
620250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
630250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
800517305875 Wind DeflectorWind Deflector
-
810517303756 GrommetGrommet
-
1000a517305750 Black, RH Panel. Electrical StartBlack, RH Panel. Electrical Start
-
1000a517306004 Black - Panel RH. Manual Start & DSHOTBlack - Panel RH. Manual Start & DSHOT
-
1000a517306399 Gulfstream Blue, RH Panel. Electrical StartGulfstream Blue, RH Panel. Electrical Start
-
1000a517306393 Gulfstream Blue, RH Panel. Manual Start & DSHOTGulfstream Blue, RH Panel. Manual Start & DSHOT
-
1000f517305773 Rear Latch RHRear Latch RH
-
1000g517305979 Front Latch RHFront Latch RH
-
1000h250000725 Screw M4 X 16Screw M4 X 16
-
1000j517306311 Hook RHHook RH
-
1000k293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000m517124300 WasherWasher
-
1060517306188 Central Panel Foam RHCentral Panel Foam RH
-
1070517306586 RH Rear Panel FoamRH Rear Panel Foam
-
1080517306262 Rubber SheetRubber Sheet
-
1090517306480 RH Rear Panel FoamRH Rear Panel Foam
-
1100517305862 Grill RH, Deep BlackGrill RH, Deep Black
-
1110250000725 Screw M4 X 16Screw M4 X 16
-
1200a517305751 Black, LH PanelBlack, LH Panel
-
1200a517306395 Gulfstream Blue, LH PanelGulfstream Blue, LH Panel
-
1200c250000725 Screw M4 X 16. Not shownScrew M4 X 16. Not shown
-
1200d517124300 Washer. Not shownWasher. Not shown
-
1200e517305774 Rear Latch LHRear Latch LH
-
1200f517305980 Front Latch LHFront Latch LH
-
1200g293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200h517306312 Hook LHHook LH
-
1250517305769 Front Panel Foam LHFront Panel Foam LH
-
1260517306189 Central Panel Foam LHCentral Panel Foam LH
-
1270517305771 Rear Panel Foam LHRear Panel Foam LH
-
1280517306479 LH Rear Panel FoamLH Rear Panel Foam
-
1300517305985 Rear StudRear Stud
-
1310517305988 Front StudFront Stud
-
1320250000725 Screw M4 X 16Screw M4 X 16
-
1400517306309 RH Lower LatchRH Lower Latch
-
1400517306310 LH Lower LatchLH Lower Latch
-
1410293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
1420517124300 WasherWasher
-
1510293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
1520517124300 WasherWasher
-
2400517305752 Headlamp. Includes 2400 to 2400aHeadlamp. Includes 2400 to 2400a
-
2400a415130081 BulbBulb
-
2800517306049 Hood Plate RHHood Plate RH
-
3000517306050 Hood Plate LHHood Plate LH
-
3200517305871 Cover Ass'y, Deep Black. Includes 3200 to 3200aCover Ass'y, Deep Black. Includes 3200 to 3200a
-
3200a732610072 Push NutPush Nut
-
3400517306058 Trunk Ass'y. Includes 3400 to 3400aTrunk Ass'y. Includes 3400 to 3400a
-
3400a517305157 Seal JointSeal Joint
-
3800517305746 Headlamp Fairing, Deep BlackHeadlamp Fairing, Deep Black
-
3810250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3820250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3830250000725 Screw M4 X 16Screw M4 X 16
-
3840293150089 Tuflok Plastic RivetTuflok Plastic Rivet
