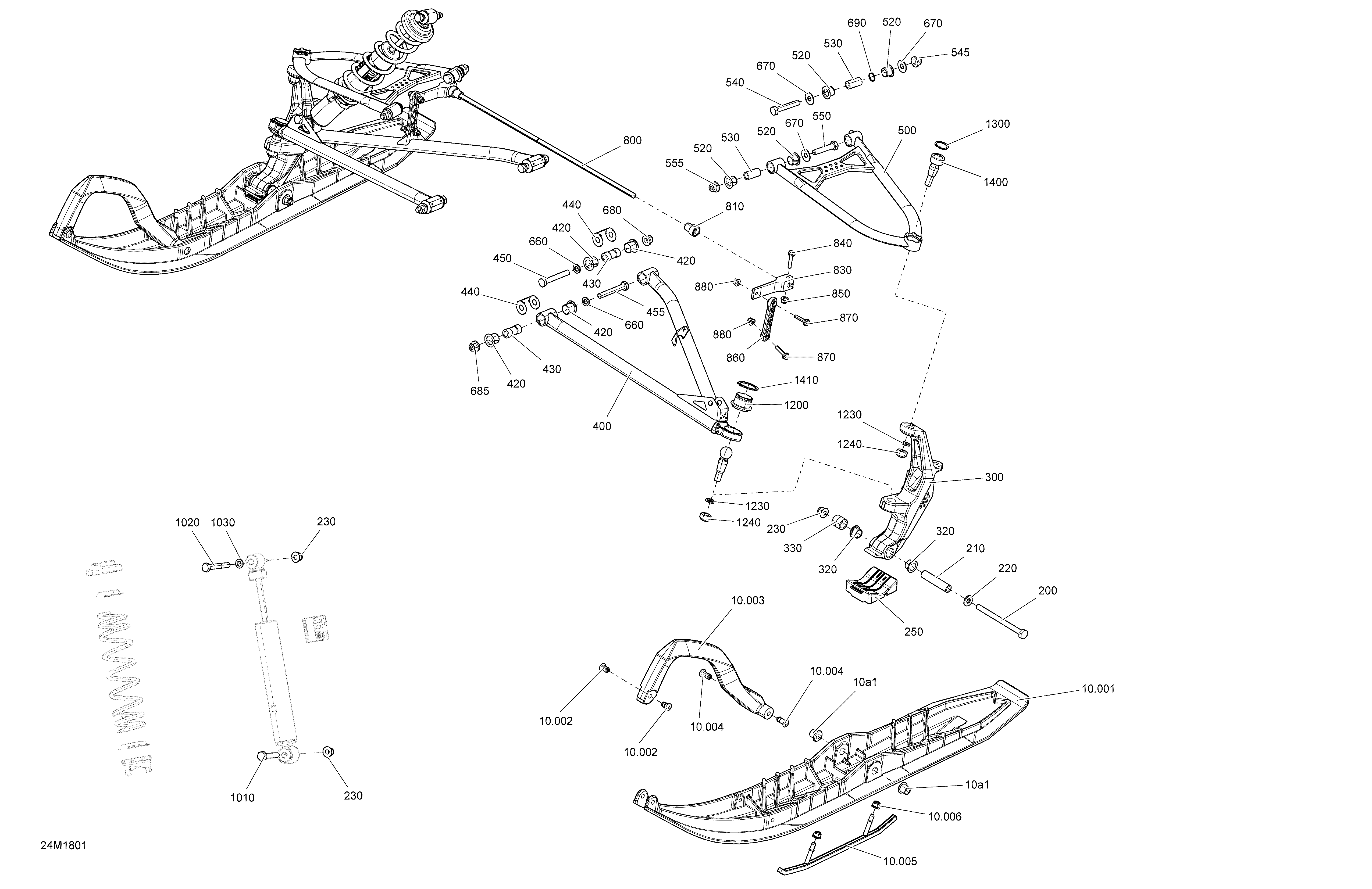

07- Front Suspension And Ski Summit - 600HO E-TEC - Package SP для BRP Ski-Doo 2- SUMMIT 600HO E-TEC - 2018

  • №
    Артикул
    Название
  • 10.001
    505073227 Black, DS 2 Ski
    Black, DS 2 Ski
  • 10.001
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 10.002
    505071812 Retainer 17mm long
    Retainer 17mm long
  • 10.003
    505072976 Black, Handle
    Black, Handle
  • 10.004
    505072133 Retainer 23mm Long
    Retainer 23mm Long
  • 10.005
    860201044 Carbide Runner Kit (Square Runner)
    Carbide Runner Kit (Square Runner)
  • 10.006
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 200
    250000703 Hex. Screw M10 X 130
    Hex. Screw M10 X 130
  • 210
    506133300 Spacer
    Spacer
  • 250
    505074138 Ski Stopper
    Ski Stopper
  • 300
    505073579 Black LH Ski Leg
    Black LH Ski Leg
  • 310
    505073580 Black RH Ski Leg
    Black RH Ski Leg
  • 320
    505072690 Leg Bushing
    Leg Bushing
  • 330
    503193651 Spacer
    Spacer
  • 400
    505073441 Black Lower Arm RH, 36''
    Black Lower Arm RH, 36''
  • 400
    505073438 Black Lower Arm LH, 36''
    Black Lower Arm LH, 36''
  • 420
    505072208 Bushing
    Bushing
  • 430
    505072209 Sleeve
    Sleeve
  • 440
    505072634 Wear Plate
    Wear Plate
  • 450
    250000291 Screw Hex. M10 X 1.25 X 70
    Screw Hex. M10 X 1.25 X 70
  • 455
    250000291 Screw Hex. M10 X 1.25 X 70
    Screw Hex. M10 X 1.25 X 70
  • 500
    505073432 Black Upper Arm LH
    Black Upper Arm LH
  • 500
    505073435 Black Upper Arm RH
    Black Upper Arm RH
  • 520
    505072250 Bushing
    Bushing
  • 530
    505072143 Sleeve
    Sleeve
  • 540
    250000290 Screw Hex. M10 X 1.25 X 60
    Screw Hex. M10 X 1.25 X 60
  • 545
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 550
    250000289 Screw Hex. M10 X 1.25 X 50
    Screw Hex. M10 X 1.25 X 50
  • 555
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 660
    503189564 Washer
    Washer
  • 670
    505072392 Washer
    Washer
  • 680
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 685
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 690
    505072448 O-Ring
    O-Ring
  • 800
    505073609 Stabilisator
    Stabilisator
  • 810
    505072786 Bushing
    Bushing
  • 830
    505073176 Stabilisator Lever
    Stabilisator Lever
  • 840
    207663056 Hex Flanged Screw M6 X 1.0 X 30
    Hex Flanged Screw M6 X 1.0 X 30
  • 850
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 860
    505072204 Sway Bar Double Joint Link
    Sway Bar Double Joint Link
  • 860
    505073172 Double Ball Joint Link
    Double Ball Joint Link
  • 870
    207663056 Hex Flanged Screw M6 X 1.0 X 30
    Hex Flanged Screw M6 X 1.0 X 30
  • 880
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 1010
    207005554 Hex Screw M10 X 1.5 X 55
    Hex Screw M10 X 1.5 X 55
  • 1020
    207006544 Hex. Screw M10 X 1.5 X 65
    Hex. Screw M10 X 1.5 X 65
  • 1030
    503189564 Washer
    Washer
  • 1200
    505073636 Ball Joint
    Ball Joint
  • 1230
    503192491 Washer
    Washer
  • 1240
    232521464 Hex Elastic Nut M12 X 1.25
    Hex Elastic Nut M12 X 1.25
  • 1300
    293370070 Circlip
    Circlip
  • 1400
    505072913 Upper Ball Joint
    Upper Ball Joint
  • 1410
    293370035 Circlip
    Circlip
