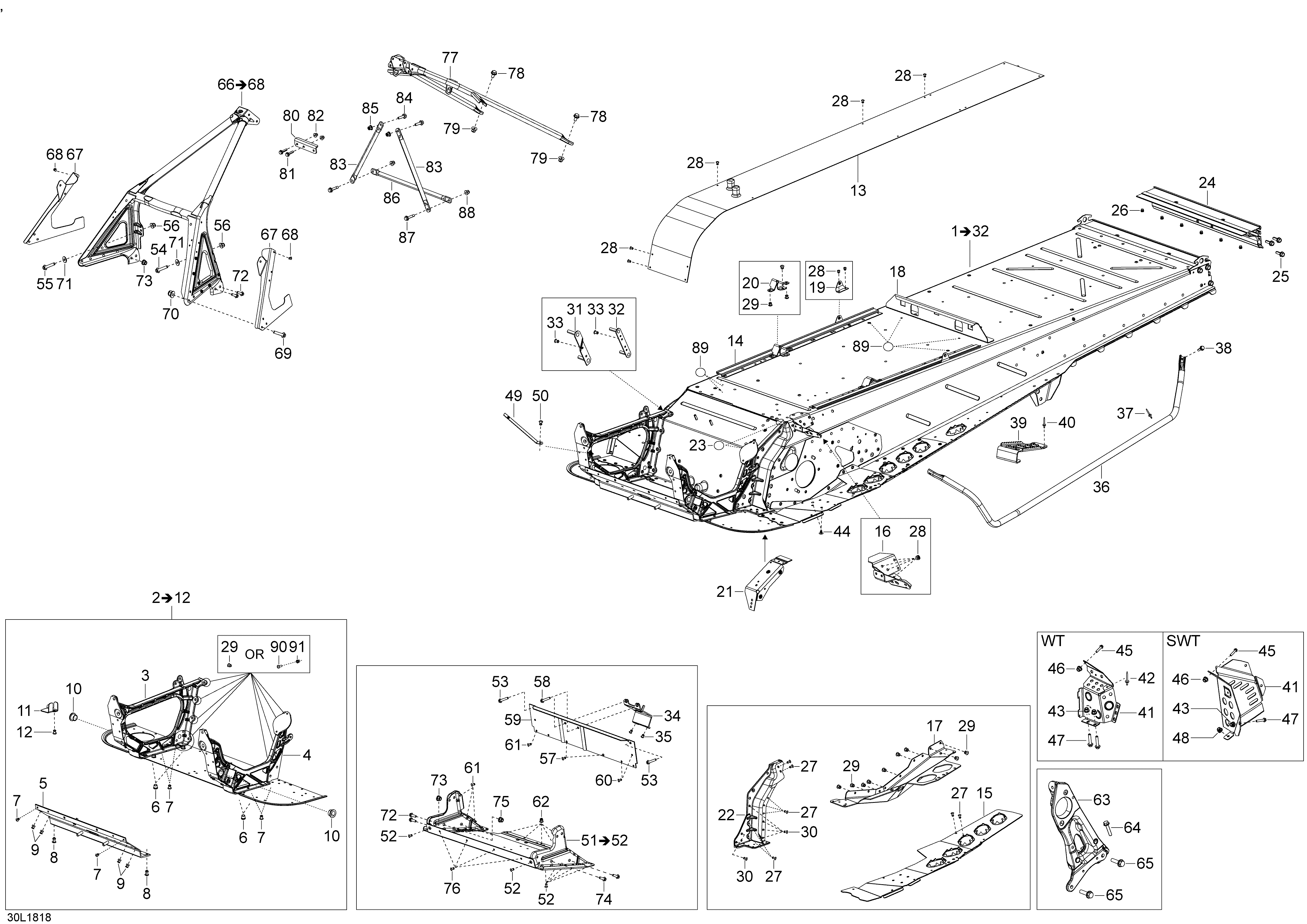

09- Frame Skandic - 600HO E-TEC для BRP Ski-Doo 2- SKANDIC 600HO E-TEC - 2018

  • №
    Артикул
    Название
  • 1
    518329694 Black, Frame. Model WT. Includes 1 To 30
    Black, Frame. Model WT. Includes 1 To 30
  • 1
    518329719 Black, Frame. Model SWT. Includes 1 To 30
    Black, Frame. Model SWT. Includes 1 To 30
  • 2
    518329691 Module E. Includes 2 To 12
    Module E. Includes 2 To 12
  • 3
    518326795 RH Member
    RH Member
  • 4
    518326796 LH Member
    LH Member
  • 5
    518326198 Front Member
    Front Member
  • 6
    605636002 Clinch Nut Hexsert M8
    Clinch Nut Hexsert M8
  • 7
    390909100 Avex Rivet
    Avex Rivet
  • 8
    293150120 Hemlock Rivet 6.5 mm
    Hemlock Rivet 6.5 mm
  • 9
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 10
    505072690 Leg Bushing
    Leg Bushing
  • 11
    518328194 Muffler Support
    Muffler Support
  • 12
    293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GAT
    Rivet Hucklok 4,8 mm HKLP-R6-5GAT
  • 13
    509000976 Tunnel Radiator
    Tunnel Radiator
  • 14
    518326107 Fastening rail
    Fastening rail
  • 15
    518328821 Footrest LH. Model WT
    Footrest LH. Model WT
  • 15
    518328852 Footrest LH. Model SWT
    Footrest LH. Model SWT
  • 15
    518328822 Footrest RH. Model WT
    Footrest RH. Model WT
  • 15
    518328853 Footrest RH. Model SWT
    Footrest RH. Model SWT
  • 16
    605355235 Fastening Bracket. Model WT
    Fastening Bracket. Model WT
  • 16
    518327884 Fastening Bracket. Model SWT
    Fastening Bracket. Model SWT
  • 17
    518328016 LH Drive Axle Cover. Model WT
    LH Drive Axle Cover. Model WT
  • 17
    518328014 LH Drive Axle Cover. Model SWT
    LH Drive Axle Cover. Model SWT
  • 17
    518328017 RH Drive Axle Cover. Model WT
    RH Drive Axle Cover. Model WT
  • 17
    518328015 RH Drive Axle Cover. Model SWT
    RH Drive Axle Cover. Model SWT
  • 18
    518325986 Battery support plate. Model WT
    Battery support plate. Model WT
  • 18
    518327003 Battery Support. Model SWT
    Battery Support. Model SWT
  • 19
    518329164 Seat Box Bracket
    Seat Box Bracket
  • 20
    518329109 LH Support Tube Bracket
    LH Support Tube Bracket
  • 20
    518329110 RH Support Tube Bracket
    RH Support Tube Bracket
  • 21
    518326430 Clinch nut plate. Model WT
    Clinch nut plate. Model WT
  • 21
    518328096 Clinch Nut Plate. Model SWT
    Clinch Nut Plate. Model SWT
  • 22
    518325524 Frame Corner LH. Model WT
    Frame Corner LH. Model WT
  • 22
    518325643 Frame Corner LH. Model SWT
    Frame Corner LH. Model SWT
  • 22
    518328024 Frame Corner RH. Model WT
    Frame Corner RH. Model WT
  • 22
    518325644 Frame Corner RH. Model SWT
    Frame Corner RH. Model SWT
  • 23
    518325560 Adhesive Patch
    Adhesive Patch
  • 24
    518328748 Rear Profile. Model WT
    Rear Profile. Model WT
  • 24
    518328749 Rear Profile. Model SWT
    Rear Profile. Model SWT
  • 25
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 26
    293150174 Hemlock Rivet, 6.4 mm
    Hemlock Rivet, 6.4 mm
  • 27
    390909100 Avex Rivet
    Avex Rivet
  • 28
    390909200 Avex Rivet
    Avex Rivet
  • 29
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 30
    293150183 Rivet
    Rivet
  • 31
    518326123 Gearbox Front Plate
    Gearbox Front Plate
  • 32
    518326124 Gearbox Rear Plate
    Gearbox Rear Plate
  • 33
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 34
    518325943 MAG Engine Support
    MAG Engine Support
  • 35
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 36
    518326963 Footboard Support Tube, LH. Model WT
    Footboard Support Tube, LH. Model WT
  • 36
    518327595 Footboard Support Tube LH. Model SWT
    Footboard Support Tube LH. Model SWT
  • 36
    518326964 Footboard Support Tube, RH. Model WT
    Footboard Support Tube, RH. Model WT
  • 36
    518327596 Footboard Support Tube RH. Model SWT
    Footboard Support Tube RH. Model SWT
  • 37
    390909100 Avex Rivet. Model WT
    Avex Rivet. Model WT
  • 37
    390909100 Avex Rivet. Model SWT
    Avex Rivet. Model SWT
  • 38
    207662056 Screw Hex. Flange M6 x 20
    Screw Hex. Flange M6 x 20
  • 39
    520001208 Black Rear Footrest
    Black Rear Footrest
  • 40
    293150102 Rivet 3/16''
    Rivet 3/16''
  • 41
    518328819 Black LH Toe Hook. Model WT
    Black LH Toe Hook. Model WT
  • 41
    518328921 Black LH Toe Hook. Model SWT
    Black LH Toe Hook. Model SWT
  • 41
    518328820 Black RH Toe Hook. Model WT
    Black RH Toe Hook. Model WT
  • 41
    518328922 Black RH Toe Hook. Model SWT
    Black RH Toe Hook. Model SWT
  • 42
    390909200 Avex Rivet. Model WT
    Avex Rivet. Model WT
  • 43
    605636003 Clinch Nut M6 Hexsert. Model WT
    Clinch Nut M6 Hexsert. Model WT
  • 43
    605636003 Clinch Nut M6 Hexsert. Model SWT
    Clinch Nut M6 Hexsert. Model SWT
  • 44
    414644300 Dart. Model WT
    Dart. Model WT
  • 45
    207662056 Screw Hex. Flange M6 x 20
    Screw Hex. Flange M6 x 20
  • 46
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 47
    250000717 Torx Head Screw M6 X 16
    Torx Head Screw M6 X 16
  • 48
    233261414 Hex. Flanged Elastic Nut M6. Model SWT
    Hex. Flanged Elastic Nut M6. Model SWT
  • 49
    514054846 Spring Bracket
    Spring Bracket
  • 50
    390909200 Avex Rivet
    Avex Rivet
  • 51
    518326213 S Module. Includes 51 To 52
    S Module. Includes 51 To 52
  • 52
    390909200 Avex Rivet
    Avex Rivet
  • 53
    210262050 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 54
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 55
    207563034 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 56
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 57
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 58
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 59
    518325620 Support Plate
    Support Plate
  • 60
    390909100 Avex Rivet
    Avex Rivet
  • 61
    293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GAT
    Rivet Hucklok 4,8 mm HKLP-R6-5GAT
  • 62
    390909200 Avex Rivet
    Avex Rivet
  • 63
    518328434 Pulley Support
    Pulley Support
  • 64
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 65
    207583086 Flanged Hex. Screw M8 X 30, Scotch Grip
    Flanged Hex. Screw M8 X 30, Scotch Grip
  • 66
    518326754 Front Member Ass'y. Includes 66 To 68
    Front Member Ass'y. Includes 66 To 68
  • 67
    502007077 Bumper Fastener LH
    Bumper Fastener LH
  • 67
    502007078 Bumper Fastener RH
    Bumper Fastener RH
  • 68
    390909200 Avex Rivet
    Avex Rivet
  • 69
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 70
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 71
    224061201 Flat Washer
    Flat Washer
  • 72
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 73
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 74
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 75
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 76
    390909200 Avex Rivet
    Avex Rivet
  • 77
    518329105 Upper Support Tube
    Upper Support Tube
  • 78
    207182044 Hex. Screw M8 X 20
    Hex. Screw M8 X 20
  • 79
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 80
    518327029 Extention Plate. Model SWT
    Extention Plate. Model SWT
  • 81
    207662544 Hex. Flanged Screw M6 X 25. Model SWT
    Hex. Flanged Screw M6 X 25. Model SWT
  • 82
    233261414 Hex. Flanged Elastic Nut M6. Model SWT
    Hex. Flanged Elastic Nut M6. Model SWT
  • 83
    518325114 Upper Column Support
    Upper Column Support
  • 84
    207662056 Screw Hex. Flange M6 x 20
    Screw Hex. Flange M6 x 20
  • 85
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 86
    518325115 Center Column Support
    Center Column Support
  • 87
    207662556 Hex. Flange Screw M6 X 25
    Hex. Flange Screw M6 X 25
  • 88
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 89
    518325560 Adhesive Patch
    Adhesive Patch
  • 90
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 91
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
