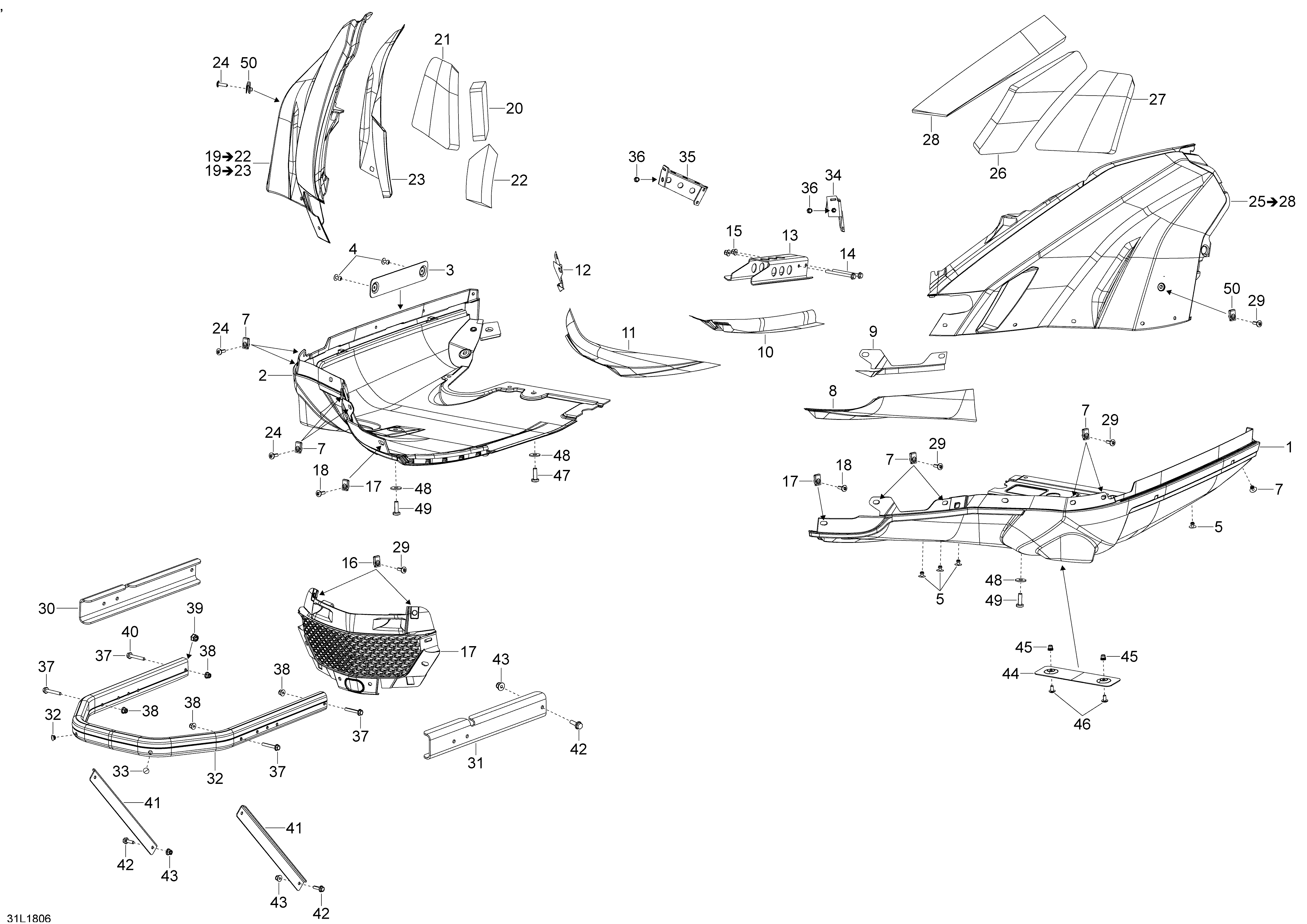

09- Bottom Pan Skandic - WT - 550F для BRP Ski-Doo 1- SKANDIC 550F - 2018

  • №
    Артикул
    Название
  • 1
    502007836 Bottom-pan Lower Lh.
    Bottom-pan Lower Lh.
  • 2
    502007837 Bottom-pan Lower Rh.
    Bottom-pan Lower Rh.
  • 3
    502007255 Heat Isolation Plate
    Heat Isolation Plate
  • 4
    293150211 Rivet
    Rivet
  • 5
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 6
    293150108 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 7
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 13
    502007688 Support
    Support
  • 14
    207667056 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 15
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 16
    502007140 Front Grill
    Front Grill
  • 17
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 18
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 19
    502007292 Black Bottom Pan Ass'y RH. Includes 19 to 23
    Black Bottom Pan Ass'y RH. Includes 19 to 23
  • 20
    502007133 Insulator
    Insulator
  • 21
    502007132 Insulator
    Insulator
  • 23
    502007009 Insulator
    Insulator
  • 21
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 25
    502007294 Black Bottom Pan Ass'y LH. Includes 25 to 28
    Black Bottom Pan Ass'y LH. Includes 25 to 28
  • 26
    502007088 Insulator
    Insulator
  • 27
    502007131 Insulator
    Insulator
  • 28
    502007185 Insulator
    Insulator
  • 29
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 32
    502007115 Bumper
    Bumper
  • 33
    293730041 Full Moon Dart 8 mm
    Full Moon Dart 8 mm
  • 34
    502007535 LH Bottom Pan Fastener
    LH Bottom Pan Fastener
  • 35
    502007536 RH Bottom Pan Fastener
    RH Bottom Pan Fastener
  • 36
    605636003 Clinch Nut M6 Hexsert
    Clinch Nut M6 Hexsert
  • 37
    207664044 Hex. Flanged Screw M6 X 40
    Hex. Flanged Screw M6 X 40
  • 38
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 39
    518328217 Sleeve
    Sleeve
  • 40
    207665044 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 41
    502006927 Bumper Support
    Bumper Support
  • 42
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 43
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 44
    518328879 Oil Plate
    Oil Plate
  • 45
    605636003 Clinch Nut M6 Hexsert
    Clinch Nut M6 Hexsert
  • 46
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 47
    250000752 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 48
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 49
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 50
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
