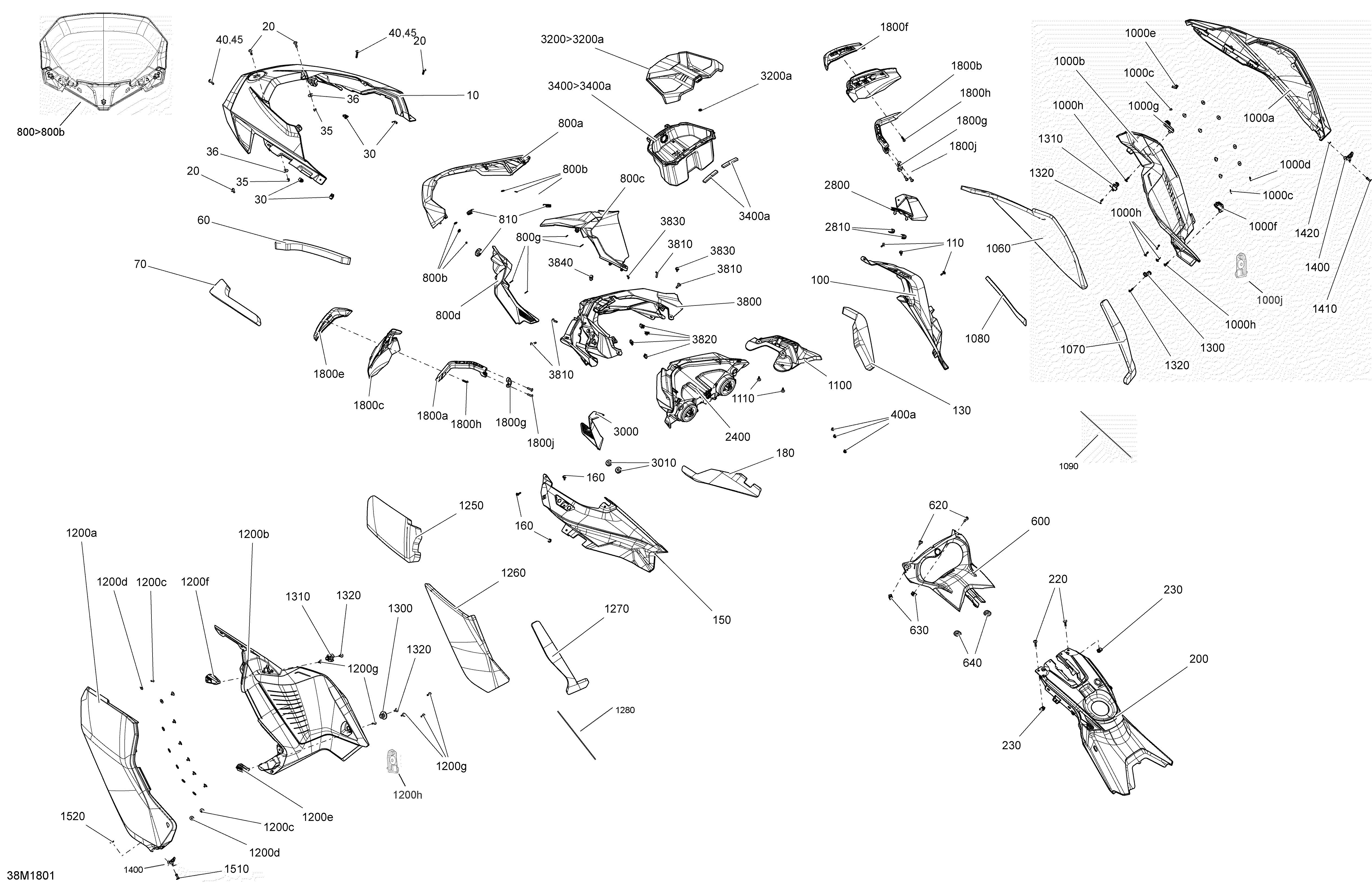

09- Hood Renegade - 850 E-TEC для BRP Ski-Doo 5- RENEGADE 850 E-TEC - 2018

  • №
    Артикул
    Название
  • 10
    517305744 Black - Front Hood. Black Model All package
    Black - Front Hood. Black Model All package
  • 10
    517306237 White, Front Hood. White Model
    White, Front Hood. White Model
  • 10
    517306362 Front Hood. Silver Model, Package XRS only
    Front Hood. Silver Model, Package XRS only
  • 10
    517306381 Front Hood. Manta Green Model, Package X only
    Front Hood. Manta Green Model, Package X only
  • 10
    517306388 Front Hood. Package BackCountry X only
    Front Hood. Package BackCountry X only
  • 20
    250000528 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 30
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 35
    233251494 Elastic Flanged Nut M5
    Elastic Flanged Nut M5
  • 36
    250200040 Flat Washer
    Flat Washer
  • 40
    250000587 Torx Screw M5 X 26
    Torx Screw M5 X 26
  • 45
    250200166 Washer
    Washer
  • 60
    517305763 Front Hood Foam RH
    Front Hood Foam RH
  • 70
    517305764 Front Hood Foam LH
    Front Hood Foam LH
  • 100
    517306007 Black - Hood RH. All package
    Black - Hood RH. All package
  • 100
    517306238 White, RH Hood. Package Adrenaline & BackCountry
    White, RH Hood. Package Adrenaline & BackCountry
  • 100
    517306363 Hyper Silver, RH Hood. Package XRS only
    Hyper Silver, RH Hood. Package XRS only
  • 100
    517306383 Manta Green, RH Hood. Package X only
    Manta Green, RH Hood. Package X only
  • 100
    517306391 Gulfstream Blue, RH Hood. Package BackCountry X only
    Gulfstream Blue, RH Hood. Package BackCountry X only
  • 110
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 130
    517306001 Hood Foam RH
    Hood Foam RH
  • 150
    517306008 Black - Hood LH. All package
    Black - Hood LH. All package
  • 150
    517306239 White, LH Hood. Package Adrenaline & BackCountry
    White, LH Hood. Package Adrenaline & BackCountry
  • 150
    517306364 Hyper Silver, LH Hood. Package X only
    Hyper Silver, LH Hood. Package X only
  • 150
    517306382 Manta Green, LH Hood. Package XRS only
    Manta Green, LH Hood. Package XRS only
  • 150
    517306390 Gulfstream Blue, LH Hood. Package BackCountry X only
    Gulfstream Blue, LH Hood. Package BackCountry X only
  • 160
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 180
    517306002 Hood Foam LH
    Hood Foam LH
  • 190
    513033813 Gasket
    Gasket
  • 200
    517305745 Rear Console, Deep Black. Package Adrenaline
    Rear Console, Deep Black. Package Adrenaline
  • 200
    517305745 Rear Console, Deep Black. Package X
    Rear Console, Deep Black. Package X
  • 200
    517306318 Rear Console. Package XRS
    Rear Console. Package XRS
  • 200
    517306539 Console-Rear. Package BackCountry & BackCountry X
    Console-Rear. Package BackCountry & BackCountry X
  • 220
    250000587 Torx Screw M5 X 26
    Torx Screw M5 X 26
  • 230
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 240
    517304518 Console Nut
    Console Nut
  • 600
    517305781 Indicator Support, Deep Black. Package X
    Indicator Support, Deep Black. Package X
  • 600
    517306117 Indicator Support. Package XRS Europe
    Indicator Support. Package XRS Europe
  • 600
    517306319 Indicator Support. Package Adr, BC & BCX
    Indicator Support. Package Adr, BC & BCX
  • 620
    250000587 Torx Screw M5 X 26
    Torx Screw M5 X 26
  • 630
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 800
    517306379 Low Windshield Kit. Package XRS Europe Only. Includes 800 to 800g
    Low Windshield Kit. Package XRS Europe Only. Includes 800 to 800g
  • 800
    860201448 Low Windshield Kit, , Black 63% Light. Package X, BCX & XRS Europe. Includes 800 to 800g
    Low Windshield Kit, , Black 63% Light. Package X, BCX & XRS Europe. Includes 800 to 800g
  • 800
    860201258 Medium Windshield Kit. Package Adrenaline & BackCountry. Includes 800 to 800g
    Medium Windshield Kit. Package Adrenaline & BackCountry. Includes 800 to 800g
  • 800a
    517305749 Windshield Support, Deep Black
    Windshield Support, Deep Black
  • 800a
    517306183 Windshield Support, Deep Black
    Windshield Support, Deep Black
  • 800a
    517306380 Support. Package XRS Europe Only
    Support. Package XRS Europe Only
  • 800b
    732610072 Push Nut. Package X, BCX & XRS Europe
    Push Nut. Package X, BCX & XRS Europe
  • 800e
    250000889 Screw M4 X 16. Package Adrenaline & BackCountry
    Screw M4 X 16. Package Adrenaline & BackCountry
  • 800g
    250200024 Rubber Washer 5 mm. Package X, BCX & XRS Europe
    Rubber Washer 5 mm. Package X, BCX & XRS Europe
  • 800g
    250200024 Rubber Washer 5 mm. Package XRS Europe Only
    Rubber Washer 5 mm. Package XRS Europe Only
  • 810
    517303756 Grommet
    Grommet
  • 1000a
    517305750 Black, RH Panel. Package BackCountry & BackCountry X
    Black, RH Panel. Package BackCountry & BackCountry X
  • 1000a
    517305860 Black, RH Panel. Package Adrenaline, X & XRS
    Black, RH Panel. Package Adrenaline, X & XRS
  • 1000a
    517306220 White, RH Panel. Package BackCountry
    White, RH Panel. Package BackCountry
  • 1000a
    517306367 Silver, RH Panel. Package XRS Europe Only
    Silver, RH Panel. Package XRS Europe Only
  • 1000a
    517306399 Gulfstream Blue, RH Panel. Package BackCountry X only
    Gulfstream Blue, RH Panel. Package BackCountry X only
  • 1000a
    517306475 White, RH Panel. Package Adrenaline
    White, RH Panel. Package Adrenaline
  • 1000b
    517305861 Panel Trim RH, Deep Black
    Panel Trim RH, Deep Black
  • 1000c
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 1000d
    517124300 Washer
    Washer
  • 1000e
    517305109 Rivet Plate
    Rivet Plate
  • 1000f
    517305773 Rear Latch RH
    Rear Latch RH
  • 1000g
    517305979 Front Latch RH
    Front Latch RH
  • 1000h
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 1000j
    517306311 Hook RH
    Hook RH
  • 1060
    517306188 Central Panel Foam RH. Package BackCountry & BackCountry X
    Central Panel Foam RH. Package BackCountry & BackCountry X
  • 1060
    517305767 Central Panel Foam RH. Package Adrenaline, X & XRS
    Central Panel Foam RH. Package Adrenaline, X & XRS
  • 1070
    517306586 RH Rear Panel Foam. Package BackCountry & BackCountry X
    RH Rear Panel Foam. Package BackCountry & BackCountry X
  • 1070
    517306116 RH Rear Panel Foam. Package Adrenaline, X & XRS
    RH Rear Panel Foam. Package Adrenaline, X & XRS
  • 1200a
    517305751 Black, LH Panel. Package BackCountry & BackCountry X
    Black, LH Panel. Package BackCountry & BackCountry X
  • 1200a
    517305864 Black, LH Panel. Package Adrenaline, X & XRS
    Black, LH Panel. Package Adrenaline, X & XRS
  • 1200a
    517306091 White, LH Panel. Package BackCountry
    White, LH Panel. Package BackCountry
  • 1200a
    517306369 Silver, LH Panel. Package XRS Europe Only
    Silver, LH Panel. Package XRS Europe Only
  • 1200a
    517306395 Gulfstream Blue, LH Panel. Package BackCountry X only
    Gulfstream Blue, LH Panel. Package BackCountry X only
  • 1200a
    517306477 White, LH Panel. Package Adrenaline
    White, LH Panel. Package Adrenaline
  • 1200b
    517305865 Black - Panel Trim LH
    Black - Panel Trim LH
  • 1200c
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 1200d
    517124300 Washer
    Washer
  • 1200e
    517305774 Rear Latch LH
    Rear Latch LH
  • 1200f
    517305980 Front Latch LH
    Front Latch LH
  • 1200g
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 1200h
    517306312 Hook LH
    Hook LH
  • 1260
    517306189 Central Panel Foam LH. Package BackCountry & BackCountry X
    Central Panel Foam LH. Package BackCountry & BackCountry X
  • 1260
    517305770 Central Panel Foam LH. Package Adrenaline, X & XRS
    Central Panel Foam LH. Package Adrenaline, X & XRS
  • 1270
    517305771 Rear Panel Foam LH. Package BackCountry & BackCountry X
    Rear Panel Foam LH. Package BackCountry & BackCountry X
  • 1270
    517305766 Rear Panel Foam LH. Package Adrenaline, X & XRS
    Rear Panel Foam LH. Package Adrenaline, X & XRS
  • 1080
    517306262 Rubber Sheet
    Rubber Sheet
  • 1090
    517306480 RH Rear Panel Foam
    RH Rear Panel Foam
  • 1100
    517305862 Grill RH, Deep Black
    Grill RH, Deep Black
  • 1110
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 1250
    517305769 Front Panel Foam LH
    Front Panel Foam LH
  • 1280
    517306479 LH Rear Panel Foam
    LH Rear Panel Foam
  • 1300
    517305985 Rear Stud
    Rear Stud
  • 1310
    517305988 Front Stud
    Front Stud
  • 1320
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 1400
    517306309 RH Lower Latch
    RH Lower Latch
  • 1400
    517306310 LH Lower Latch
    LH Lower Latch
  • 1410
    293150100 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 1420
    517124300 Washer
    Washer
  • 1510
    293150100 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 1520
    517124300 Washer
    Washer
  • 1800a
    517305290 Deep Black LH Arm. Package X, BCX & XRS Europe
    Deep Black LH Arm. Package X, BCX & XRS Europe
  • 1800b
    517305293 Deep Black RH Arm. Package X, BCX & XRS Europe
    Deep Black RH Arm. Package X, BCX & XRS Europe
  • 1800c
    517305291 LH Deflector, Smoke 60% Transm.. Package X, BCX & XRS Europe
    LH Deflector, Smoke 60% Transm.. Package X, BCX & XRS Europe
  • 1800d
    517305294 RH Deflector, Smoke 60% Transm.. Package X, BCX & XRS Europe
    RH Deflector, Smoke 60% Transm.. Package X, BCX & XRS Europe
  • 1800e
    517305601 Deep Black - LH Cap, SKI-DOO. Package X, BCX & XRS Europe
    Deep Black - LH Cap, SKI-DOO. Package X, BCX & XRS Europe
  • 1800e
    517306405 Manta Green, LH Cap. Package X, BCX & XRS Europe
    Manta Green, LH Cap. Package X, BCX & XRS Europe
  • 1800f
    517305602 Deep Black - RH Cap, SKI-DOO. Package X, BCX & XRS Europe
    Deep Black - RH Cap, SKI-DOO. Package X, BCX & XRS Europe
  • 1800f
    517306406 Manta Green, RH Cap. Package X, BCX & XRS Europe
    Manta Green, RH Cap. Package X, BCX & XRS Europe
  • 1800g
    517305296 Bride. Package X, BCX & XRS Europe
    Bride. Package X, BCX & XRS Europe
  • 1800h
    250000760 Torx Screw Truss Head K50X20 T20. Package X, BCX & XRS Europe
    Torx Screw Truss Head K50X20 T20. Package X, BCX & XRS Europe
  • 1800j
    250000724 Torx Screw M5 X 20. Package X, BCX & XRS Europe
    Torx Screw M5 X 20. Package X, BCX & XRS Europe
  • 2400
    517305752 Headlamp. Includes 2400 to 2400a
    Headlamp. Includes 2400 to 2400a
  • 2400a
    415130081 Bulb
    Bulb
  • 2800
    517305776 Deflector RH, Black 63% Light Transm.. Package X, BCX & XRS Europe
    Deflector RH, Black 63% Light Transm.. Package X, BCX & XRS Europe
  • 2810
    517302841 Grommet
    Grommet
  • 3000
    517305777 Deflector LH, Black 63% Light Transm.. Package X, BCX & XRS Europe
    Deflector LH, Black 63% Light Transm.. Package X, BCX & XRS Europe
  • 3010
    517302841 Grommet
    Grommet
  • 3200
    517305871 Cover Ass'y, Deep Black. Includes 3200 to 3200a
    Cover Ass'y, Deep Black. Includes 3200 to 3200a
  • 3200a
    732610072 Push Nut
    Push Nut
  • 3400
    517306058 Trunk Ass'y. Includes 3400 to 3400a
    Trunk Ass'y. Includes 3400 to 3400a
  • 3400a
    517305157 Seal Joint
    Seal Joint
  • 3800
    517305746 Headlamp Fairing, Deep Black. All package
    Headlamp Fairing, Deep Black. All package
  • 3800
    517306376 Fairing - Head-Lamp. Package XRS Europe Only
    Fairing - Head-Lamp. Package XRS Europe Only
  • 3810
    250000528 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 3820
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 3830
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 3840
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
