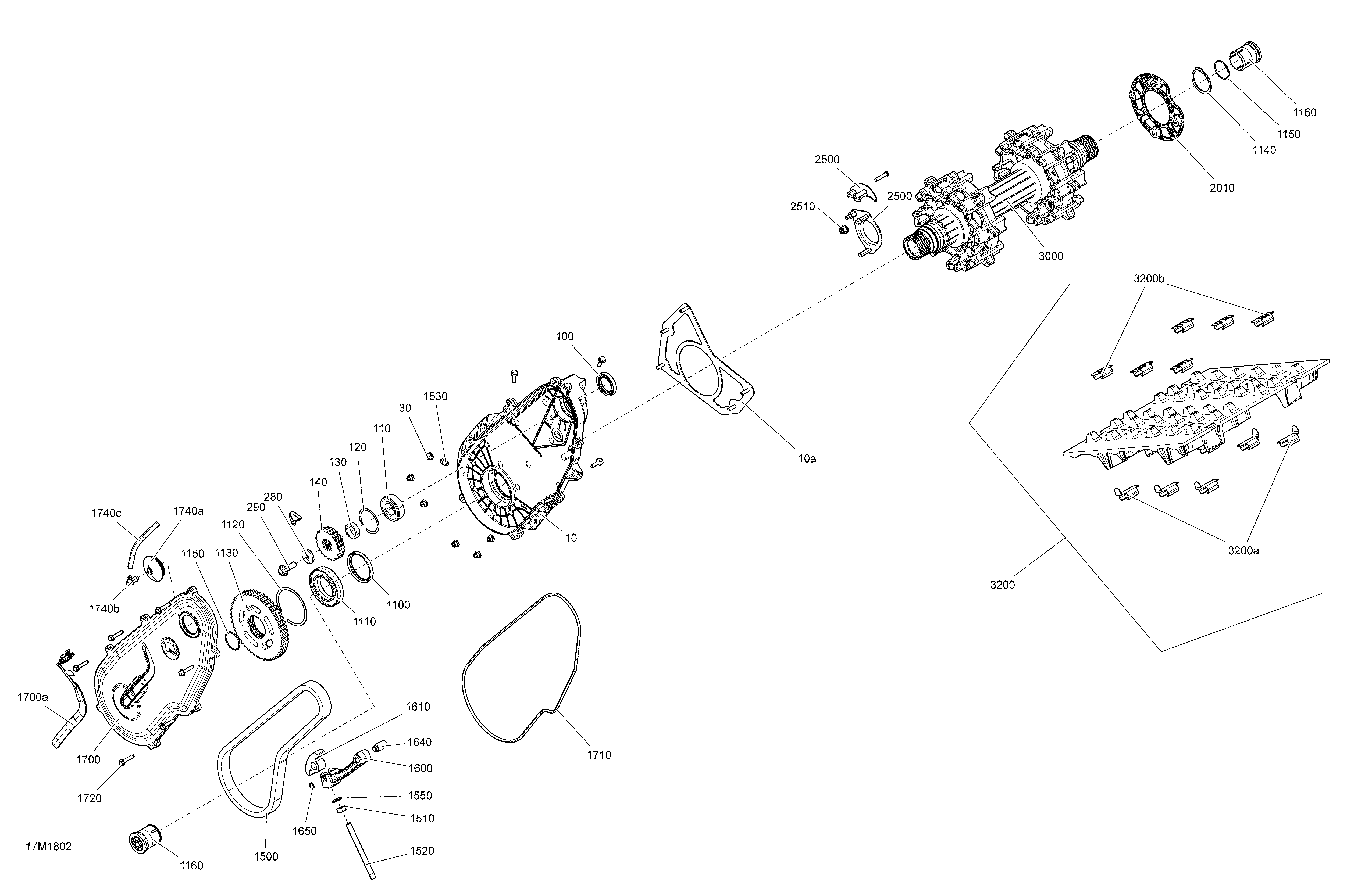

05- Drive Renegade - 600 HO E-TEC - Except Back Country для BRP Ski-Doo 2- RENEGADE 600HO E-TEC - 2018

  • №
    Артикул
    Название
  • 10
    504153405 Chaincase. Includes 10 to 10a
    Chaincase. Includes 10 to 10a
  • 10a
    518325816 Plate
    Plate
  • 100
    415049300 Oil Seal
    Oil Seal
  • 110
    293350115 Ball Bearing
    Ball Bearing
  • 120
    504152576 Circlip
    Circlip
  • 130
    504152628 Shim
    Shim
  • 140
    504091000 Sprocket, 23 Teeth. All other Track
    Sprocket, 23 Teeth. All other Track
  • 140
    504096200 Sprocket, 21 Teeth. ICE COBRA Track
    Sprocket, 21 Teeth. ICE COBRA Track
  • 280
    504152784 Spring Washer M10
    Spring Washer M10
  • 290
    207503046 Hex. Flanged Screw M10 X 30, Scotch Grip
    Hex. Flanged Screw M10 X 30, Scotch Grip
  • 1100
    293200159 Oil Seal
    Oil Seal
  • 1110
    293350059 Ball Bearing
    Ball Bearing
  • 1120
    504152582 Circlip
    Circlip
  • 1130
    504152593 Sprocket, 45 Teeth
    Sprocket, 45 Teeth
  • 1140
    504152572 Circlip
    Circlip
  • 1150
    293300122 O-Ring
    O-Ring
  • 1160
    504152619 Magnetic Cap
    Magnetic Cap
  • 1500
    504152579 Drive Chain, 102 Links. ICE COBRA Track
    Drive Chain, 102 Links. ICE COBRA Track
  • 1500
    504152629 Drive Chain, 104 Links. All other Track
    Drive Chain, 104 Links. All other Track
  • 1510
    232006414 Hex. Nut M10
    Hex. Nut M10
  • 1520
    504152602 Adjustment Screw
    Adjustment Screw
  • 1530
    504152854 Magnetic Plug
    Magnetic Plug
  • 1550
    250200100 Bonded Washer
    Bonded Washer
  • 1600
    504153429 Tensioner chain
    Tensioner chain
  • 1610
    504152739 Slider Chain
    Slider Chain
  • 1640
    504152841 Tensioner Axle
    Tensioner Axle
  • 1650
    504152282 Circlip
    Circlip
  • 1700
    504153410 Chaincase Cover Ass'y. Includes 1700 to 1700a
    Chaincase Cover Ass'y. Includes 1700 to 1700a
  • 1700a
    504152896 Sensor
    Sensor
  • 1710
    293300130 O-Ring
    O-Ring
  • 1720
    250000935 Screw-Forming Hex.HD.FL.BZN
    Screw-Forming Hex.HD.FL.BZN
  • 1740a
    504152860 Cap
    Cap
  • 1740b
    414580700 Male Connector
    Male Connector
  • 1740c
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 2010
    504153426 Retaining Ring
    Retaining Ring
  • 2020
    293350059 Ball Bearing
    Ball Bearing
  • 2030
    293300122 O-Ring
    O-Ring
  • 2040
    504152619 Magnetic Cap
    Magnetic Cap
  • 2050
    504152572 Circlip
    Circlip
  • 2500
    504153418 Bearing Housing
    Bearing Housing
  • 2510
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 3000
    504153083 Drive Axle Ass'y
    Drive Axle Ass'y
  • 3200
    504152905 Track Ass'y 15'' X 137'' X 1.2''. RIP SAW Track. Includes 3200 to 3200b
    Track Ass'y 15'' X 137'' X 1.2''. RIP SAW Track. Includes 3200 to 3200b
  • 3200
    504153101 Track Ass'y 15'' X 137'' X 1.25''. ICE RIPPER Track. Includes 3200 to 3200b
    Track Ass'y 15'' X 137'' X 1.25''. ICE RIPPER Track. Includes 3200 to 3200b
  • 3200
    504153706 Track Ass'y 15'' X 137'' X 1.6''. ICE COBRA Track. Includes 3200 to 3200b
    Track Ass'y 15'' X 137'' X 1.6''. ICE COBRA Track. Includes 3200 to 3200b
  • 3200a
    415129528 Track Guide
    Track Guide
  • 3200b
    504152651 Cleat. RIP SAW Track
    Cleat. RIP SAW Track
  • 3200b
    415129529 Cleat. ICE RIPPER Track
    Cleat. ICE RIPPER Track
  • 3200b
    415129529 Cleat. ICE COBRA Track
    Cleat. ICE COBRA Track
