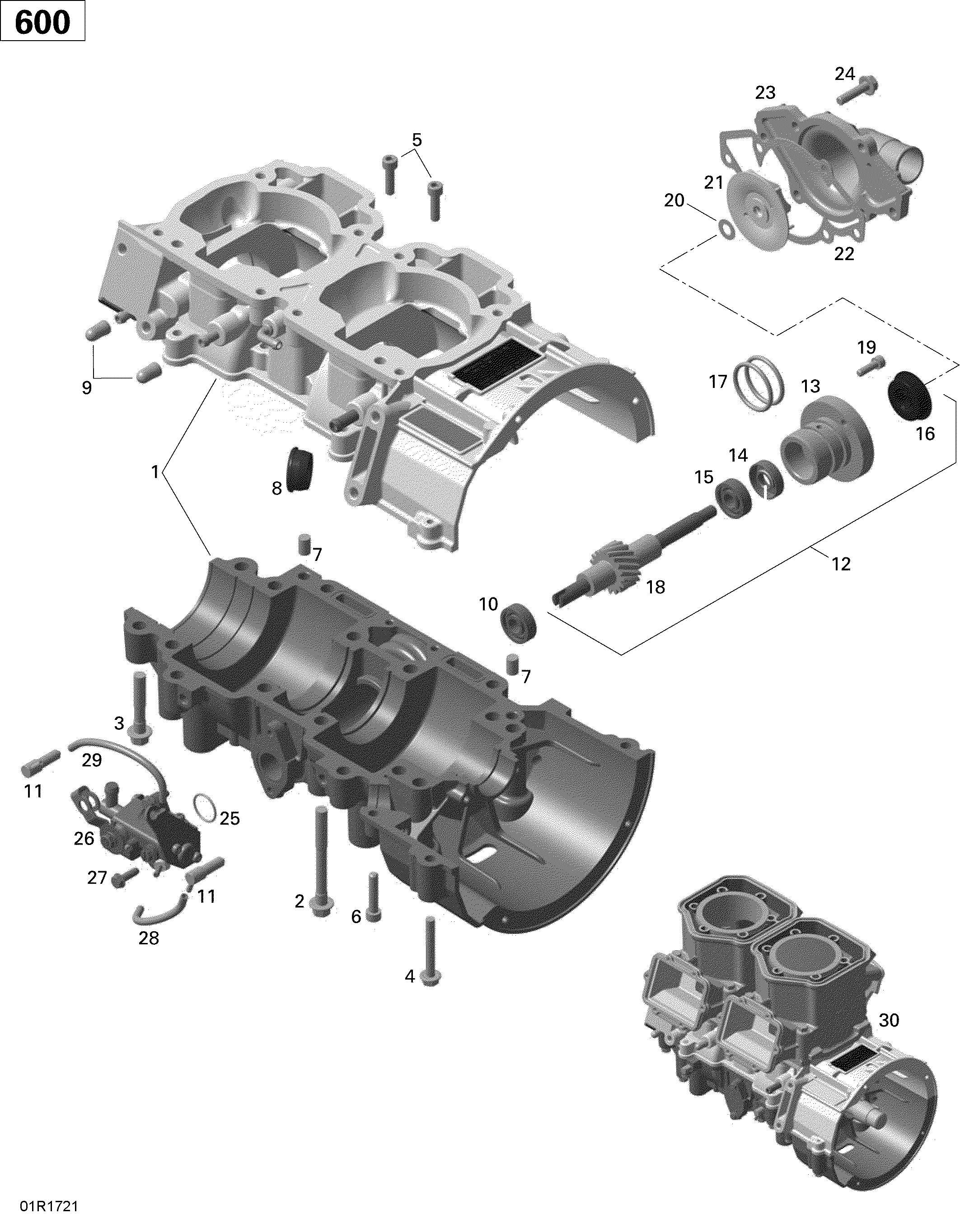

01- Crankcase, Water Pump and Oil Pump - 600 CARB для BRP Ski-Doo 1- RENEGADE 600 CARB - 2018
-
№АртикулНазвание
-
1420892241 Crankcase Ass'y. Includes 1 to 11Crankcase Ass'y. Includes 1 to 11
-
2420640836 Hex. Collar Screw M8 X 75Hex. Collar Screw M8 X 75
-
3420640431 Hex. Collar Screw M8 X 45Hex. Collar Screw M8 X 45
-
4420640311 Hex. Collar Screw M6 X 45Hex. Collar Screw M6 X 45
-
5420840401 Socket Head Screw M6 X 22Socket Head Screw M6 X 22
-
6205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
7420632010 Center Pin 8 X 12Center Pin 8 X 12
-
8420860965 Cable GrommetCable Grommet
-
9420960770 CapCap
-
10420232100 Ball BearingBall Bearing
-
11420956510 Check ValveCheck Valve
-
12420837421 Water Pump/Oil Pump Ass'y. Includes 12 to 18Water Pump/Oil Pump Ass'y. Includes 12 to 18
-
14420230195 Oil SealOil Seal
-
15420232100 Ball BearingBall Bearing
-
16420650370 Rotary SealRotary Seal
-
17420950890 O-RingO-Ring
-
19420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
20420227945 WasherWasher
-
21420222505 Water ImpellerWater Impeller
-
22420931810 GasketGasket
-
23420922630 Water Pump HousingWater Pump Housing
-
24420240034 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
25293300041 O-RingO-Ring
-
26420888780 Oil Pump Ass'yOil Pump Ass'y
-
27420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
28414413800 Oil HoseOil Hose
-
29414413800 Oil HoseOil Hose
-
30420059312 Short Block 593Short Block 593
