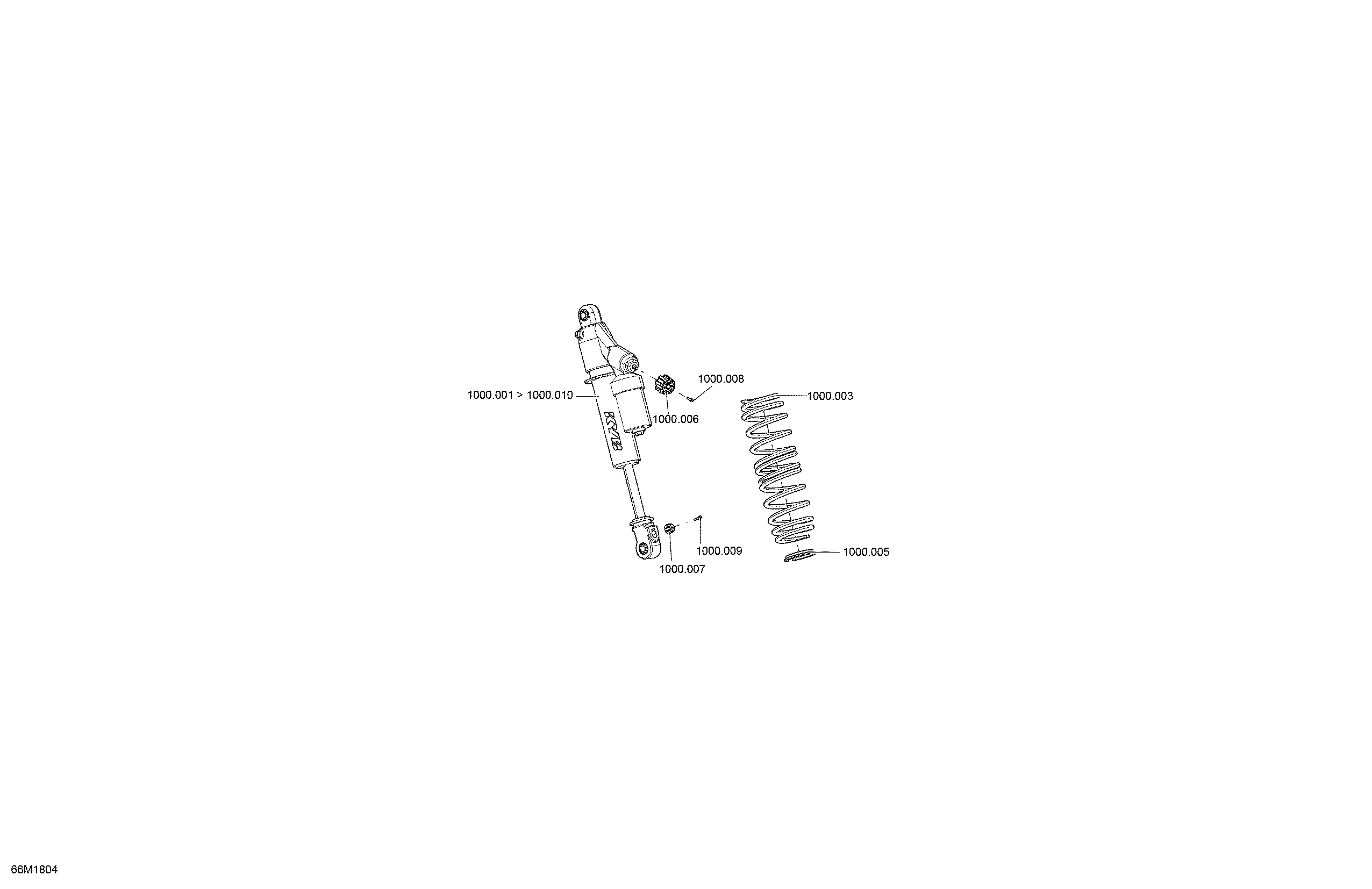

07- Front Shocks MXZ - 1200 4-TEC - Package X для BRP Ski-Doo 6- MXZ 1200 4-TEC - 2018
-
№АртикулНазвание
-
1000.001505073702 Front ShockFront Shock
-
1000.002414888312 O-RingO-Ring
-
1000.003505072761 Deep Black SpringDeep Black Spring
-
1000.004503189308 Piston RingPiston Ring
-
1000.005503194270 Spring StopperSpring Stopper
-
1000.006505070398 Air ValveAir Valve
-
1000.007505072753 Adjustment KnobAdjustment Knob
-
1000.008505070399 ScrewScrew
-
1000.009250000644 Allen Screw M3 X 10Allen Screw M3 X 10
-
1000.01505070400 O-RingO-Ring
