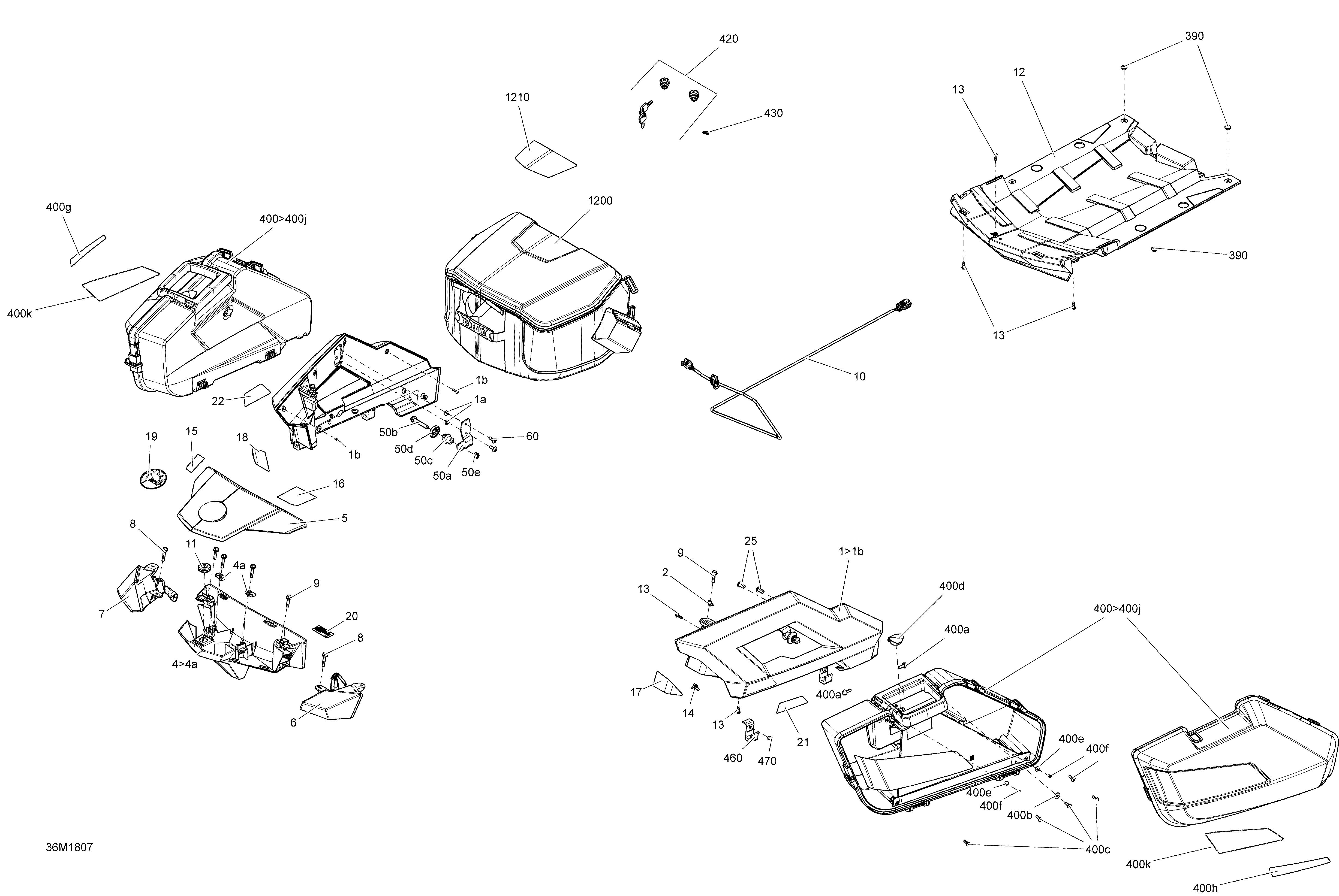

09- Luggage Rack MXZ, Renegade - 600 ACE для BRP Ski-Doo 3- MXZ 600 ACE - 2018
-
№АртикулНазвание
-
10511000757 TrunkTrunk
-
20511000528 BracketBracket
-
200511000568 Deep Black Trunk CoverDeep Black Trunk Cover
-
370511000590 Radiator Cover, 137''. Vehicle 137''Radiator Cover, 137''. Vehicle 137''
-
370511000591 Radiator Cover, 120''. Vehicle 120''Radiator Cover, 120''. Vehicle 120''
-
380293150103 Black Pop Rivet 3/16''. Vehicle 120''Black Pop Rivet 3/16''. Vehicle 120''
-
380293150103 Black Pop Rivet 3/16''. Vehicle 137''Black Pop Rivet 3/16''. Vehicle 137''
