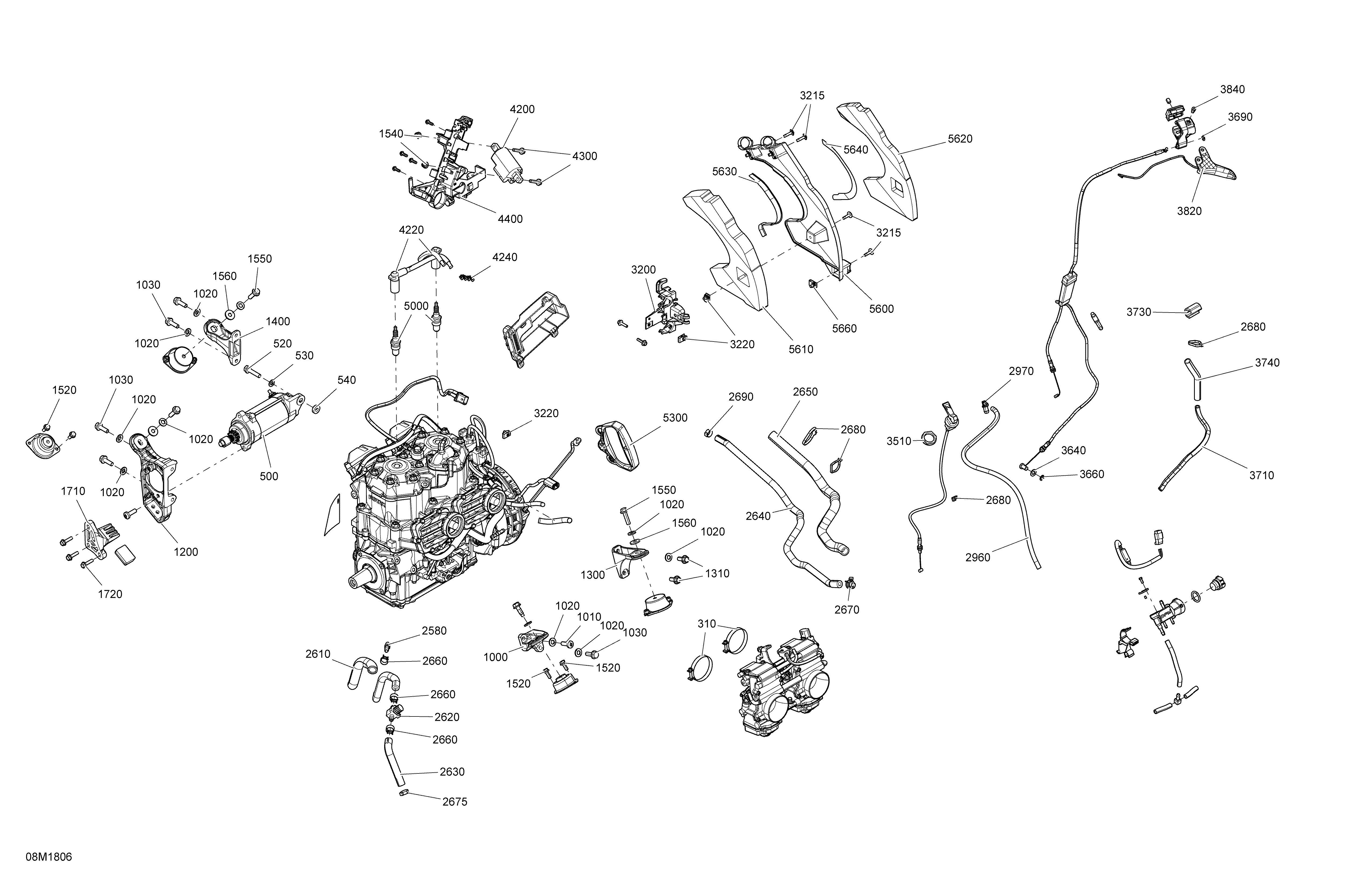

01- Engine MXZ, Renegade - 600 CARB для BRP Ski-Doo 1- MXZ 600 CARB - 2018
-
№АртикулНазвание
-
160415079900 Tubing 10 mmTubing 10 mm
-
220420924724 Hose NippleHose Nipple
-
300403138815 Carburetor Kit, TM40-B418Carburetor Kit, TM40-B418
-
310512059835 Gemi ClampGemi Clamp
-
500515177389 StarterStarter
-
510250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
520207583544 Hex Flanged Screw M8 X 35, Scotch GripHex Flanged Screw M8 X 35, Scotch Grip
-
530250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
540515176500 WasherWasher
-
1000512060478 Rear Support, PTORear Support, PTO
-
1010250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
1020250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1030207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
1200512060699 Front Support, PTOFront Support, PTO
-
1300512060559 Rear Support, MAGRear Support, MAG
-
1310207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
1400512060469 Front Support, MAGFront Support, MAG
-
1500512060729 Rubber MountRubber Mount
-
1510512060387 Rubber MountRubber Mount
-
1515512060448 Rubber MountRubber Mount
-
1520207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
1540233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1550207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
1560503183200 Washer, YellowWasher, Yellow
-
1580250000796 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
1700512060627 StopperStopper
-
1710512060576 Stopper SupportStopper Support
-
1720207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
2580512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
2600512060355 Hose FormedHose Formed
-
2610415080000 Tubing 16 mmTubing 16 mm
-
2620512059324 Valve 5/16''Valve 5/16''
-
2630512060353 Hose FormedHose Formed
-
2640512060347 Hose FormedHose Formed
-
2650415080000 Tubing 16 mmTubing 16 mm
-
2660414655700 Spring ClampSpring Clamp
-
2670293650214 Norma Spring ClampNorma Spring Clamp
-
2675293650125 Oetiker ClampOetiker Clamp
-
2680414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2690293650046 Oetiker ClampOetiker Clamp
-
2710293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2950572045500 T-FittingT-Fitting
-
2960415080200 Hose, PolyurethaneHose, Polyurethane
-
2970414580700 Male ConnectorMale Connector
-
3200512060298 Solenoid SupportSolenoid Support
-
3215250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3220250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3500512060672 Choke CableChoke Cable
-
3510512060671 Plastic NutPlastic Nut
-
3600512060886 Throttle CableThrottle Cable
-
3640234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
3660414753500 CirclipCirclip
-
3690414274500 CirclipCirclip
-
3710515175442 Tubing 6 mmTubing 6 mm
-
3730512060313 ProtectorProtector
-
3740415079900 Tubing 10 mmTubing 10 mm
-
3800512060859 Upper HousingUpper Housing
-
3810512060860 Lower HousingLower Housing
-
3820512061252 Throttle Handle Ass'yThrottle Handle Ass'y
-
3840732601143 Flanged ScrewFlanged Screw
-
4200512059968 Ignition CoilIgnition Coil
-
4220512060291 CableCable
-
4240410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
4300207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
4400512060924 Coils SupportCoils Support
-
4410241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
4600512060680 Calibrated Module, 600Calibrated Module, 600
-
5000415128524 Spark Plug, NGK BR9ECS, 0.8 mmSpark Plug, NGK BR9ECS, 0.8 mm
-
5300512060136 Starter GripStarter Grip
-
5600512060338 Noise ShieldNoise Shield
-
5610512060341 Inner Noise FoamInner Noise Foam
-
5620512060342 Outer Noise FoamOuter Noise Foam
-
5630512060574 Heat ShieldHeat Shield
-
5640512060575 Heat ShieldHeat Shield
-
5660250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
