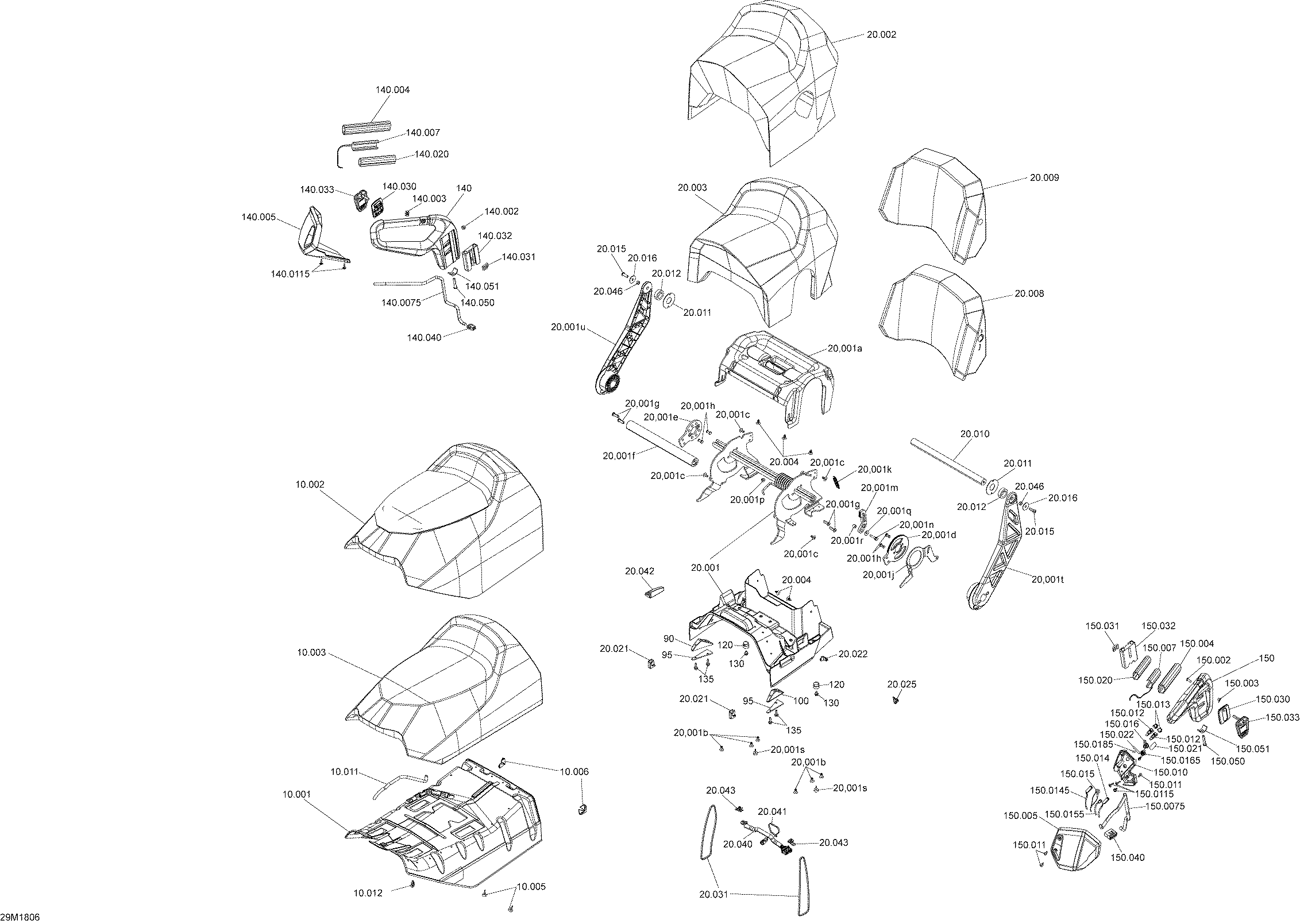

09- Seat Grand Touring LE для BRP Ski-Doo 4- GRAND TOURING 1200 4-TEC - 2018
-
№АртикулНазвание
-
10.001510004775 Front Seat BaseFront Seat Base
-
10.002510005685 Front Seat CoverFront Seat Cover
-
10.003510004777 Front Seat FoamFront Seat Foam
-
10.005708000759 Rubber StopperRubber Stopper
-
10.006510004963 Seat Corner, BlackSeat Corner, Black
-
20.001510005688 Seat Base Ass'y. Includes 20,001 to 20,001uSeat Base Ass'y. Includes 20,001 to 20,001u
-
20,001a510004423 Foam SupportFoam Support
-
20,001b293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20,001c293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
20,001d510004391 SprocketSprocket
-
20,001e510005568 Link PlateLink Plate
-
20,001f510005496 Link TubeLink Tube
-
20,001g205982586 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
20,001h293150129 Steel RivetSteel Rivet
-
20,001j510004385 Handle, BlackHandle, Black
-
20,001k514053643 SpringSpring
-
20,001m510006338 Adjustment PivotAdjustment Pivot
-
20,001n207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
20,001p233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20,001q224061201 Flat WasherFlat Washer
-
20,001r510004425 BushingBushing
-
20,001s708000759 Rubber StopperRubber Stopper
-
20,001t510005465 LH ArmLH Arm
-
20,001u510005464 RH ArmRH Arm
-
20.002510005694 Rear Seat CoverRear Seat Cover
-
20.003510004791 Rear Seat FoamRear Seat Foam
-
20.004414644300 DartDart
-
20.008510004782 Backrest FoamBackrest Foam
-
20.009510005353 Backrest CoverBackrest Cover
-
20.01510004377 Upper Backrest AxleUpper Backrest Axle
-
20.011510004379 WasherWasher
-
20.012510004378 Rubber ShimRubber Shim
-
20.015250000745 Hex Torx Truss M8 X30Hex Torx Truss M8 X30
-
20.016250200128 Flat Washer 8 mmFlat Washer 8 mm
-
20.021510004963 Seat Corner, BlackSeat Corner, Black
-
20.022510004964 RH Rear Corner SeatRH Rear Corner Seat
-
20.025510004965 LH Rear Corner SeatLH Rear Corner Seat
-
20.031293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
20.04515176766 Seat HarnessSeat Harness
-
20.041414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
20.042510004419 GripGrip
-
20.043515175283 Housing SupportHousing Support
-
20.046271000558 SpacerSpacer
-
90518325710 RH Seat AnchorRH Seat Anchor
-
95510005216 SpacerSpacer
-
100518325709 LH Seat AnchorLH Seat Anchor
-
120510005095 Seat StudSeat Stud
-
130207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
135207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
140510005854 RH Handle Ass'y. Includes 140 to 140,051RH Handle Ass'y. Includes 140 to 140,051
-
140.002250000721 Torx ScrewTorx Screw
-
140.003293100003 Nut M6Nut M6
-
140.004510004449 Handle GripHandle Grip
-
140.005510005009 RH Air DeflectorRH Air Deflector
-
140.007515176999 Heated ElementHeated Element
-
140.0075515175506 TubingTubing
-
140.0115250000725 Screw M4 X 16Screw M4 X 16
-
140.02510005814 Reinforcement HandleReinforcement Handle
-
140.03510004405 MouldingMoulding
-
140.031510004804 Stopper BlockStopper Block
-
140.032510004798 Handle LinkHandle Link
-
140.033510004806 Lever Lock Ass'yLever Lock Ass'y
-
140.04515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
140.05250000220 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
140.051510004565 Handle ClampHandle Clamp
-
150510005853 LH Handle Ass'y. Includes 150 to 150,051LH Handle Ass'y. Includes 150 to 150,051
-
150.002250000721 Torx ScrewTorx Screw
-
150.003293100003 Nut M6Nut M6
-
150.004510004449 Handle GripHandle Grip
-
150.005510005010 LH Air DeflectorLH Air Deflector
-
150.007515176999 Heated ElementHeated Element
-
150.0075515175506 TubingTubing
-
150.01510005036 Housing SwitchHousing Switch
-
150.011250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
150.0115250000725 Screw M4 X 16Screw M4 X 16
-
150.012510004413 Rocker SwitchRocker Switch
-
150.013510004414 Switch ProtectorSwitch Protector
-
150.014515176697 Handle HarnessHandle Harness
-
150.015515176698 Visor Connector HarnessVisor Connector Harness
-
150.0155515177018 Heated Liner HarnessHeated Liner Harness
-
150.016572103300 CapCap
-
150.0165510004950 CapCap
-
150.02510005814 Reinforcement HandleReinforcement Handle
-
150.021516003612 Visor and Liner DecalVisor and Liner Decal
-
150.022516003816 Heated Handle DecalHeated Handle Decal
-
150.03510004405 MouldingMoulding
-
150.031510004804 Stopper BlockStopper Block
-
150.032510004798 Handle LinkHandle Link
-
150.033510004806 Lever Lock Ass'yLever Lock Ass'y
-
150.04515176033 Male ConnectorMale Connector
-
150.05250000220 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
150.051510004565 Handle ClampHandle Clamp
