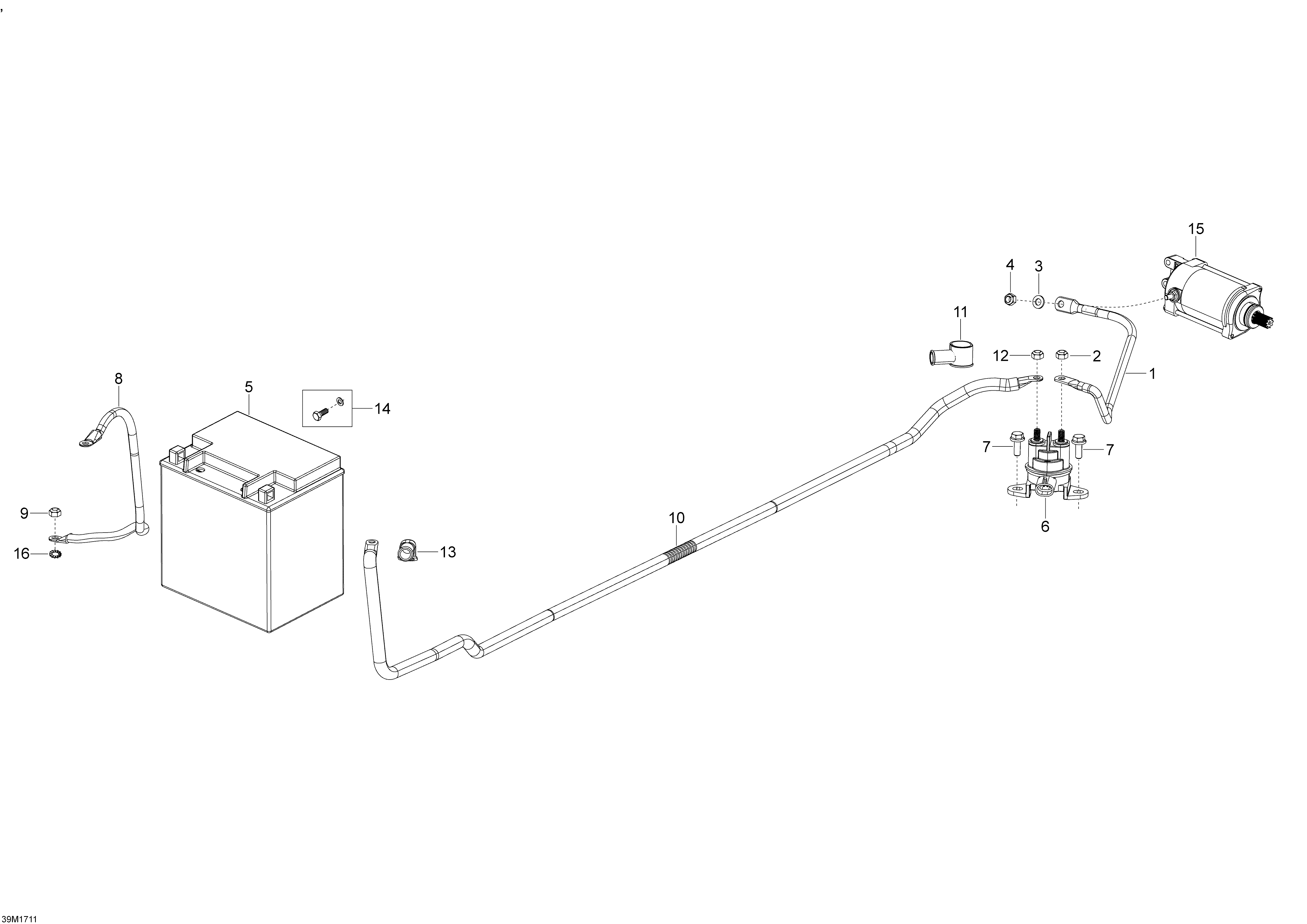

10- Battery And Starter 2018 для BRP Ski-Doo 8- EXPEDITION SWT 900 ACE - 2018
-
№АртикулНазвание
-
1515176945 Battery Wire. Engine 900 ACEBattery Wire. Engine 900 ACE
-
1515176779 Start cable 1000 mm.. Engine 1200 4-TECStart cable 1000 mm.. Engine 1200 4-TEC
-
2232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
3234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5415129898 Lead Battery 18 Amperes. Model LELead Battery 18 Amperes. Model LE
-
5515176151 Battery. Model SEBattery. Model SE
-
6278003012 Starter RelayStarter Relay
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8515176777 Ground WireGround Wire
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10515176778 Battery WireBattery Wire
-
11570151000 Protection Cap. Engine 900 ACEProtection Cap. Engine 900 ACE
-
12232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
13710000495 Protector Cap. Engine 900 ACEProtector Cap. Engine 900 ACE
-
13710000495 Protector Cap. Engine 1200 4-TECProtector Cap. Engine 1200 4-TEC
-
14250000282 Battery Bolt KitBattery Bolt Kit
-
15420892429 Starter Ass'yStarter Ass'y
-
16250200041 Lock Washer Serrated M6Lock Washer Serrated M6
