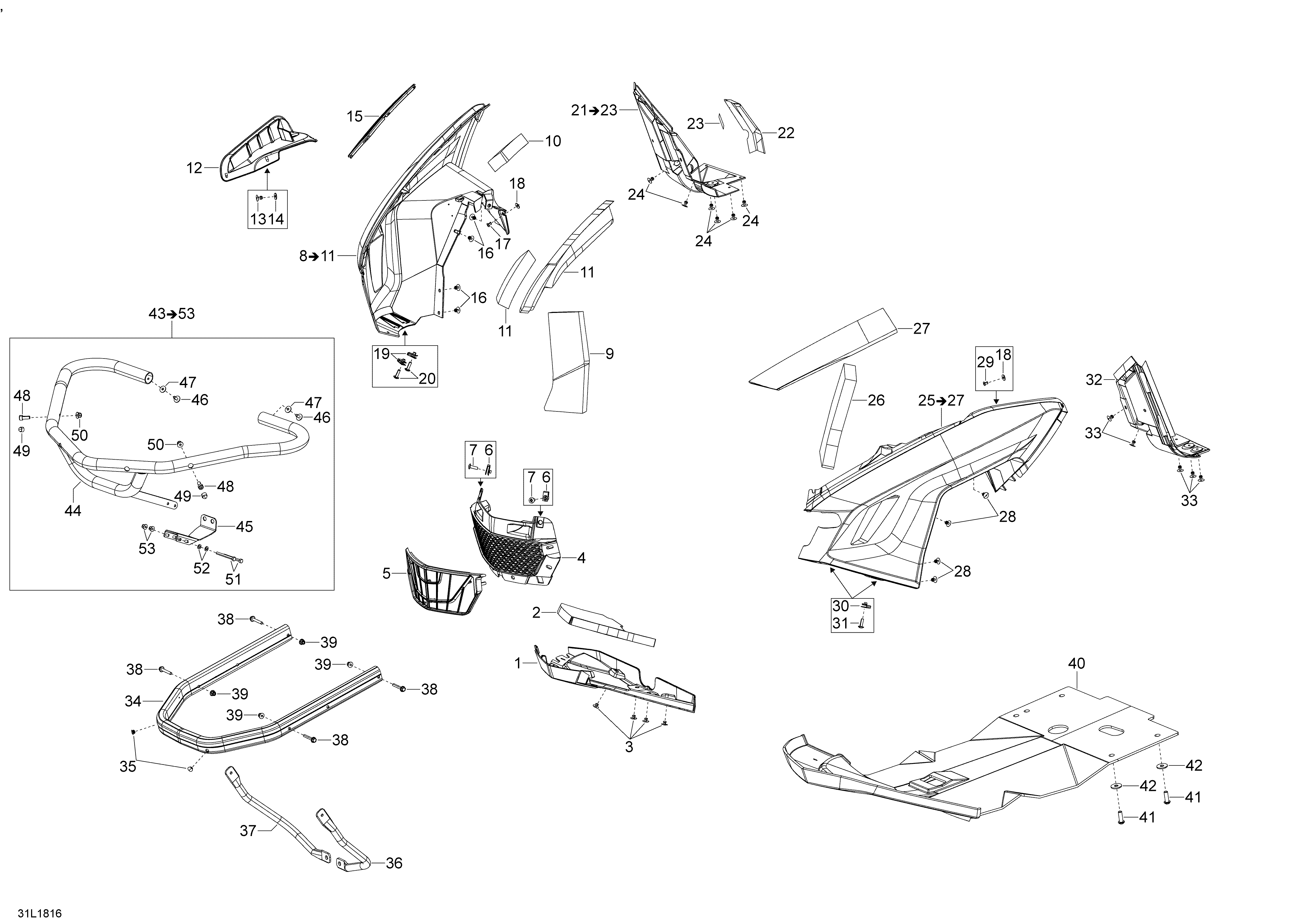

09- Bottom Pan Expedition - 800R E-TEC для BRP Ski-Doo 6- EXPEDITION XTREME 800R E-TEC - 2018
-
№АртикулНазвание
-
1502007184 Black Bottom Pan FrontBlack Bottom Pan Front
-
2502007002 InsulatorInsulator
-
3293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
4502007145 GrillGrill
-
5502007393 Front Grill With MeshFront Grill With Mesh
-
6250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
7250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
8502007520 Black Bottom Pan Ass'y, RH. Includes 8 to 11Black Bottom Pan Ass'y, RH. Includes 8 to 11
-
9502007526 InsulatorInsulator
-
11517305977 InsulatorInsulator
-
12517306541 Bottom Pan Air Vent Rh.Bottom Pan Air Vent Rh.
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14250200025 Washer M5Washer M5
-
15517305976 Bottom Pan Grill RHBottom Pan Grill RH
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
17390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
18234052450 Flat WasherFlat Washer
-
19250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
20250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
21502007823 Bottom Pan Rear Ass'y Rh. Includes 21 to 23Bottom Pan Rear Ass'y Rh. Includes 21 to 23
-
22502007038 Aluminium FoilAluminium Foil
-
2344110 Aluminum foilAluminum foil
-
24293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
25502007665 Black LH Bottom Pan Ass?y. Includes 25 to 27Black LH Bottom Pan Ass?y. Includes 25 to 27
-
26502007003 InsulatorInsulator
-
27502007185 InsulatorInsulator
-
28293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
29390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
31250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
32502007827 Bottom Pan Rear, LhBottom Pan Rear, Lh
-
33293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
34502007685 Black Anod. BumperBlack Anod. Bumper
-
35293730047 Black Dart 8 mmBlack Dart 8 mm
-
36502007014 LH Bumper SupportLH Bumper Support
-
37502007015 RH Bumper SupportRH Bumper Support
-
38207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
39233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
