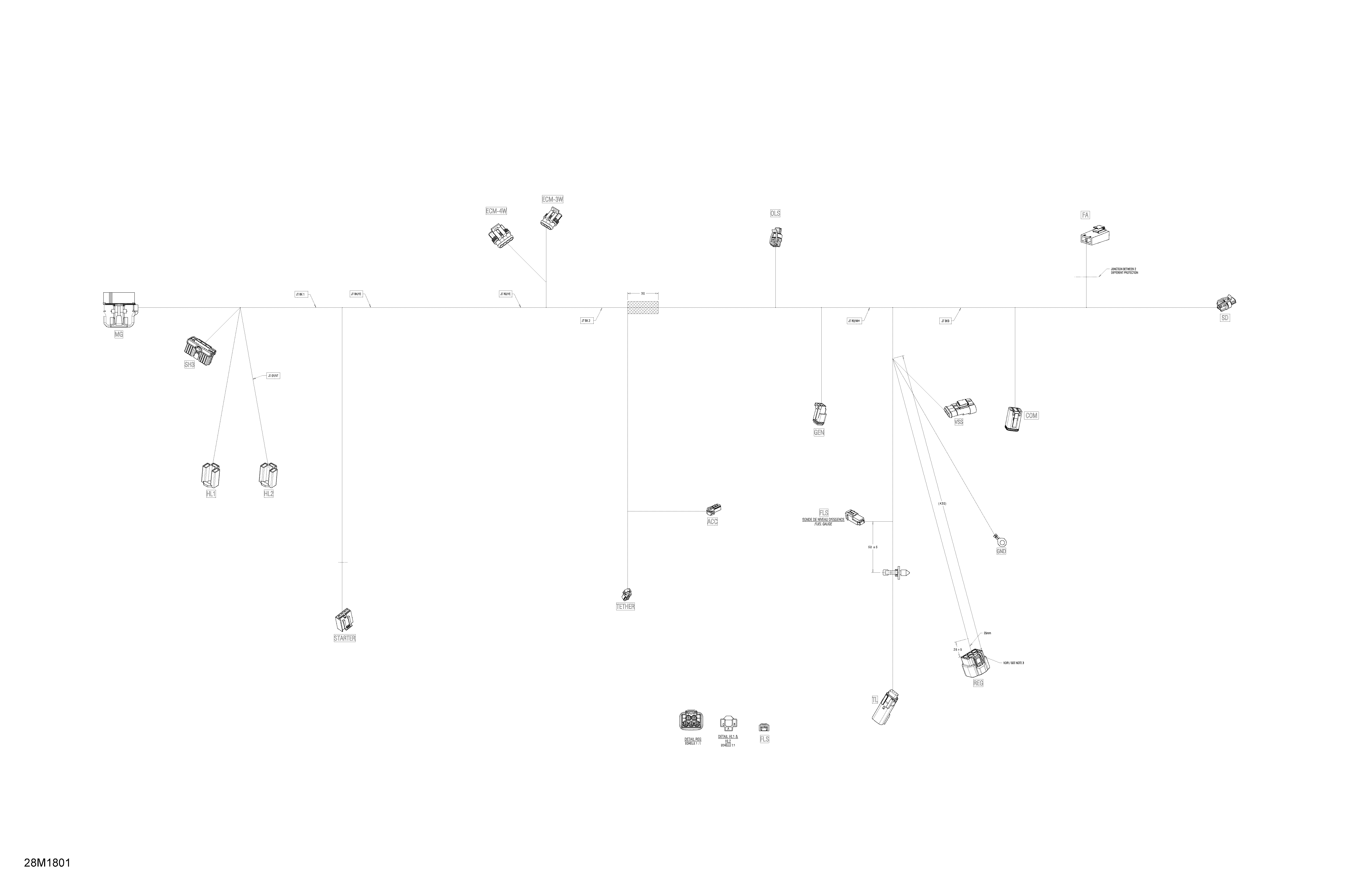

10- Main Harness - 515177979 для BRP Ski-Doo 1- EXPEDITION SPORT 550F - 2018
-
№АртикулНазвание
-
3000515177979 Main Harness. Includes 3000 to 3000,055Main Harness. Includes 3000 to 3000,055
-
ACC515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
ACC515175231 Female TerminalFemale Terminal
-
COM278002896 Housing, 6 CircuitsHousing, 6 Circuits
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COM293000052 Sealing CapSealing Cap
-
COM278000632 Female TerminalFemale Terminal
-
COM278001665 Female TerminalFemale Terminal
-
ECM-3W409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
ECM-3W278001013 Wire SealWire Seal
-
ECM-3W278001014 Female TerminalFemale Terminal
-
ECM-4W409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
ECM-4W515176621 Wire SealWire Seal
-
ECM-4W710001340 Female TerminalFemale Terminal
-
FA710000992 ClipClip
-
FA409004000 Fuse HolderFuse Holder
-
FA409004200 Female TerminalFemale Terminal
-
FLS515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
FLS515175232 Male TerminalMale Terminal
-
GEN515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
GEN515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
GEN278000632 Female TerminalFemale Terminal
-
GND278000992 Open BarrelOpen Barrel
-
HL1515177663 Female HousingFemale Housing
-
HL1515176909 TerminalTerminal
-
HL2515177663 Female HousingFemale Housing
-
HL2515176909 TerminalTerminal
-
MG515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
MG515175802 Retainer BlockRetainer Block
-
MG515175812 PlugPlug
-
MG710000399 Female HousingFemale Housing
-
MG515175803 Wire SealWire Seal
-
MG710001131 Female TerminalFemale Terminal
-
OLS515177192 Female HousingFemale Housing
-
OLS710001163 Wire SealWire Seal
-
OLS710001164 Female TerminalFemale Terminal
-
REG515176530 ConnectorConnector
-
REG515176594 SealSeal
-
REG515176531 TerminalTerminal
-
SD515177192 Female HousingFemale Housing
-
SD710001332 Seal WireSeal Wire
-
SD710000925 TerminalTerminal
-
SH3515175350 Female Terminal Housing, 13 CircuitsFemale Terminal Housing, 13 Circuits
-
SH3515175231 Female TerminalFemale Terminal
-
SH3515175282 Female TerminalFemale Terminal
-
STARTER710000272 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
STARTER710000273 Lock, 4 CircuitsLock, 4 Circuits
-
STARTER710000274 Female TerminalFemale Terminal
-
TETHER515176296 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
TETHER515175231 Female TerminalFemale Terminal
-
TL515178023 HousingHousing
-
TL515178013 Male TerminalMale Terminal
-
VSS710000992 ClipClip
-
VSS710000568 HousingHousing
-
VSS515176621 Wire SealWire Seal
-
VSS515176164 Male TerminalMale Terminal
